• Model NO.：XCT20L5
• Min. Turning Diameter：20m
• Min. Ground Clearance：261mm
• Max. Lifting Height：48.3m
• Transport Package：Comply with Export Packaging Requirements
• Specification：12262*2500*3410mm
• Trademark：XCMG
• Origin：Xuzhou, Jiangsu, China
• HS Code：8705109100
• Production Capacity：10000 Units,Year

CategoryItemUnitParameterOutline DimensionsOverall lengthmm12262Overall widthmm2500Overall heightmm3410Wheel baseAxles 1 and 244254425Axles 2 and 313501350TrackmmHande 2027/1834Meritor 2055 /1834WeightDead weight in travel configurationkg29400Axle loadAxle 164506400Axles 2 and 31957023000TravelTravel speedMax. travel speedkm/h80/85Min. stable travel speedkm/h2~3Min. turning diameterm20Min. ground clearancemm261Departure angle°13Braking distance (at 30 km/h)m≤10Max. grade ability%42/47(China National IV)42 (China National V)Oil consumption per 100 km (theoretical)L33

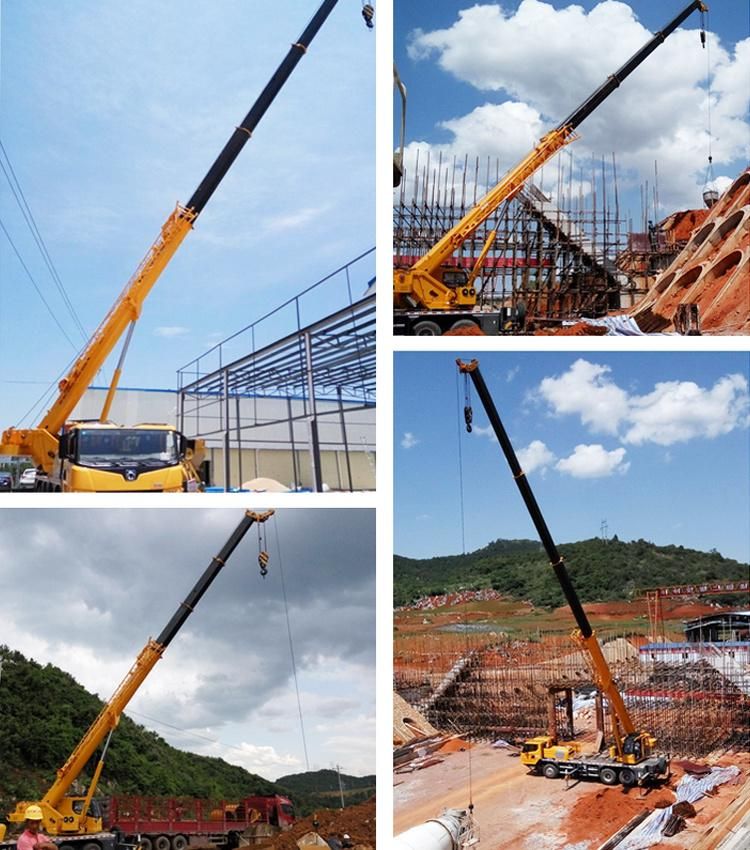

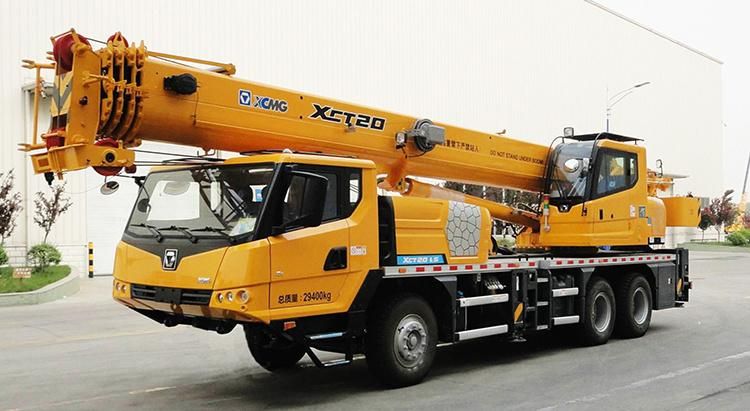

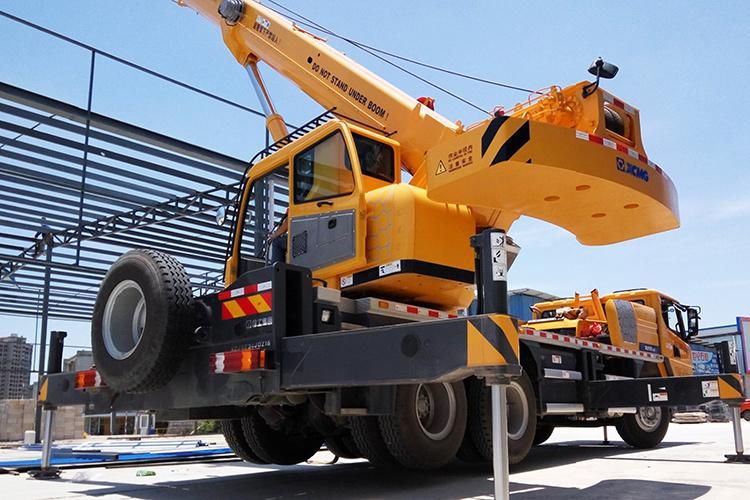

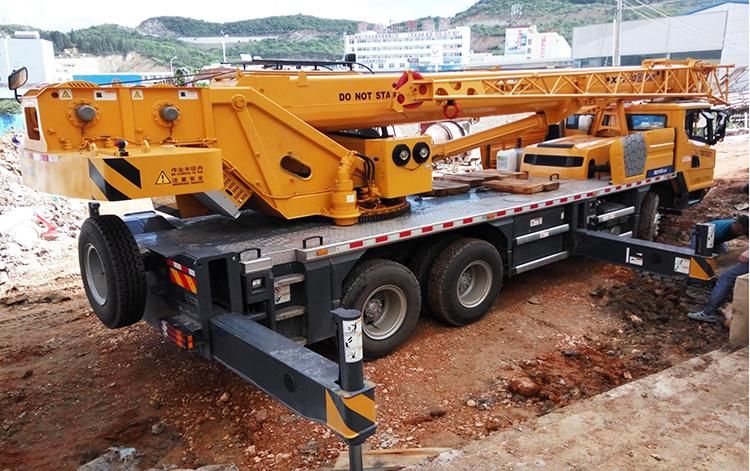

[Product Picture]





[Company Information]







[FAQ]
1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted.
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC.
3: What about the delivery time?
A: 7-30 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.
