Chinese Good Brand Sq6.3zk3q Truck Mounted Crane
Acntruck Automobile Sales (Shanghai) Co., Ltd.- Certification:CE, ISO9001
- Condition:New
- Maximum Lifting Height:10-15m
- Maximum Lifting Weight:5-7t
- Shaft Number:2
- Crane Jib:Three-Arm
Base Info
- Model NO.:SQ6.3ZK3Q
- Type:Folding
- Max Lifting Capacity:10000kg
- Max Oil Flow of Hydraulic System:25L,Min
- Max Lifting Moment:13.23,13.2t.M
- Crance Weight:2115,2226 Kg
- Boom Length:2.1-8.01,2.1-9.9 M
- Recommend Power:18 Kw
- Pressure of Hydraulic System:28 MPa
- Transport Package:Nude
- Specification:4365*2430*3017mm
- Trademark:China
- Origin:Jiangsu, China
- HS Code:8501101000
- Production Capacity:100units,Week
Description
Basic Info.
Model NO. SQ6.3ZK3Q Type Folding Max Lifting Capacity 10000kg Max Oil Flow of Hydraulic System 25L/Min Max Lifting Moment 13.23/13.2t.M Crance Weight 2115/2226 Kg Boom Length 2.1-8.01/2.1-9.9 M Recommend Power 18 Kw Pressure of Hydraulic System 28 MPa Transport Package Nude Specification 4365*2430*3017mm Trademark China Origin Jiangsu, China HS Code 8501101000 Production Capacity 100units/WeekProduct Description
Chinese Knuckle Boom Crane sq6.3zk2q/sq6.3zk3qProduct Description:
Safety
Have multiple job safety protection measures Complies with CE, GOST and other safety requirements
Environmental protection
Optimized structural design for lighter weight,Optimized hydraulic system with less energy consumption
Reliable
High-strength materials are widely used Multiple protection of the control system;Strict factory test
Leading
Advanced product design Increasing the level of technology;High level of manufacturing capacity
Folding arm type truck crane operating system
On the train and get off the use of a separate operation of the valve, the use of rotary valve to select the oil, on and off interlock, effectively reducing the risk of misuse. In addition to the car to operate the seat arrangement of the turntable side, with the turntable infinite rotation, with better control of the field of vision.
On the train and get off together to use a control valve, the crane on the standing control, simple and convenient operation process, with a better vision, the operation can directly see the situation inside the container.
Product features:
1, advanced R & D and analysis means to ensure design reliability.
2, four-link mechanism, lifting capacity stronger.
3, flange telescopic arm connection structure.
4, independent research and development of the rotating body, with a strong driving force, may meet more demand conditions.
5, hexagonal boom technology, good for neutral, cross-section bending ability.
6, the unique floating three-point bridge structure design, effectively reduce the vehicle running when the chassis beam bear the additional force.
Product Specification:
Item | Unit | SQ6.3ZK2Q/SQ6.3ZK3Q |
Max Lifting Capacity | kg | 6300 |
Max Lifting Moment | t.m | 13.23/13.2 |
Recommend Power | kw | 18 |
Max Oil Flow of Hydraulic System | L/min | 25 |
Max Pressure of Hydraulic System | Mpa | 28 |
Oil Tank Capacity | L | 90 |
Crance Weight | kg | 2115/2226 |
Installation Space | mm | 1050 |
Rotation Angle | ° | 360 |
Boom Length | m | 2.1-8.01/2.1-9.9 |

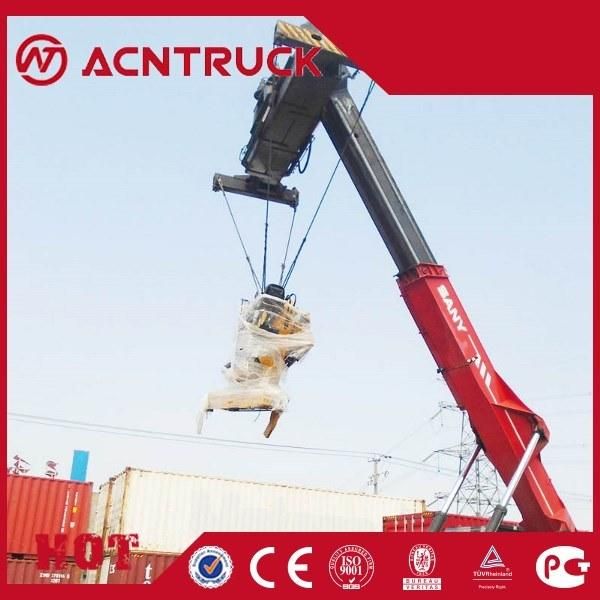

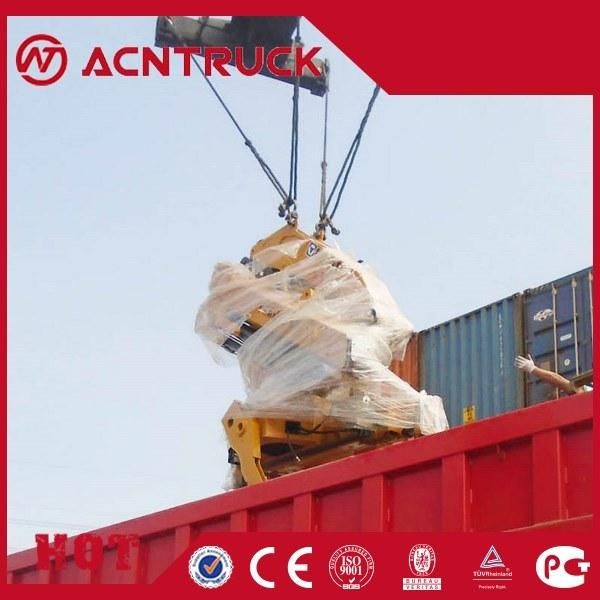

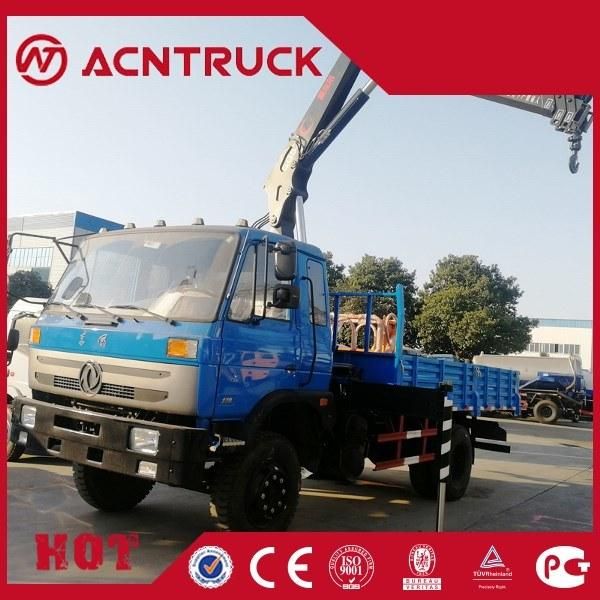

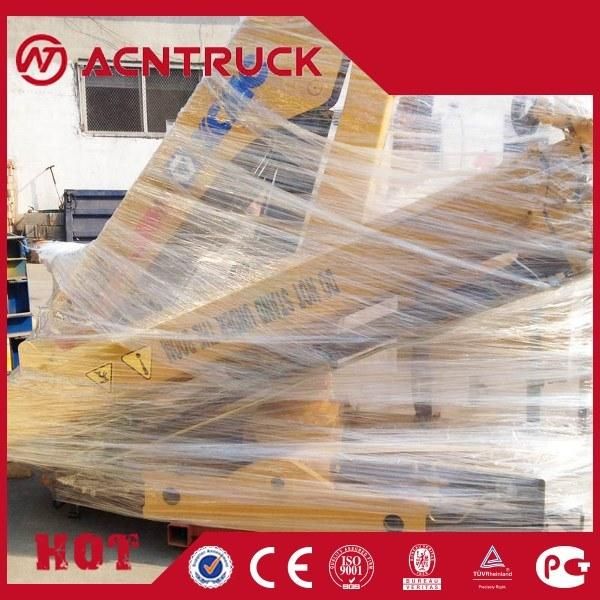

Pictures:
