New Telescopic Boom Truck Mounted Crane Sps5000
Newindu Construction Engineering (Shanghai) Co., Ltd.- Certification：CE, ISO9001
- Condition：New
- Maximum Lifting Height：20-25m
- Maximum Lifting Weight：>16t
- Shaft Number：2
- Crane Jib：Five-Arm
Base Info
- Model NO.：SPS5000
- Type：Straight Arm
- Power：18 Kw
- Rated Lifting Moment：12.5 T.M
- Installation Space：1000 mm
- Rated Loading Capacity：10ton
- Transport Package：Comply with Export Packaging Requirements
- Specification：7990*2496*3311 mm
- Trademark：Newindu
- Origin：Hunan, China (Mainland)
- HS Code：84295100
- Production Capacity：500 Sets,Month
Description
Item
Parameters
Unit
Capacity
Max. lifting capacity
10
t
Dimensions
Overall length
7990
mm
Overall width
2496
mm
Overall height
3311
mm
Axles
2
Axle distance-1,2
4600
mm
Axle distance-2,3
--
mm
Weight
Overall weight
20000
kg
Front axle load
7000
kg
Rear axle load
13000
kg
Engine
Model
D10.28-40
Rated power
204
kW
Rated torque
1190
Nm
Emissions
EURO IV
Traveling
Max. traveling speed
102
km/h
Approach angle
16
°
Departure angle
26
°
Max. gradeability
30
%
Main Performance
Rated lifting moment
75.0
kN.m
Max.outreach
9.6
m
Slewing torque
9.0(0.9)
kN.m(mt)
Slewing angle(continuous)
400
°
Operating pressure
31.5(315)
Mpa(bar)
Pump capacity
25-35
l/min
Air conditioner
HVAC in low cab
Cooling / Heating

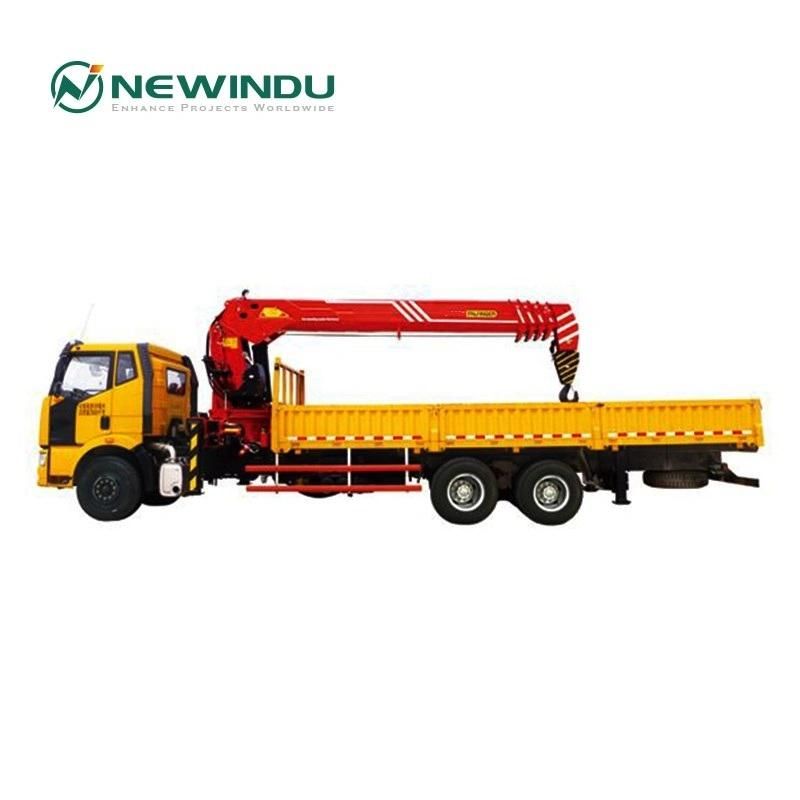

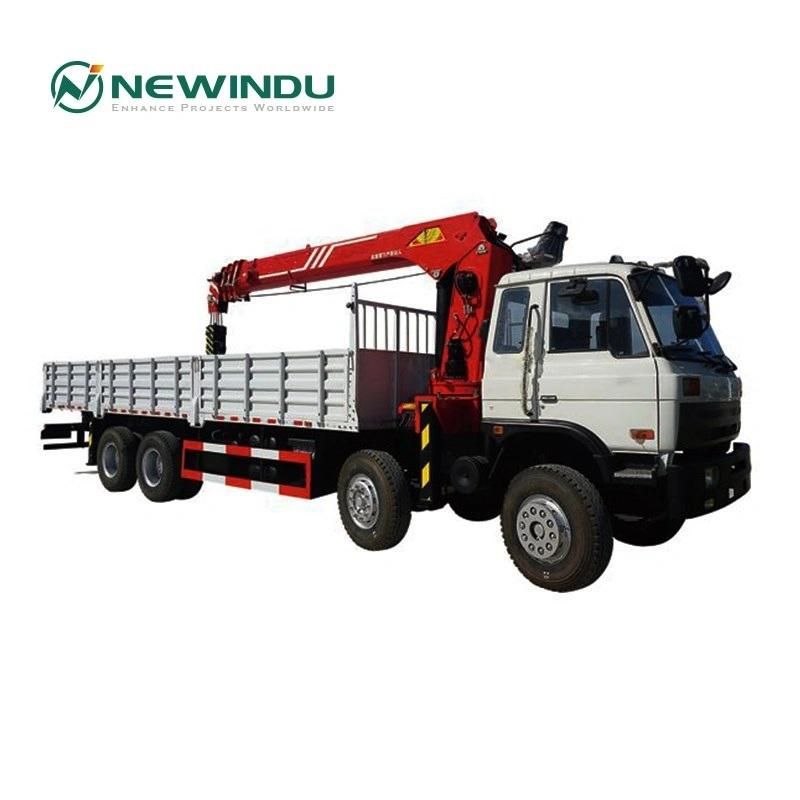

Photos for Reference
