• Model NO.：SPS50000,SINOTRUCK
• Type：Straight Arm
• Product：Truck Crane Hydraulic Mobile Truck Crane Qy50ka
• Transport Package：Roro or Bulk Package, Suitable for Ocean Shipment
• Specification：EU 3
• Trademark：TOP BRAND
• Origin：China
• HS Code：8426990000
• Production Capacity：1000,Month

Basic Info.

Model NO. SPS50000/SINOTRUCK Type Straight Arm Product Truck Crane Hydraulic Mobile Truck Crane Qy50ka Transport Package Roro or Bulk Package, Suitable for Ocean Shipment Specification EU 3 Trademark TOP BRAND Origin China HS Code 8426990000 Production Capacity 1000/Month

Product Description

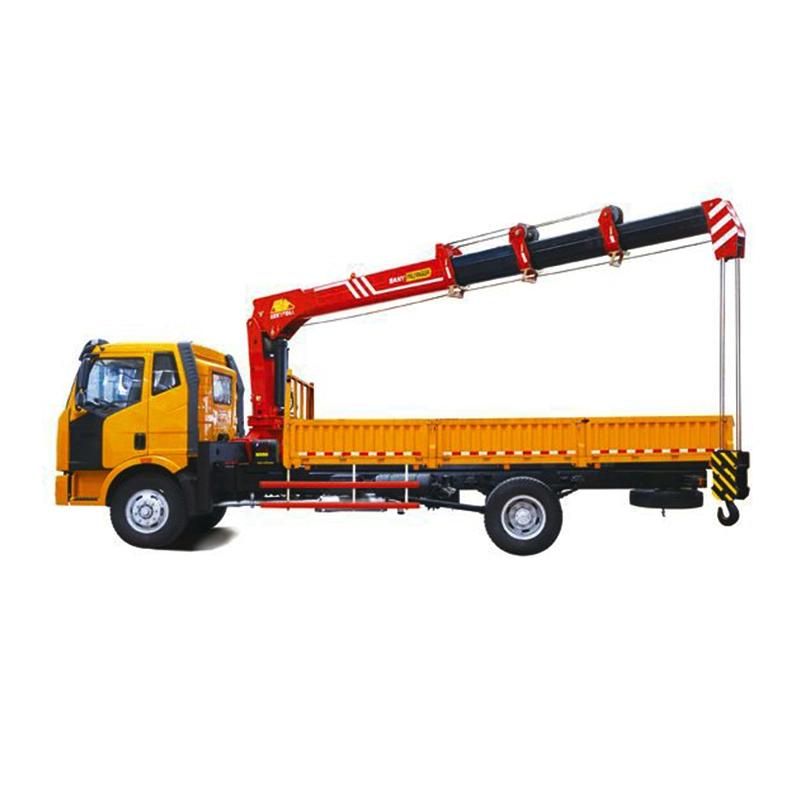

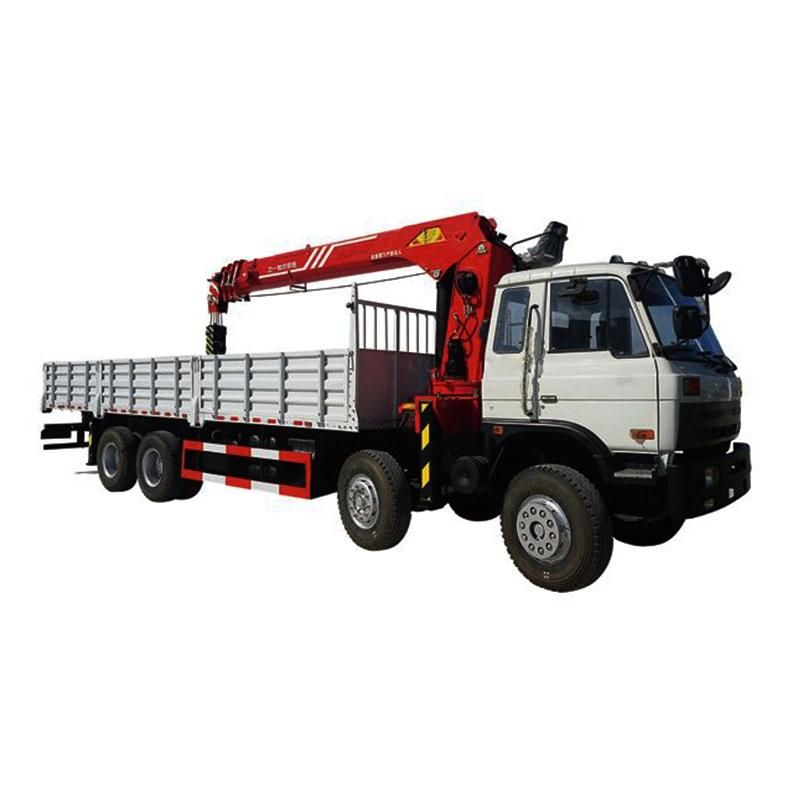

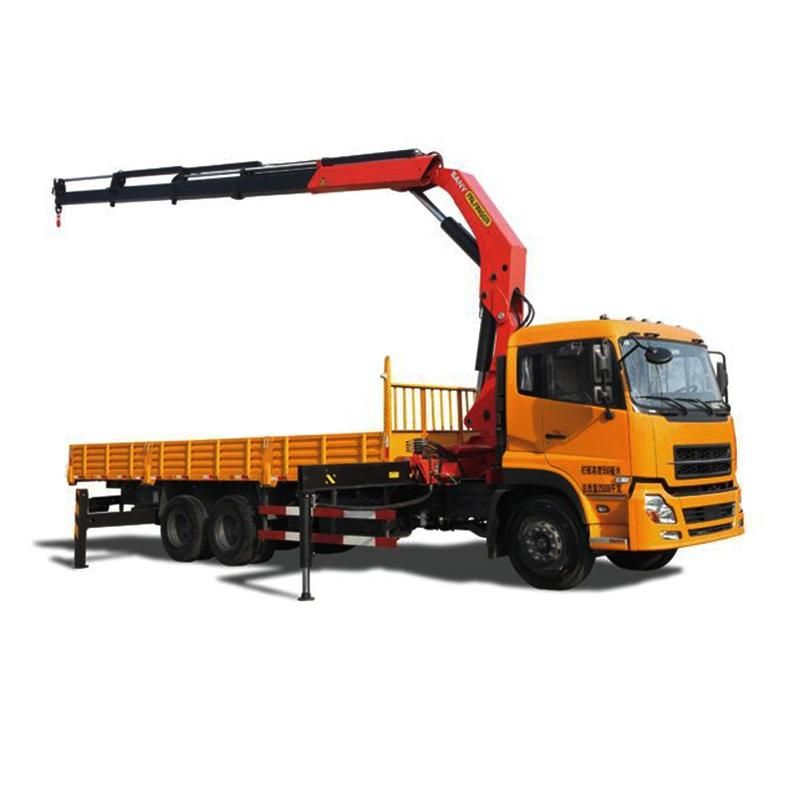

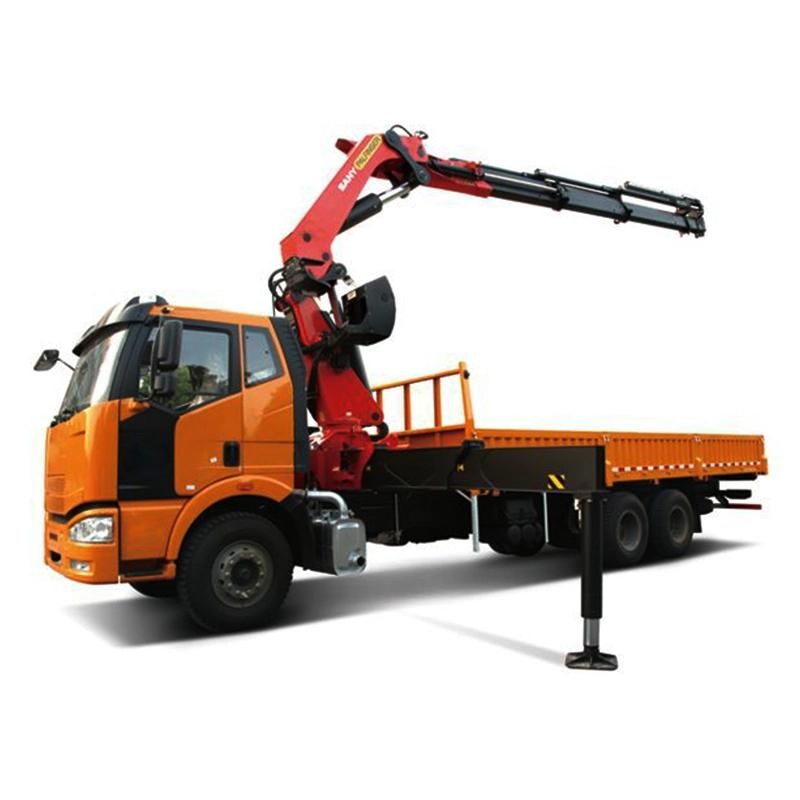

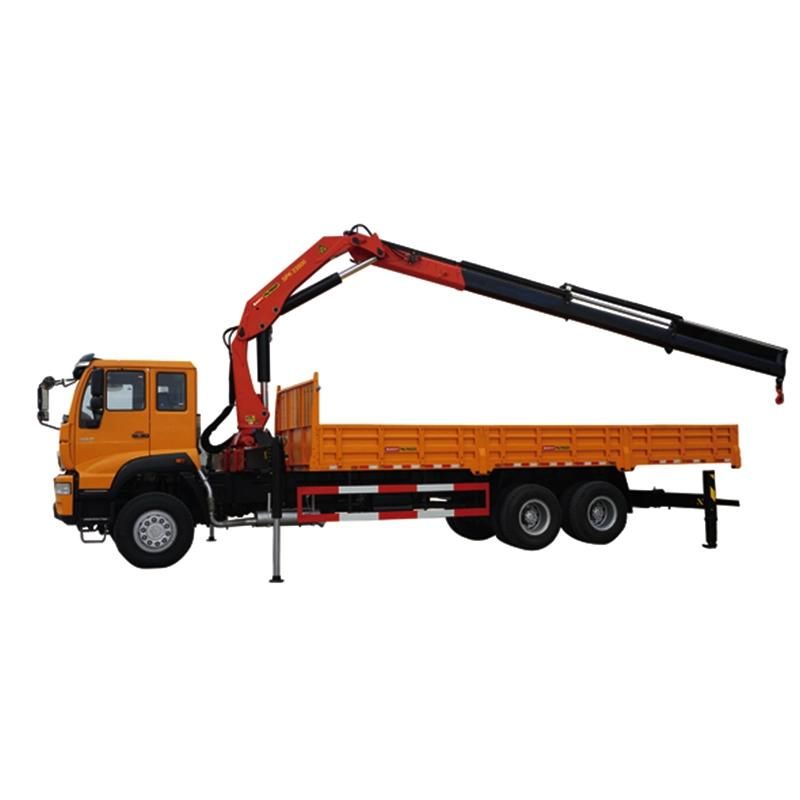

Mobile Truck Mounted Crane Truck Crane Knuckle Boom

MODEL: SPS50000/SINOTRUCK chassis

14 Ton Stiff Boom Crane
Max. Lifting Capacity: 20t
Boom Length: 21.6m
Overall Weight: 45t

Features

1: High tensile strength extension booms to optimize the lifting height and the working range

2: Best lift-to-weight ratio in the industry

3: The wide outrigger span ensures the best stability in all mounting situation

4: The standard package includes 2 working lights to ensure safe operation, day and night

5: Optionally available is an over-load protection system to ensure safe crane operation

6: Palfinger produces according to European Quality Standards to ensure the best reliability, performance, and safety in the industry

7: Optimized for installation on 4 axle trucks

8: A safety Package is optionally available

Capacity
Max. lifting capacity 20t
Dimensions Overall length 11984mm
Overall width 2496mm
Overall height 4021mm
Axles 4
Axle distance-1,2- 1800mm
Axle distance-2,3- 4575mm
Axle distance-3,4- 1400mm

Weight
Overall weight 45000kg
Front axle load 15000kg
Rear axle load 30000kg

Main performance:
Engine Model WD615.87
Rated power 213Kw
Rated torque 1160Nm at 1100~1600 rpm
Emission standard Euro II
Traveling Max. traveling speed 102km/h
Approach angle 16°
Departure angle 14°
Max. gradeability 33%
Rated lifting moment 50mt
Rated lifting capacity 2000kg(2.5m)
Max.outreach 21.2m
Max.lines of hook 6
Slewing angle(continuous) continuous
Boom raising angle 0°~75°
Max.lifting height(the measurement from the ground after the outriggers fully extended) 22.4m
Length of the basic boom 6.25m
Length of fully extended boom 21.6m
Boom sections 5
Outrigger span (fully extended) 7.25m
Recommended volum for the system 100L/min
Operating pressure 29/32Mpa
Oil tank capacity 300L
Crane moment (dynamic) 913.8kNm/93.1mt
Torsional moment (dynamic) 52.5kNm/5.4mt
Aircondition HVAC in low cab
Cooling / Heating
The parameters are for reference only, please contact your sales representative for details.
