• Model NO.：QY25V
• Type：Folding
• Engine：Shangchai
• Lifting Capacity：25 Ton

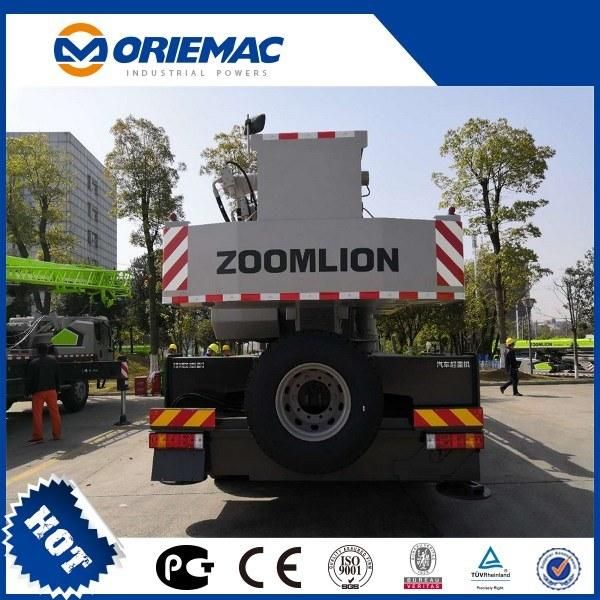

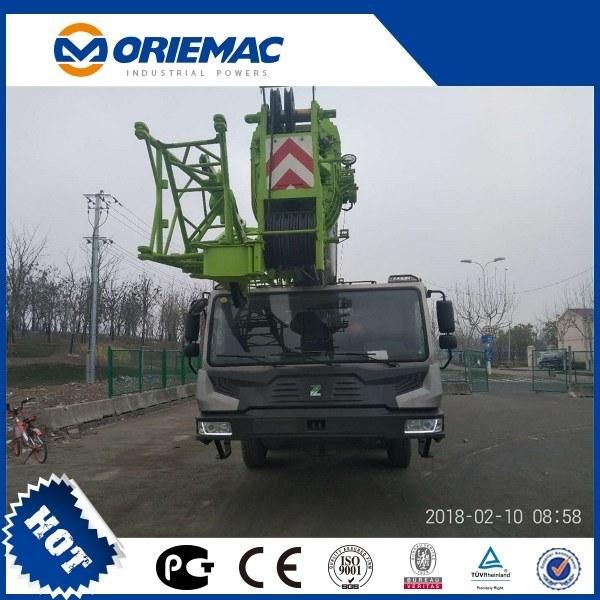

• Product Name：Zoomlion 25ton Truck Crane
• Transport Package：Nude Packing
• Specification：7095*3517*3254mm
• Trademark：zoomlion
• Origin：China
• HS Code：84294019
• Production Capacity：100 Units,Month

Item

Value

Remarks

Working performance

Max. rated lifting capacity kg

25000

Max. load moment of basic boom kN.m

980

Max. load moment of max. boom length kN.m

494

Max. lifting height of basic boom m

11.0

Max. lifting height of boom m

39

Deformation of the boom is not taken into consideration.

Max. lifting height of jib m

47.0

Working speed

Max. hoist rope speed (main winch) m/min

120

At 4^th layer

Max. hoist rope speed(auxiliary winch) m/min

100

At 2^nd layer

Boom derricking time s

40

Boom extending time s

80

Slewing speed r/min

0~2.2

Traveling specifications

Max. traveling speed km/h

78

Max. gradeability %

37

Min. turning diameter m

≤22

Min. ground clearance mm

220

Limits for exhaust pollutants and smoke

Meet with related standards

GB3847-2005

GB17691-2005

(National stage III)

Oil consumption per hundred kilometers L

45

Weights

Deadweight in traveling condition kg

31700

Complete vehicle kerb mass kg

31570

Front axle load kg

6900

Rear axle load kg

24800

Dimensions

Overall dimensions (L×W×H)mm

12700×2500×3450

Longitudinal distance between outriggers m

5.36

Transversal distance between outriggers m

6.1

Boom lengthm

10.4~39.2

Boom angle°

-2~80

Jib lengthm

8

Offset°

0 , 30

Chassis

Model

ZLJ5325

Code:ZLJ5325V3

Class

II

Engine

Model

WP10.270

Rated power kW/r/min

199/2200

Max. output torque N.m/r/min

1100/1300 ~1600

Manufacturer

Changsha Zoomlion Heavy Industry Science & Technology Development Co., Ltd
