Lifting Machinery Hydraulic Truck Crane 60ton Ztc600V532 Model Hoisting Crane with 5 Section Boom Hot Sale!

Anhui Heavy and Light Industries International Co., Ltd.
  • After-sales Service：Provided
  • Warranty：1 Year
  • Certification：GS, RoHS, CE, ISO9001
  • Condition：New
  • Maximum Lifting Height：>40m
  • Maximum Lifting Weight：>16t

Base Info

  • Model NO.：ZTC600V532
  • Shaft Number：4
  • Crane Jib：Five-Arm
  • Type：Straight Arm
  • Weight：61.5ton
  • Max. Lifting Height：60m
  • Option：Color, Hook Weight
  • Certificate：ISO9001
  • Wheel in The Cab：Left Hand
  • Transport Package：Nude Package
  • Specification：12600*2500*3450
  • Trademark：ZOOMLION
  • Origin：China
  • HS Code：8705109100
  • Production Capacity：50000pieces,Year

Description

Overview Product DescriptionItemUnitValueRemarksWorking    performanceMax.    rated lifting capacitykg60000 Max.    load moment of basic boomkN.m2033 Max.    load moment of main boom(fully extended)kN.m1192 Max.    load moment of basic boomm12.8 Max.    lifting height of main boomm45.7These    parameters do not include deflection of main boom and jibMax.    lifting height of jibm61.5Working    speeds            Max.    hoist rope speed(Main winch)m/min125At    the 4th  layerMax.    hoist rope speed(Auxiliary winch)m/min125At    the 4nd   layerBoom    demrricking up times45 Boom    telescoping out times95 Slewing  speedr/min0    -2.2 Driving    parametersMax.    driving  speedkm/h85 Max.    gradeability%47 Turning    diameterm≤23 Min.  ground clearancemm285 Oil    consumption per hundred kilometersL43 MassDeadweight    in driving conditionkg42000 Complete    vehicle kerb masskg41805 Front    axle loadkg16000 Rear    axle loadkg26000 DimensionsOverall    dimensions(L×W×H)mm13950×2800×3750 Outrigger    spread(L)m5.92 Outrigger    spread(W)mFully    extended: 7.1 Tail    slewing radiusmm3930 Main    boom lengthm11.6    - 45.0 Boom    angle°-2    - 80 jib    lengthm9.5,16.0 Offset°0,15,30

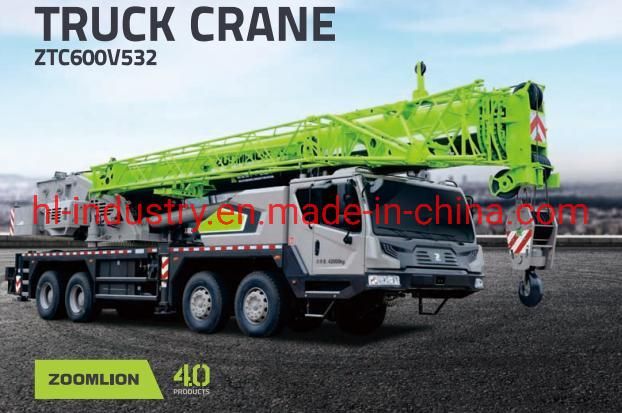

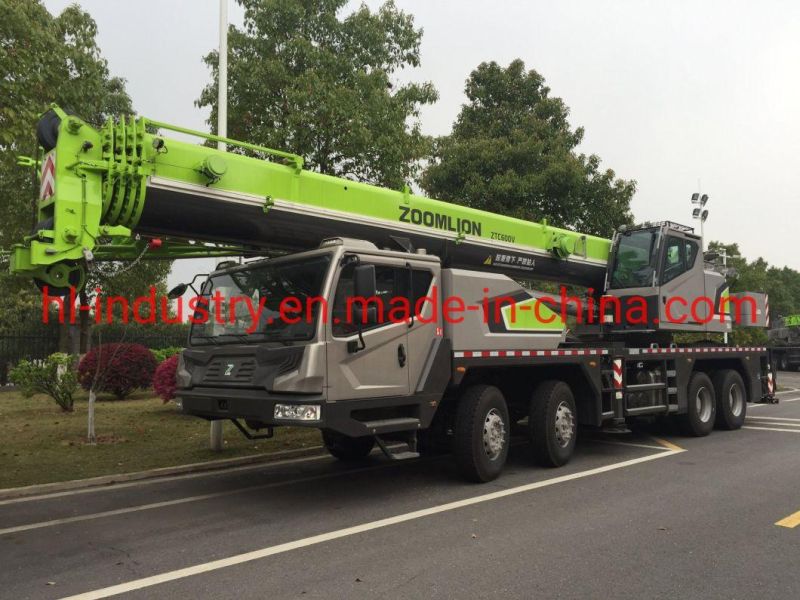

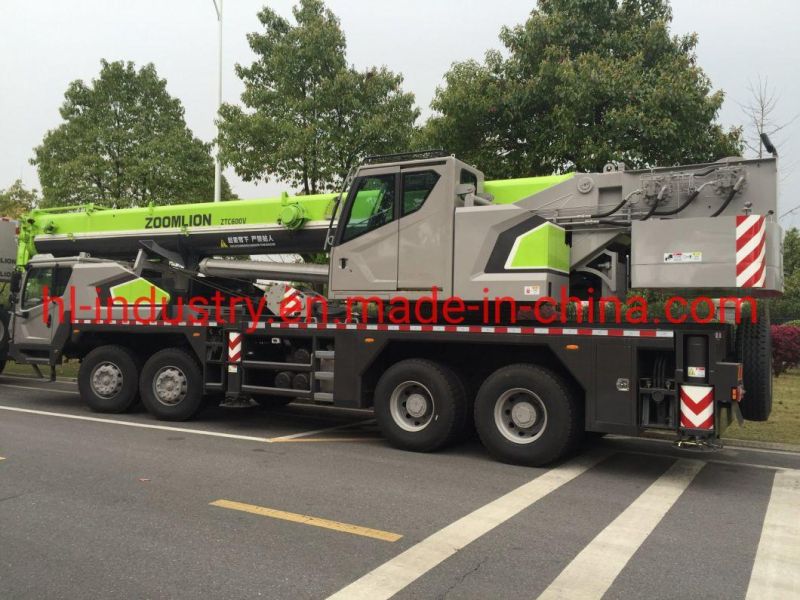

Detailed Photos





















Lifting Machinery Hydraulic Truck Crane 60ton Ztc600V532 Model Hoisting Crane with 5 Section Boom Hot Sale!Lifting Machinery Hydraulic Truck Crane 60ton Ztc600V532 Model Hoisting Crane with 5 Section Boom Hot Sale!Lifting Machinery Hydraulic Truck Crane 60ton Ztc600V532 Model Hoisting Crane with 5 Section Boom Hot Sale!

Our Advantages

FAQ

1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC,
3: What about the delivery time?
A: 7-20 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs
