Zoomlion 80 Ton Mobile Truck Crane with Right Hand Drive Truck Crane with Best Lifting Crane Peformance

Anhui Heavy and Light Industries International Co., Ltd.
  • Certification：GS, RoHS, CE, ISO9001
  • Condition：New
  • Maximum Lifting Height：>40m
  • Maximum Lifting Weight：>16t
  • Shaft Number：4
  • Crane Jib：Five-Arm

Base Info

  • Model NO.：ZTC800R532
  • Type：Straight Arm
  • Service：Online and Local Service
  • Parts：Provided with Filters
  • Selling Point：High Operating Efficiency
  • OEM：Supported with Color, Language etc
  • Transport Package：Nude, Roro, Container
  • Specification：14100*2750*3750
  • Trademark：ZOOMLION
  • Origin：China
  • HS Code：8426990000
  • Production Capacity：9000,Month

Description

Overview Product Description



Working performanceMax. rated lifting capacitykg80000Max. load moment of basic boomkN.m2575Max. load moment of main boom(fully extended)kN.m1240Max. load moment of basic boomm12.2Max. lifting height of main boomm44.2Max. lifting height of jibm60.2Working speeds             Max. hoist rope speed(Main winch)m/min≥135Max. hoist rope speed(Auxiliary winch)m/min≥110Boom demrricking up times57Boom demrricking up times107Slewing  speedr/min1.8DrivingMax. driving  speedkm/h75Max. gradeability%37Turning diameterm24Min.  ground clearancemm280Oil consumption per hundred kilometersL46MassDeadweight in driving conditionkg45000Complete vehicle kerb masskg44870Front axle loadkg19000Rear axle loadkg26000DimensionOverall dimensions(L×W×H)mm14100×2750×3750Longitudinal distance between outriggersm6.00Transversal distance between outriggersmFor completely extended outriggers: 7.60 m;

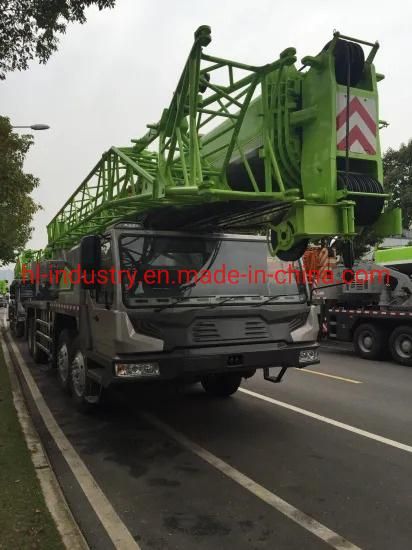

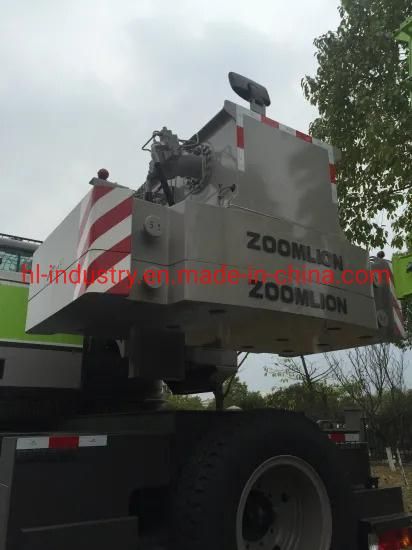

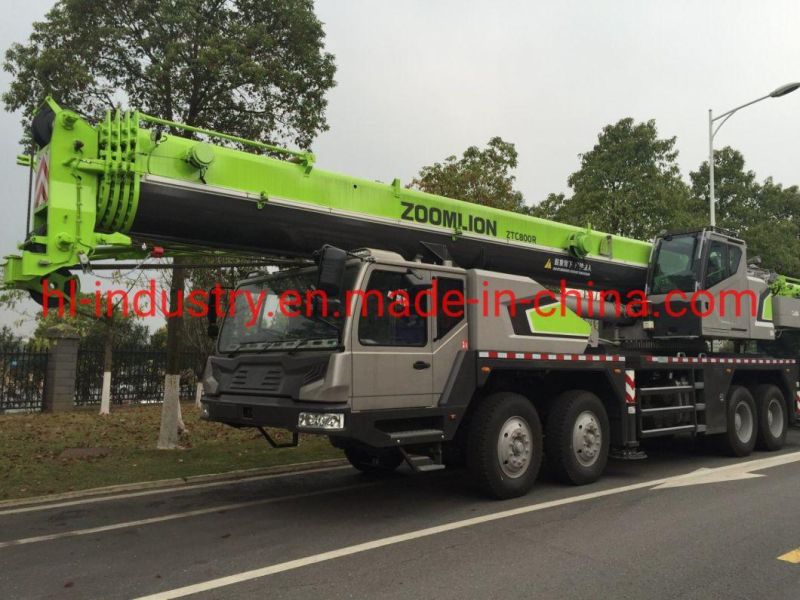

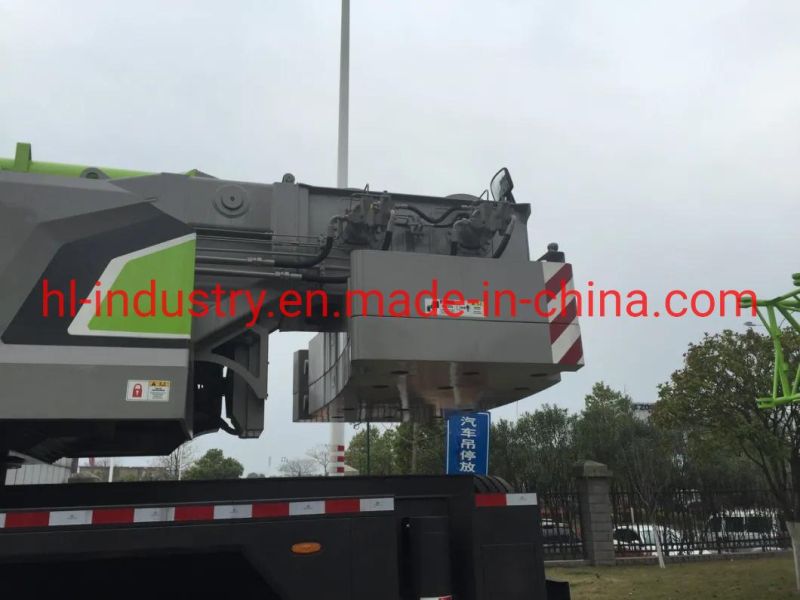

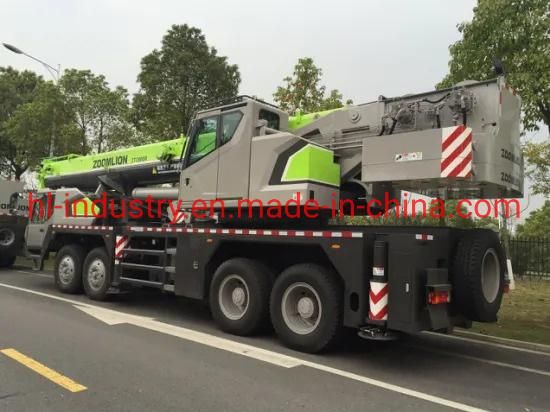

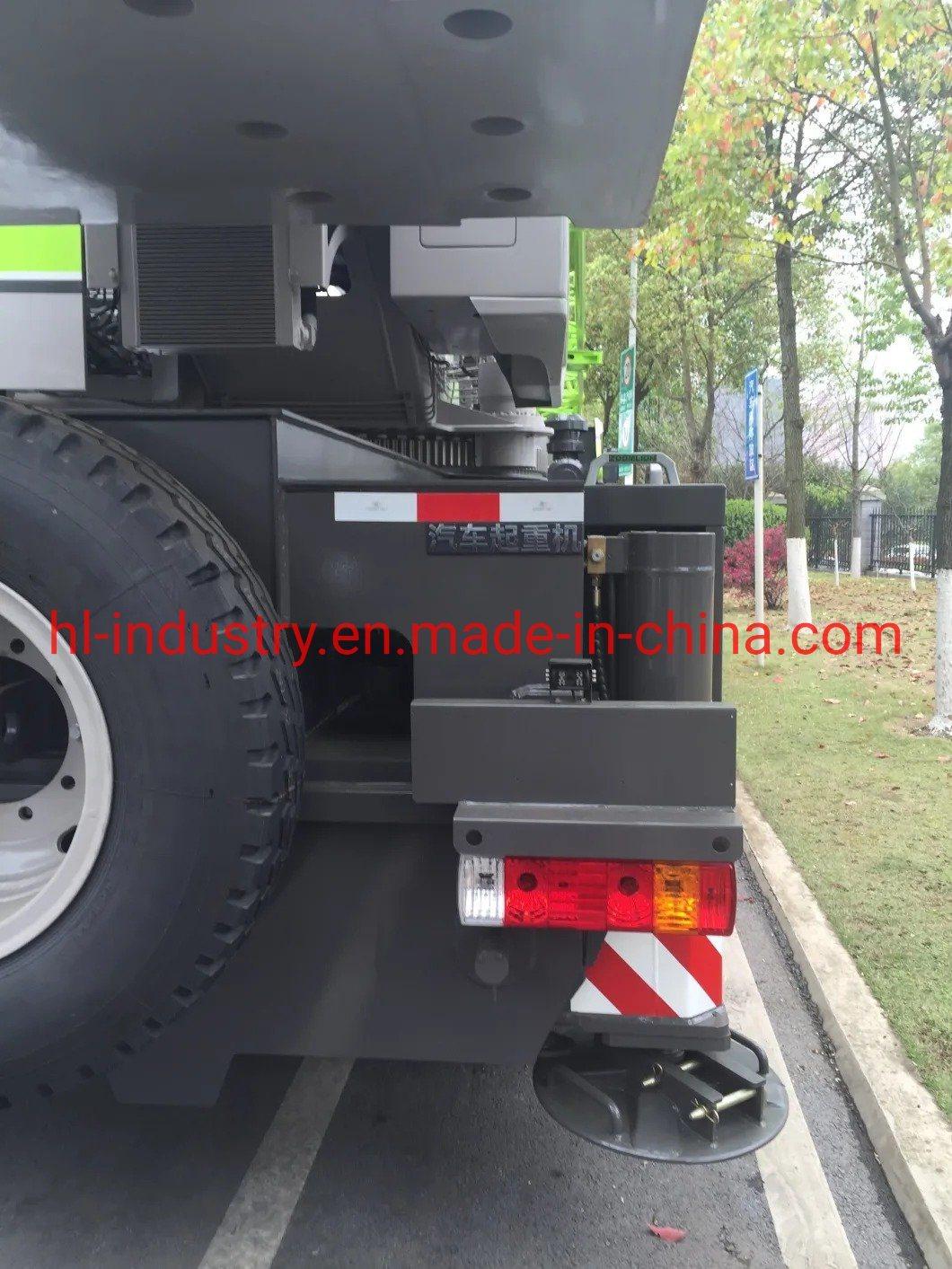

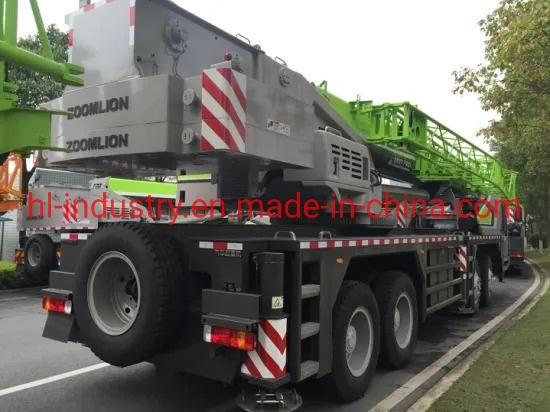

   For intermediately extended outriggers: 5.04 mTail slewing radiusmm4020Main boom lengthm11.6 - 44.0Main boom angle°-2 - 80jib lengthm9.5,16.0Offset°0,30Detailed Photos

Zoomlion 80 Ton Mobile Truck Crane with Right Hand Drive Truck Crane with Best Lifting Crane PeformanceZoomlion 80 Ton Mobile Truck Crane with Right Hand Drive Truck Crane with Best Lifting Crane PeformanceZoomlion 80 Ton Mobile Truck Crane with Right Hand Drive Truck Crane with Best Lifting Crane PeformanceZoomlion 80 Ton Mobile Truck Crane with Right Hand Drive Truck Crane with Best Lifting Crane PeformanceZoomlion 80 Ton Mobile Truck Crane with Right Hand Drive Truck Crane with Best Lifting Crane PeformanceZoomlion 80 Ton Mobile Truck Crane with Right Hand Drive Truck Crane with Best Lifting Crane PeformanceZoomlion 80 Ton Mobile Truck Crane with Right Hand Drive Truck Crane with Best Lifting Crane PeformanceZoomlion 80 Ton Mobile Truck Crane with Right Hand Drive Truck Crane with Best Lifting Crane Peformance

Company Profile

Zoomlion 80 Ton Mobile Truck Crane with Right Hand Drive Truck Crane with Best Lifting Crane PeformanceZoomlion 80 Ton Mobile Truck Crane with Right Hand Drive Truck Crane with Best Lifting Crane PeformanceZoomlion 80 Ton Mobile Truck Crane with Right Hand Drive Truck Crane with Best Lifting Crane PeformanceZoomlion 80 Ton Mobile Truck Crane with Right Hand Drive Truck Crane with Best Lifting Crane Peformance

Our Advantages

FAQ

1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC,
3: What about the delivery time?
A: 7-20 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs
