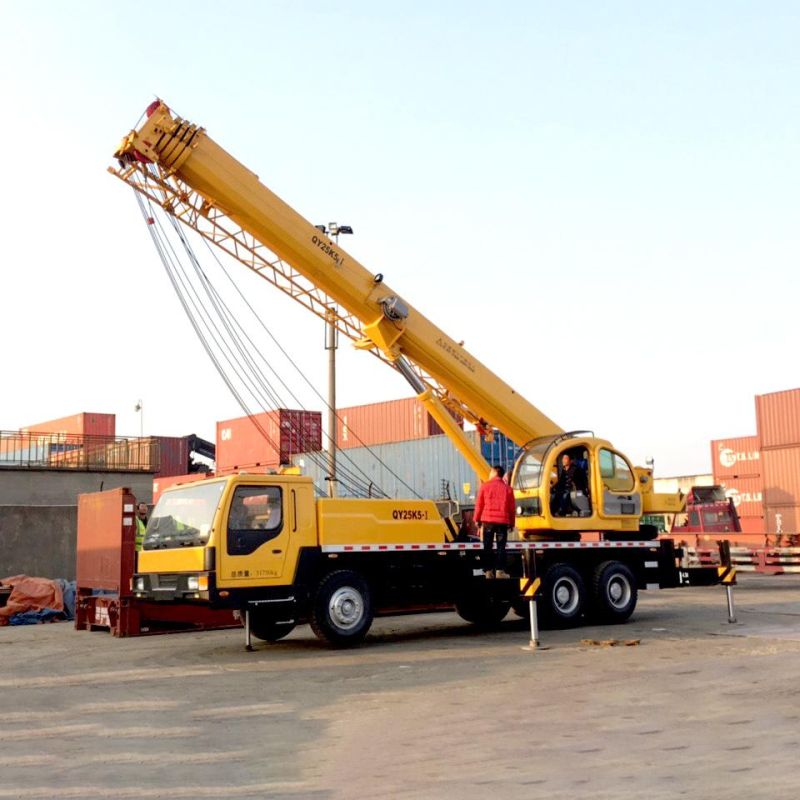

Popular 25 Ton Hydraulic Truck Crane (Qy25k5-I)
Oriemac Machinery & Equipment (Shanghai) Co., Ltd.- After-sales Service：Training, Installation, etc
- Warranty：1 Year Warranty for Spare Parts
- Certification：GS, RoHS, CE, ISO9001
- Condition：New
- Maximum Lifting Height：>40m
- Maximum Lifting Weight：>16t
Base Info
- Model NO.：QY25K5-I
- Shaft Number：3
- Crane Jib：Five-Arm
- Type：Straight Arm
- Max. Lifting Height：47.6m
- Control System：Pilot
- Size：12000*2500*3380mm
- Travel Weight：31000kg
- Engine Rated Output：206,2200kw,(R,Min)
- Situation：New

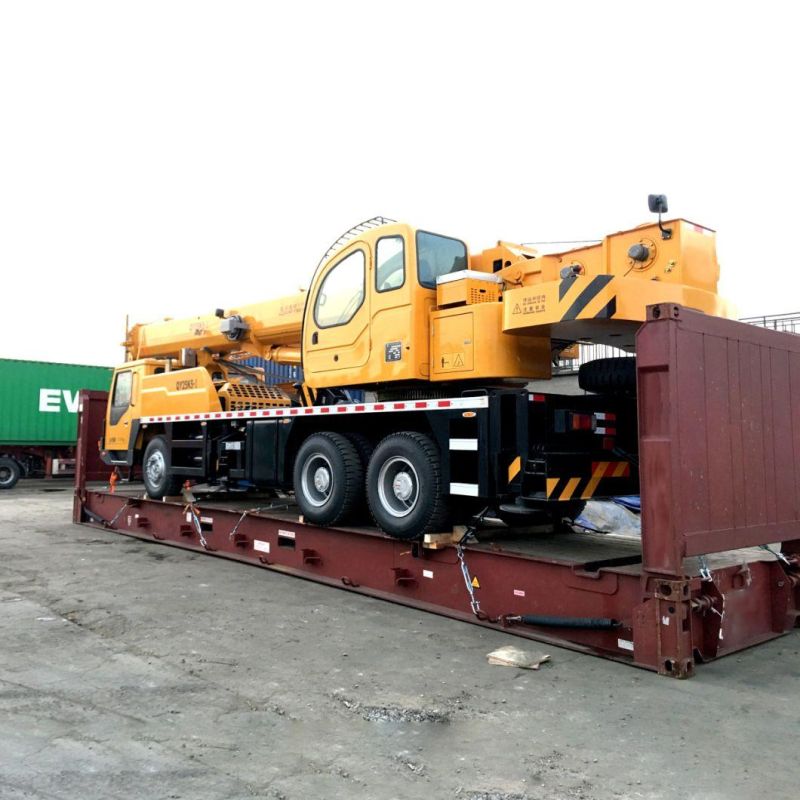

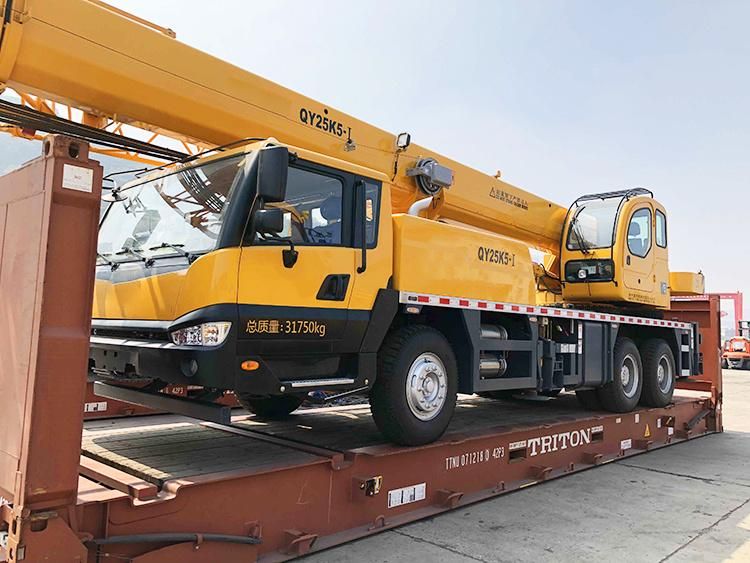

- Shipping Method：Roro or Bulk Ship
- Best Delivery：in 10-20 Days
- Application：Construction Usage
- Transport Package：Nude Package
- Specification：ISO, CE, GOST
- Trademark：Oriemac
- Origin：China(Mainland), Jiangsu
- Production Capacity：6000units, Year
Description
Item
Unit
Parameter
Outline dimension
Overall length
mm
12000
Overall width
mm
2500
Overall height
mm
3380
Mass
Total mass in travel state
kg
31000
Axle load
Front Axle
kg
6440
Rear Axle
kg
24600
Travel performance
Travel speed
Max. travel speed
km/h
75
Turning diameter
Min. turning diameter
m
22
Min. ground clearance
mm
260
Approach angle
(°)
16
Departure angle
(°)
13
Braking distance (at speed of 30km/h)
m
10
Max. grade-ability
%
30
Fuel consumption for 100km
L
37
Power
Engine rated output
kW/(r/min.)
206/2200
Engine rated torque
N.m/(r/min.)
1112/1400
