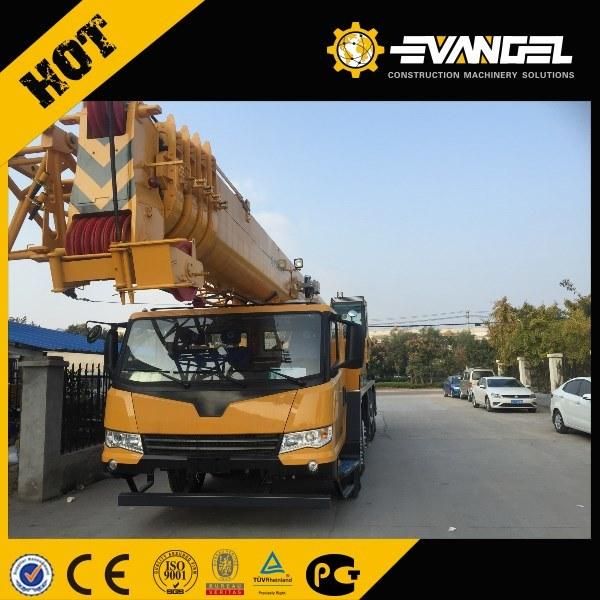

50ton Truck Crane for Sale Qy50ka
Evangel Industrial (Shanghai) Co., Ltd.- After-sales Service:Video Support
- Warranty:1 Year
- Certification:GS, RoHS, CE, ISO9001, ISO9001: 2000
- Condition:New
- Maximum Lifting Height:>40m
- Maximum Lifting Weight:>16t
Base Info
- Model NO.:QY50KA
- Shaft Number:4
- Crane Jib:Five-Arm
- Type:Truck Crane
- Engine Model:D6114
- Max. Travel Speed:72km,H
- Engine Rated Output:158,2200 Kw,(R,Min)
- Max. Total Rated Lifting Capacity:12ton
- Power Source:Hydraulic
- Sling Type:Wire Rope
- Application:Construction Usage
- Transport Package:N,P
- Specification:CE Certification, ISO9001
- Origin:Jiangsu, China
- HS Code:87051092
- Production Capacity:30sets, Month
Description
Basic Info.
Model NO. QY50KA Shaft Number 4 Crane Jib Five-Arm Type Truck Crane Engine Model D6114 Max. Travel Speed 72km/H Engine Rated Output 158/2200 Kw/(R/Min) Max. Total Rated Lifting Capacity 12ton Power Source Hydraulic Sling Type Wire Rope Application Construction Usage Transport Package N/P Specification CE Certification, ISO9001 Origin Jiangsu, China HS Code 87051092 Production Capacity 30sets/ MonthProduct Description
50ton Truck Crane for Sale QY50KA1. Four axles
2. Hangzhou (247KW) EURO III, full coverage board and strengthened chassis parts
3. 5-section U-shape mast booms 42.7m and two jibs 15m, dual independent winch, Hirschman force limiter
4. Cooling and heating air conditioner and heat emitter and five outriggers
5. Full head cab, hydraulic pilot.
Dimension | Unit | QY50K-II |
---|---|---|
Overall length | mm | 13750 |
Overall width | mm | 2800 |
Overall height | mm | 3520 |
Weight | ||
Total weight in travel | kg | 41000 |
Front axle load | kg | 15000 |
Rear axle load | kg | 26000 |
Power | ||
Engine model | WD615.334(domestic III) | |
Engine rated power | kW/(r/min) | 247/2200 |
Engine rated torque | N. m/(r/min) | 1350/1400 |
Travel | ||
Max. travel speed | km/h | 80 |
Min. turning diameter | m | 24 |
Min. ground clearance | mm | 291 |
Approach angle | ° | 17 |
Departure angle | ° | 11 |
Max. grade ability | % | 40 |
Fuel consumption for 100km | L | 45 |
Main performance | ||
Max. rated total lifting capacity | t | 50 |
Min. rated working radius | m | 3 |
Turning radius at turntable tail | m | 3.482 |
Max. lifting torque | kN. m | 1764 |
Base boom | m | 11.3 |
Fully extended boom | m | 42.7 |
Fully extended boom+ jib | m | 57.7 |
Longitudinal outrigger span | m | 5.91 |
Lateral outrigger span | m | 6.9 |
Working speed | ||
Boom luffing time | s | 88 |
Boom full extension time | s | 180 |
Max. swing speed | r/min | ≥ 2.0 |
Max. speed of main winch (single rope) (no load) | m/min | ≥ 110 |
Max. speed of aux. winch (single rope) (no load) | m/min | ≥ 110 |
