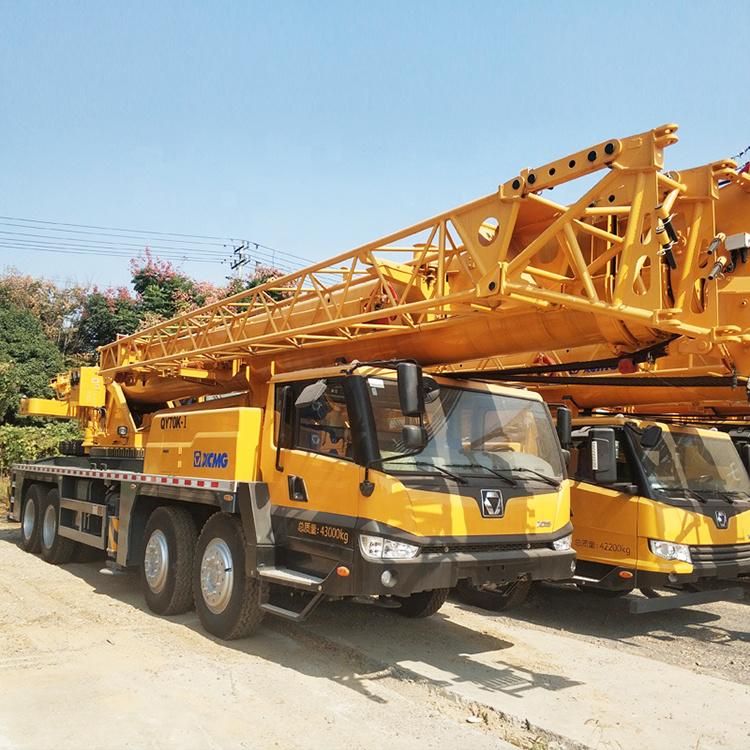

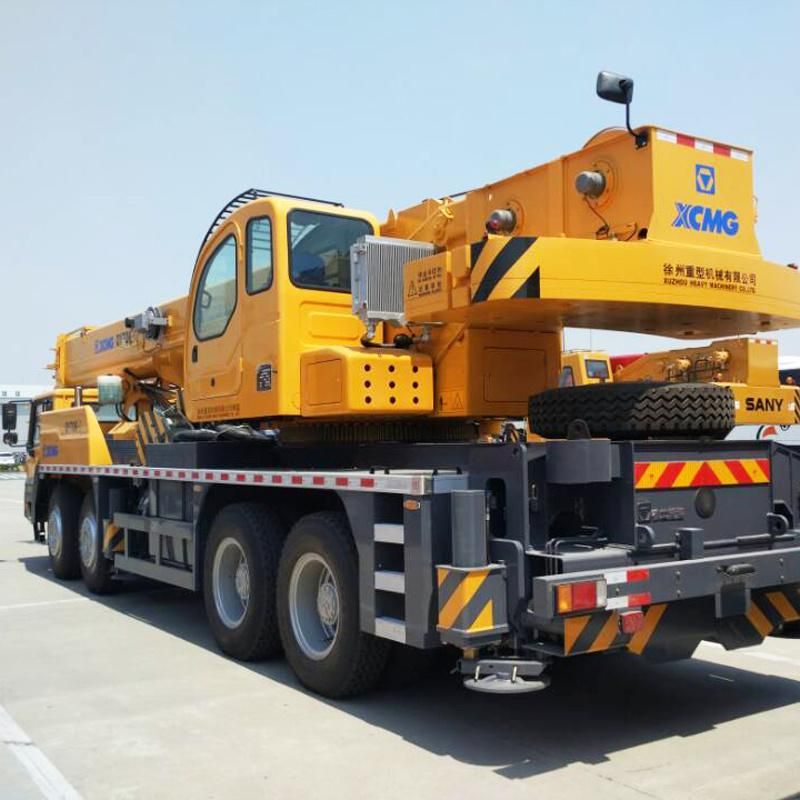

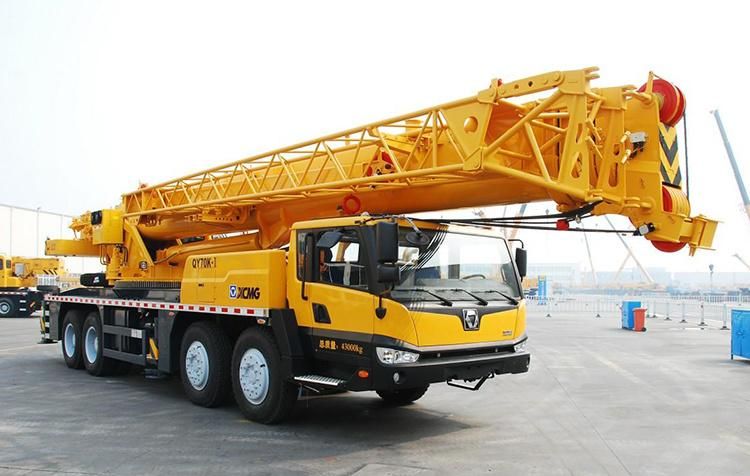

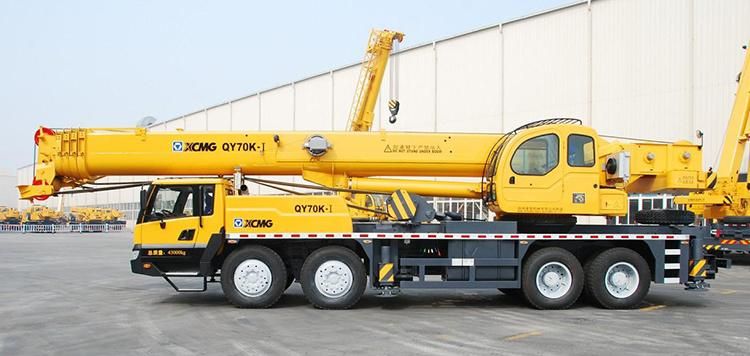

XCMG Rough Terrain Crane Qy70K-I 70ton Jib Crane
Xuzhou Construction Machinery Group Co., Ltd.- After-sales Service：Overseas Service Center Available
- Warranty：1year
- Certification：CE, ISO9001: 2000
- Condition：New
- Maximum Lifting Height：45m
- Maximum Lifting Weight：70t
Base Info
- Model NO.：Qy70k-I
- Shaft Number：8
- Crane Jib：5
- Type：Truck Crane
- Overall Length：13930mm
- Overall Width：2800mm
- Overall Height：3575mm
- Operation in Travel State：43000kg
- Max. Lifting Capacity：70t
- Tower Crane Type：Under Slewing Cranes
- Sling Type：Wire Rope
- Main Girder Form：Single Girder
- Power Source：Hydraulic
- Moving Type：Wheel
- Transport Package：Comply with Export Packaging Requirements
- Specification：ISO
- Trademark：XCMG
- Origin：Xuzhou, Jiangsu, China
- HS Code：87051022
- Production Capacity：10000,Year
Description
Overview
ItemQY70K-I parameter Unit Dimensions Total length 13930 mm Total width 2800 mm Total height 3575 mm Weight operation in travel state 43000(not included 1t auxiliary counterweight) Kg Front axle load 17000 Kg Rear axle load 26000 Kg Power Engine model Euro III hangfa WD615.338 Engine rated output 276/2200 Kw(r/min) Engine rated torque 1500/1400 N.m(r/min) Travel Max.travel speed 80 Km/h Max. turning diameter 24 mm Max. ground clearance 327 mm Approach angle 19/18 . Departure angle 11 . Max. grade ability 40 % Fuel consumption of 100km 45 L Lifting performance Max. total rated lifting load 50 t Min. rated working radius 3000 m Turning radius at swing table tail 3.55 mm Max. load moment 2303 Base boom 11.6 Kn.m Fully-extended main boom 44.5 m Fully-extended main boom+ luffing jib 59.5 m Outrigger longitudinal span 6.1 m Outrigger lateral span 7.3 m Working speed Boom luffing time 60 s Boom full elevating time ≤150 s Max. slewing speed ≥2.0 r/min Main hoist max. speed(single rope) ≥130 m/min Auxiliary hoist max. speed(single rope ) ≥180 m/min
Company Profile
FAQ
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC,
3: What about the delivery time?
A: 30 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.
Company Profile
FAQ1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC,
3: What about the delivery time?
A: 30 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.
