Ztc250h431 Chinese Factory Chinese 25 Ton Truck Crane Price

Maxizm Construction Machinery (Qingdao) Co., Ltd.
  • Certification：GS, RoHS, CE, ISO9001
  • Condition：New
  • Maximum Lifting Height：30-40m
  • Maximum Lifting Weight：>16t
  • Shaft Number：4
  • Crane Jib：Two-Arm

Base Info

  • Model NO.：ZTC250H431
  • Type：Folding
  • Max. Rated Lifting Capacity：25000kg
  • Max. Load Moment of Basic Boom：960kn.M
  • Max. Lifting Height of Jib：43m
  • Max. Hoist Rope Speed(Main Winch)：120m,Min
  • Max. Hoist Rope Speed(Auxiliary Winch：120m,Min
  • Boom Demrricking up Time：25s
  • Front Axle Load：6300kg
  • Rear Axle Load：23300kg
  • Overall Dimensions(L*W*H)：13100*2500*3450mm
  • Outrigger Spread(L)：5.4m
  • Outrigger Spread(W)：6.2m
  • Transport Package：Comply with Export Packaging Requirements for Min
  • Specification：12700*2500*3450 mm
  • Trademark：ZOOMLION
  • Origin：China
  • HS Code：84262000
  • Production Capacity：10000 Units,Month

Description

UnitValueMax.    rated lifting capacitykg25000Max.    load moment of basic boomkN.m1029Max.    load moment of main boom(fully extended)kN.m564Max.    load moment of basic boomm11.1Max.    lifting height of main boomm40.5Max.    lifting height of jibm48.5Max.    hoist rope speed(Main winch)m/min120Max.    hoist rope speed(Auxiliary winch)m/min100Boom    demrricking up times40Boom    demrricking up times80Slewing  speedr/min0    -2.2Max.    driving  speedkm/h78Max.    gradeability%37Turning    diameterm≤22Min.  ground clearancemm235Oil    consumption per hundred kilometersL35Deadweight    in driving conditionkg32400Complete    vehicle kerb masskg32270Front    axle loadkg6500Rear    axle loadkg25900Overall    dimensions(L×W×H)mm13000×2550×3500Outrigger    spread(L)m5.36Outrigger    spread(W)mFully    extended:6.1,     Intermediately    extended:4.2Tail    slewing radiusmm3385Main    boom lengthm10.6    - 40.0Boom    angle°-2    - 80jib    lengthm8

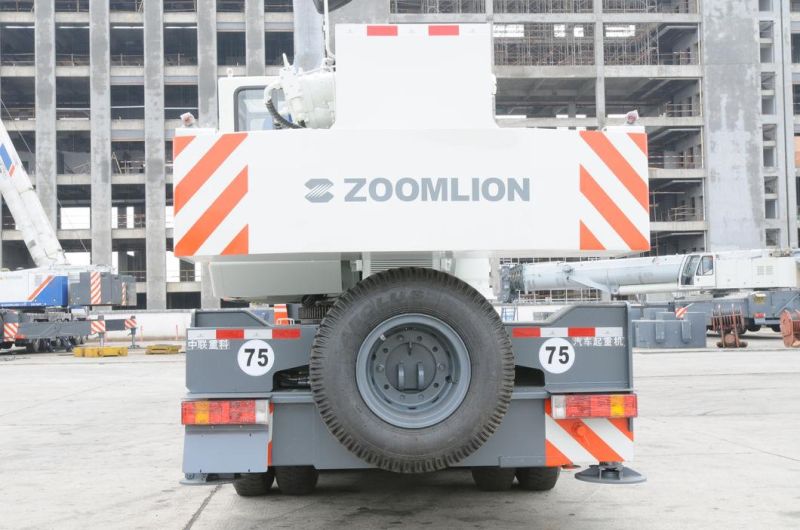

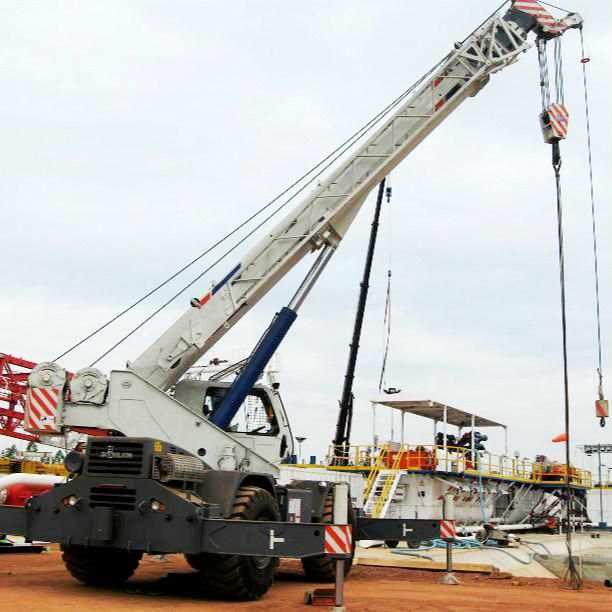

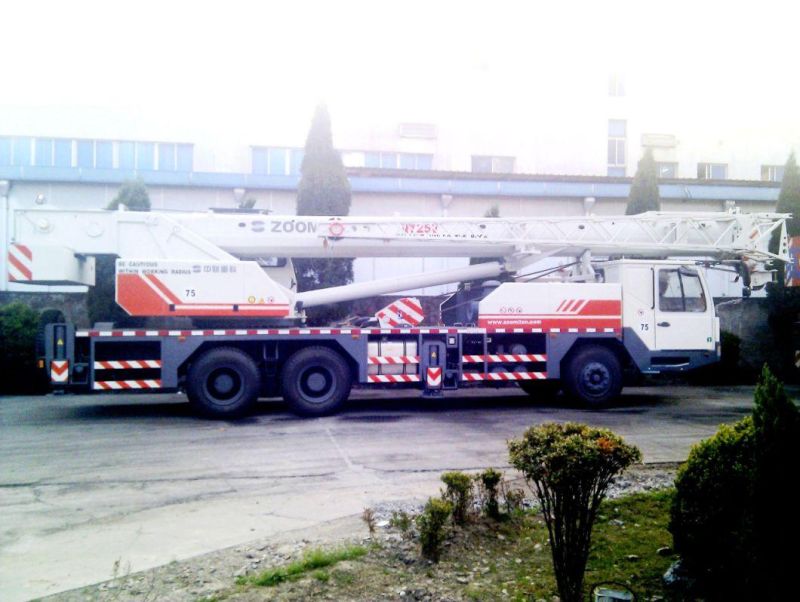

Product Show
