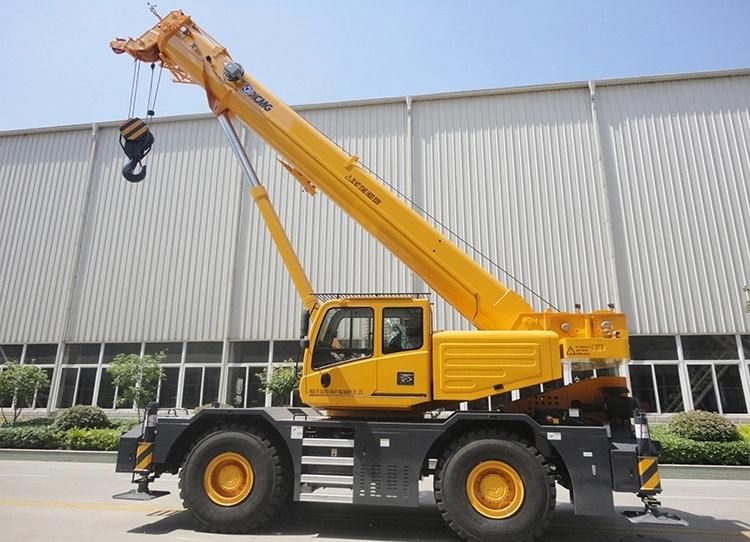

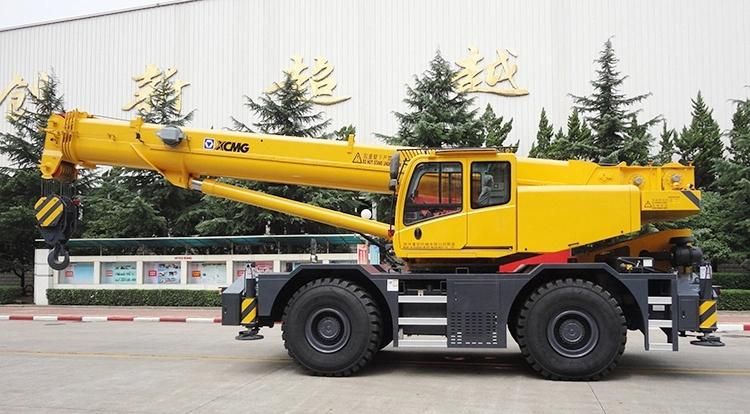

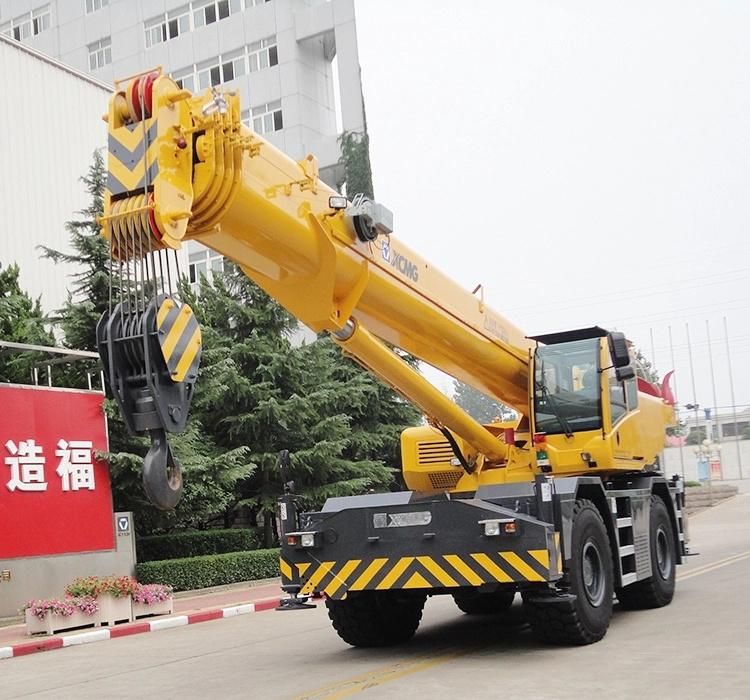

XCMG Official Hot Sale 25 Ton off Road Crane Truck Rough Terrain Wheel Crane China New Hydraulic Mobile Rough Terrain Crane for Sale
Xuzhou Construction Machinery Group Co., Ltd.- Certification：GS, RoHS, CE, ISO9001
- Condition：New
- Maximum Lifting Height：44m
- Maximum Lifting Weight：25t
- Shaft Number：2
- Crane Jib：Four-Arm
Base Info
- Model NO.：RT25
- Type：Straight Arm
- Engine Rated Power：142kw,(R,Min)
- Span：2250~10000mm
- Rated Lifting Moment：989kn.M
- Engine Brand：Cummins
- Transport Package：Comply with Export Packaging Requirements
- Specification：11703*2700*3385mm
- Trademark：XCMG
- Origin：Jiangsu, China
- HS Code：87051022
- Production Capacity：1000,Year
Description
DimensionUnit RT25 Overall length mm 11703 Overall width mm 2700 Overall height mm 3385 Weight Total weight in travel kg 26365 Power Engine model QSB6.7-C190 Engine rated power kW/(r/min) 142 Engine rated torque N.m/(r/min) 616 Travel Max. travel speed km/h 50 Min. turning diameter m 10 Min. ground clearance mm 345 Approach angle ° 22 Departure angle ° 19 Max. grade ability % 55 Fuel consumption for 100km L - Main performance Max. rated total lifting capacity t 25 Min. rated working radius m 3 Turning radius at turntable tail m 3.698 Max. lifting torque kN.m 989.8 Full-extend boom m 9.1 Full-extend boom+jib m 30.8 Boom length m 41.4
