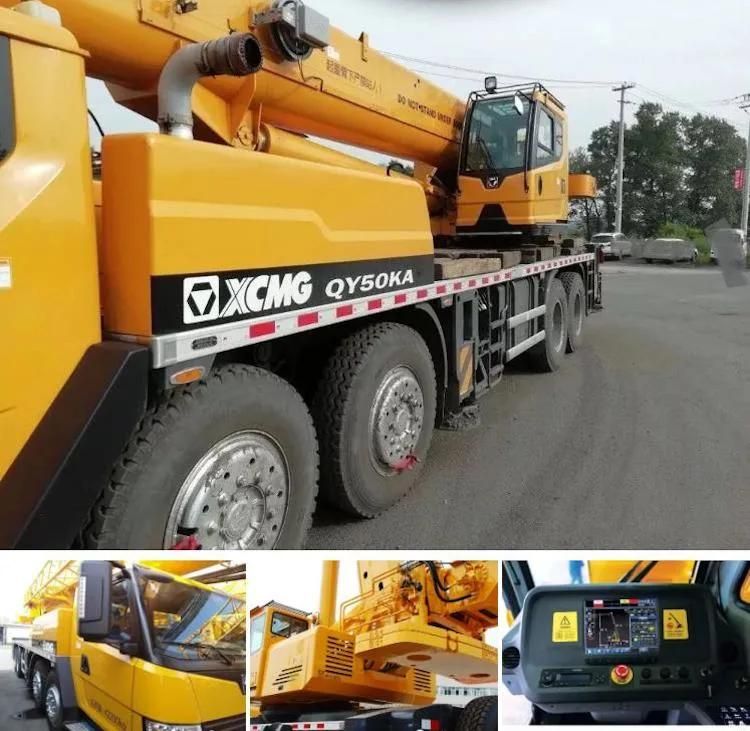

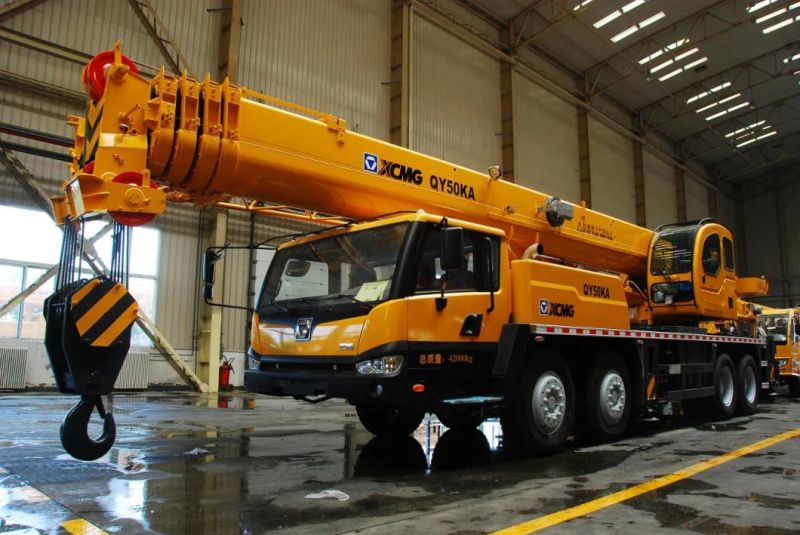

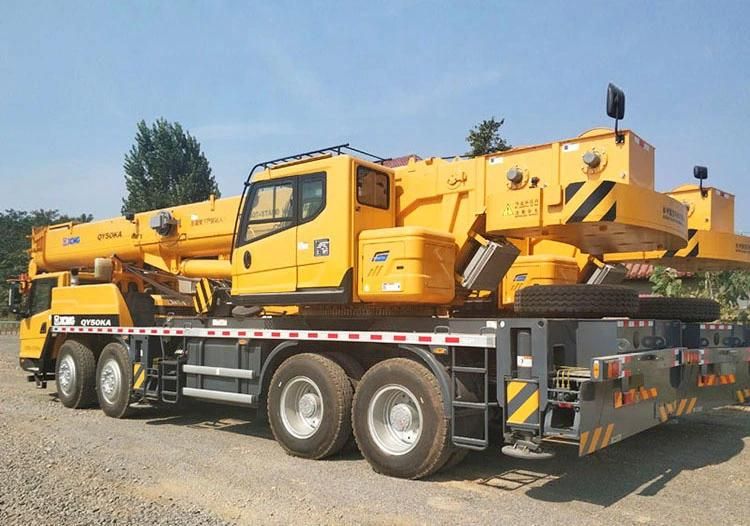

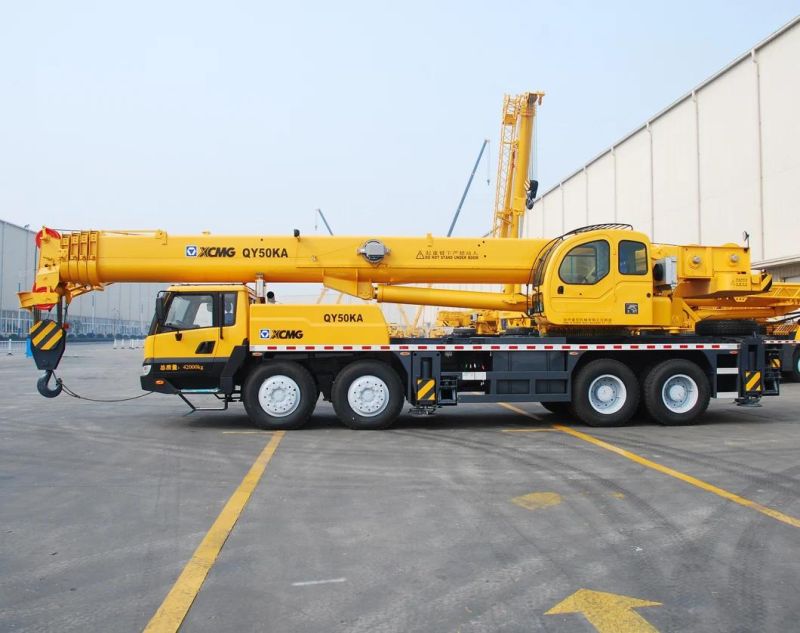

• Model NO.：QY50KA
• Rated Lifting Moment：2009kn.M
• Span：6.9m
• Engine Rated Power：276,2200kw,(R,Min)
• Engine Rated Torque：1500,1300-1600n.M,(R,Min)
• Max. Travel Speed：85km,H
• Wheel Base：2304+2075mm
• Transport Package：Comply with Export Packaging Requirements
• Specification：13930*2780*3630mm
• Trademark：XCMG
• Origin：Xuzhou, Jiangsu, China
• HS Code：87059091
• Production Capacity：1000,Year

DescriptionUnitParameter valueOverall lengthmm13930Overall widthmm2780Overall Heightmm3630Axle base1st ,2nd axlemm14702nd ,3rd axle43003rd ,4th axle1350Wheel Basemm2304+2075Front overhang/rear overhangmm2389/2064or 2376/2064Front extension/rear extensionmm2131/226 or 2144/226Total vehicle mass in travel configurationkg42200Axle loadFront axlekg16200Rear axle26000Engine Model WD615.338Engine rated powerkw/(r/min)276/2200Engine rated torqueN.m/(r/min)1500/1300-1600Max. travel speedkm/h85Min. steady travel speedkm/h2~3Min. turning diameterm24Min. ground clearancemm327Max. grade ability%42Approach angle°19Departure angle°15Braking distance (at 30 km/h, full load )m≤10Oil consumption per 100kmL40Exterior noise level during acceleration travelingdB (A)≤88Noise level at seated positiondB (A)≤90














FAQ

1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted

2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC,

3: What about the delivery time?
A: 30 days after receiving the deposit.

4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.

5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs
