8t Topless Factory Price Self Erecting Tower Crane T6013A-8

Maxizm Construction Machinery (Qingdao) Co., Ltd.
  • Certification：GS, RoHS, CE, ISO9001
  • Condition：New
  • Maximum Lifting Height：50-100m
  • Maximum Lifting Weight：8t
  • Installation：Assembled
  • Moving Type：Orbital

Base Info

  • Model NO.：T6013A-8
  • Type：Under-Slewing Crane
  • Rated Liftingmoment(Kn.M)：80
  • Workingradius(M)Max.Workingradius：60
  • Workingradius(M)Min.Workingradius：30
  • Max.Liftingcapacity(T)：8
  • Speed(M/Min)：0~0.6
  • Power(Kw)：2*4
  • Transport Package：Container,RO-RO
  • Specification：8400*3660*3350 mm
  • Trademark：zoomlion
  • Origin：China
  • HS Code：8426200000
  • Production Capacity：10000 Units,Month

Description

 Rated lifting moment (kN.m) 80 Max. lifting height (m) Free-standing stationary crane90.2Anchored crane200Working radius (m) Max. working radius 60Min. working radius 30Max. lifting capacity (t) 8 Hoisting mechanism  Rope fall α=2α=4Speed (m/min) 40802040Lifting weight (t) 4284Power (kW) 30Slewing mechanismSpeed (m/min) 0~0.6Power (kW) 2×4Trolleying mechanism Speed (m/min) 0~55Power (kW) 3

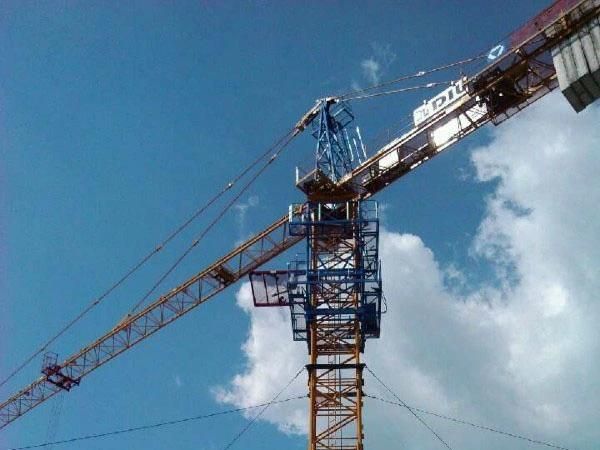

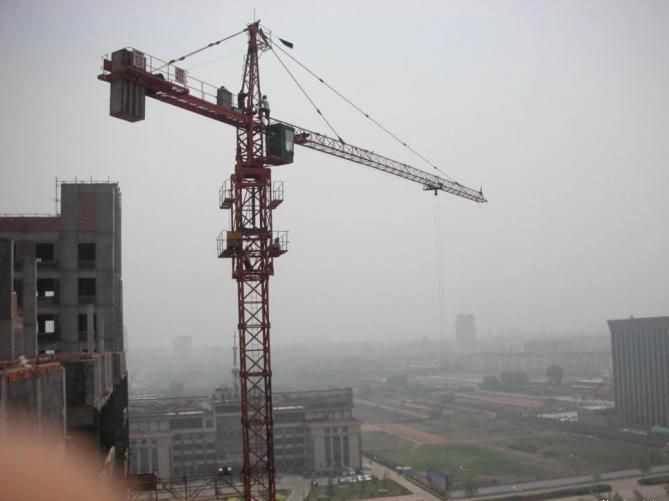

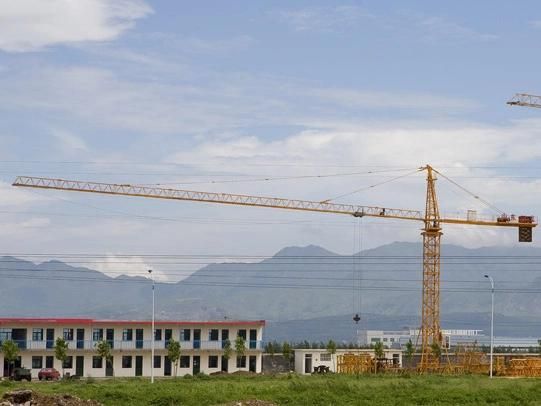

Product Show

8t Topless Factory Price Self Erecting Tower Crane T6013A-8
8t Topless Factory Price Self Erecting Tower Crane T6013A-8
8t Topless Factory Price Self Erecting Tower Crane T6013A-8
8t Topless Factory Price Self Erecting Tower Crane T6013A-8
