Cheaper High Reflective for Tall Building Syt80 Tower Crane

Cruking Engineering Equipment (Xiamen) Co., Ltd.
  • After-sales Service：Field Installation, Commissioning and Training,Vid
  • Warranty：1 Year
  • Certification：CE, ISO9001
  • Condition：New
  • Maximum Lifting Height：200-250m
  • Maximum Lifting Weight：6t

Base Info

  • Model NO.：SYT80
  • Installation：Assembled
  • Moving Type：Fixed
  • Type：Top-Slewing Crane
  • Rated Lifting Moment：80t,M
  • Power Frequency：50Hz
  • Power Voltage：380V
  • Free Standing Height：40.5 M
  • Max Jib Length：57 M
  • Max Lifting Capacity：6 Ton
  • Max Lifting Moment：80t,M
  • The Max Height Under Hook：230m
  • Tip Load at Max Jib Length：1t
  • The Power of Luffing Mechanism：3.3,2.2kw
  • Transport Package：Nude Package
  • Specification：Rated Loading Capacity: 6T
  • Trademark：Cruking
  • Origin：China
  • HS Code：8426200000
  • Production Capacity：500unit,Month

Description

Working SpeedThe Power of Hoisting Mechanism24/24/5.4kW24/24/5.4kW24/24/5.4kW24/24/5.4kW30kW25kWThe Power of Luffing Mechanism3.3/2.2kW3.3/2.2kW3.3/2.2kW3.3/2.2kW4.0kW4kWThe Power of Slewing Mechanism7.5kW2*4.0kW2×5.5kW2×5.5kW2×5.5kW2×5.5kWThe Speed of Hoisting Mechanism4.4-80r/min4.4-80r/min4.4-80r/min4.4-80r/min0-80r/min0-80r/minThe Speed of Luffing Mechanism50/25r/min50/25r/min50/25r/min50/25r/min0-55r/min0-55r/minThe Speed of Slewing Mechanism0-0.7r/min0-0.75r/min0-0.75r/min0-0.75r/min0-0.75r/min0-0.8r/min

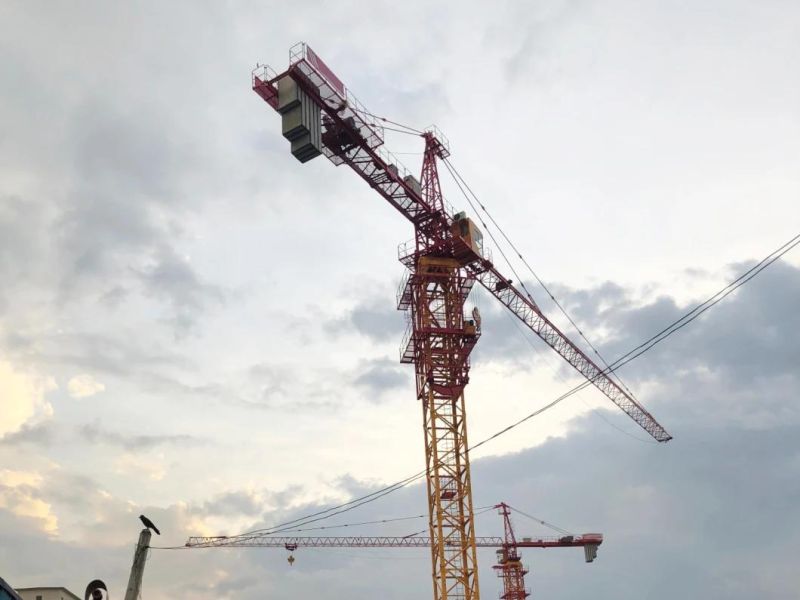

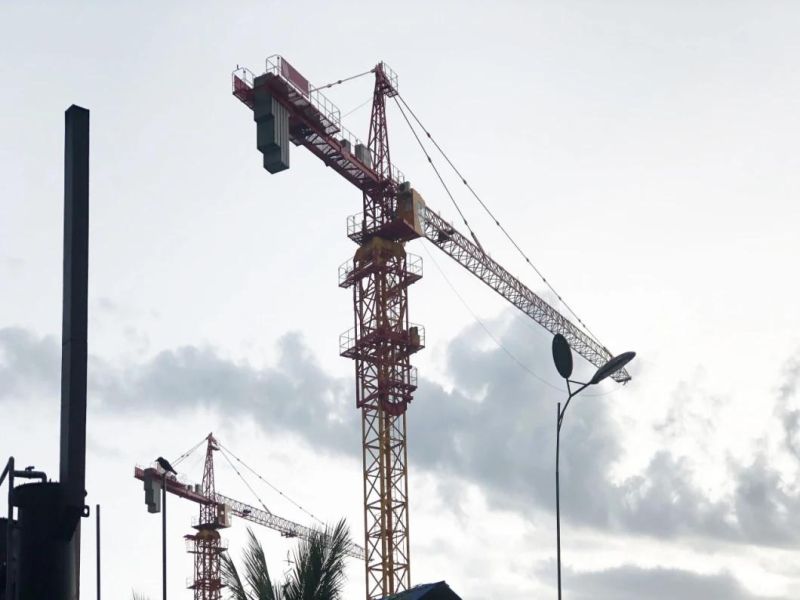

Details Images
