• Model NO.：RT35
• Shaft Number：2
• Crane Jib：Five-Arm
• Type：Straight Arm
• Model：Rt35
• Max Lifting Capacity：35 Ton
• Max. Load Moment of Basic Jib：1344 Kn.M
• Max. Load Moment of Max. Length Main：870 Kn.M
• Max. Lifting Height of Max. Length M：45.4 M
• Max. Lifting Height of Jib：62.2 M
• Boom Angle：-3-78 Degree
• Swing Range：360°unlimited Swing(Full Range)
• Max. Traveling Speed (Fwd/Bwd)：39 Km,H
• Transport Package：Nude Package
• Specification：11935*2980*3600 mm
• Trademark：cruking
• Origin：China
• HS Code：8705109200
• Production Capacity：30000 Unit,Year

Product Description

Product Parameters

Type

Ser. No.

Item

Unit

Value

Working performance

1

Max. rated lifting weight × working    radius

kg.m

35000×3.0

2

Max. lifting moment of basic boom

kN.m

1344

3

Max.lifting moment of longest boom

kN.m

870

4

Max. lifting height of longest boom

m

31

5

Max. lifting height of jib

m

46

Dimensions

6

Outline dimensions (L×W×H)

mm

11935×2980×3600

7

Distance between outriggers (Longitudinal ×    transversal)

mm

6810×6800

8

Main boom length (completely    retracted - completely extended)

mm

9800~31000

9

Jib length (completely    retracted - completely extended)

mm

9088~15028

10

Main boom angle of elevation

°

-3~78

11

Swing range

360°continuously

Working speed

12

Max.speed of single rope on the drum of main winch

m/min

150

13

Boom extension time

s

70

14

Boom retraction time

s

75

15

Boom derricking up time

s

46

16

Boom derricking down time

s

47

17

Swing speed

r/min

0~2.5

Hydraulic system

18

Rated working pressure

MPa

27

19

Rated working flow

L/min

400

20

Hydraulic oil tank capacity

L

600

Mass

21

Complete vehicle kerb mass

kg

32000

22

Front axle load

kg

15030

23

Rear axle load

kg

16970

Traveling

24

Max. traveling speed (forwards    / backwards)

km/h

38/15

25

Wheelbase

mm

3820

26

Treads (front / rear)

mm

2444

27

Max. gradeability

%

57

28

Min. turning radius (outer edge of the    vehicle body)

m

6.5

29

Min. turning radius (2 wheels)

m

11.25

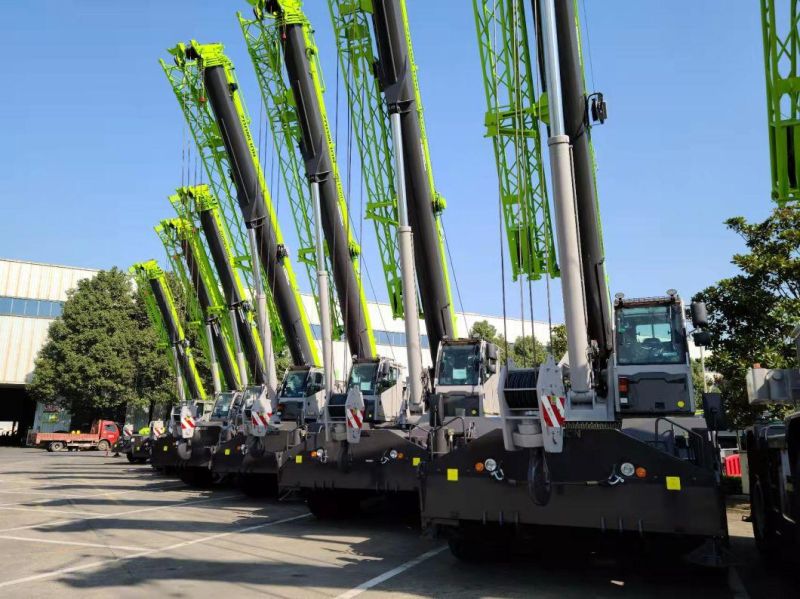

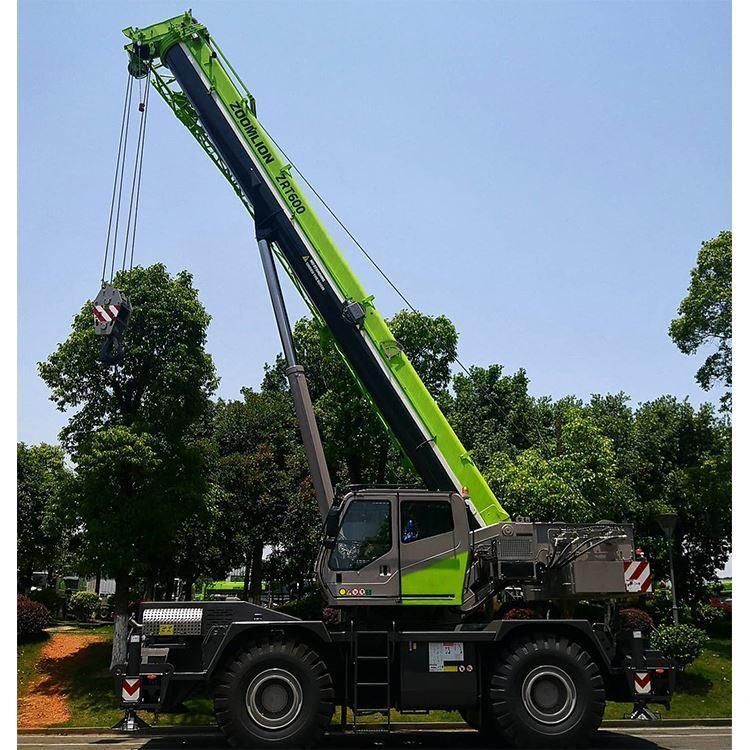

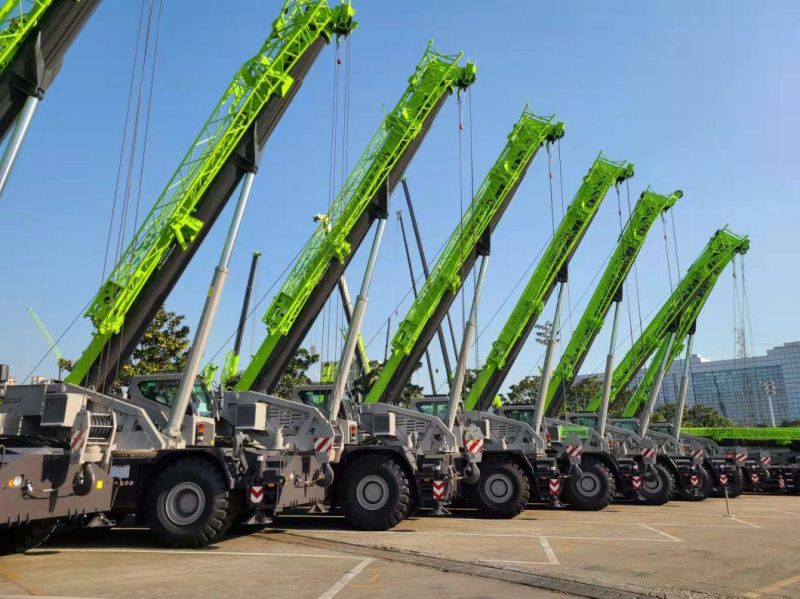

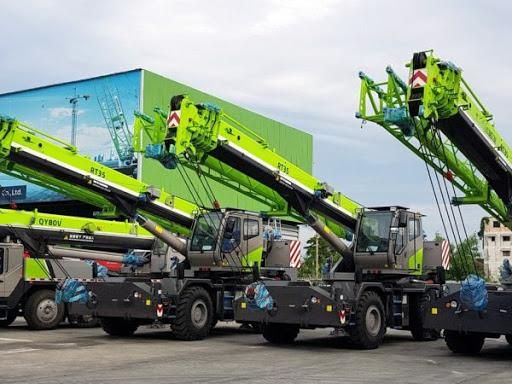

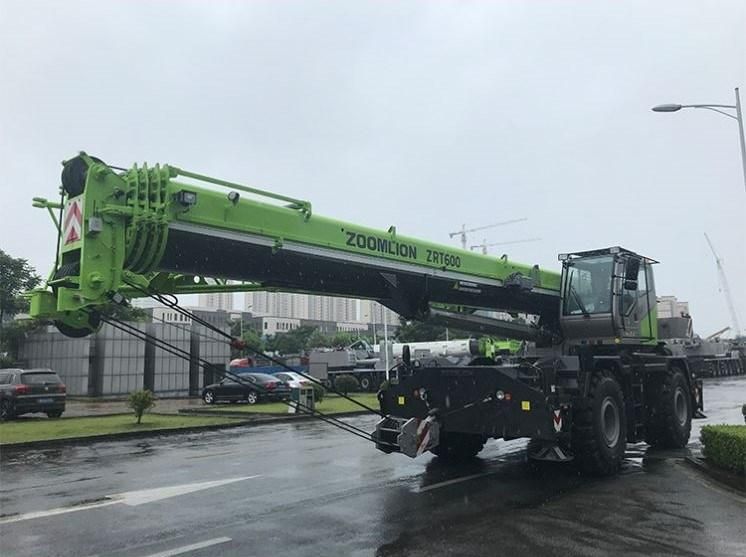

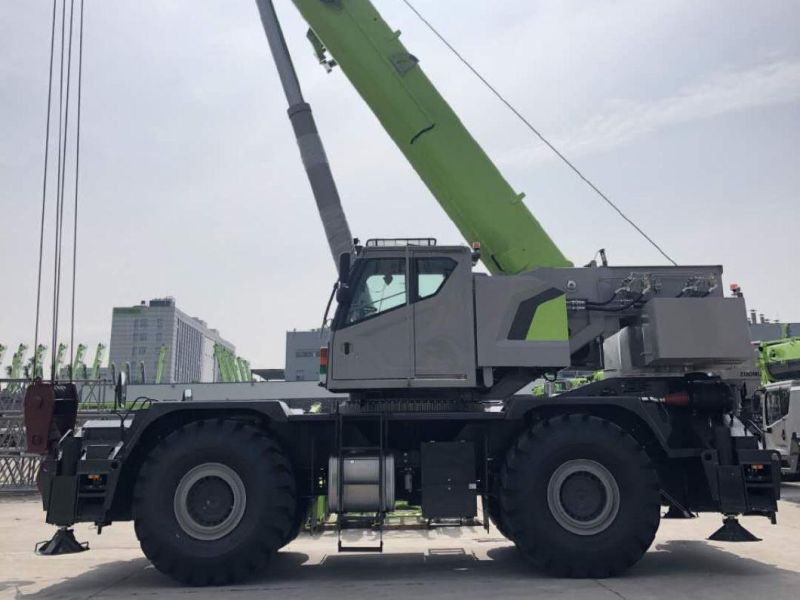

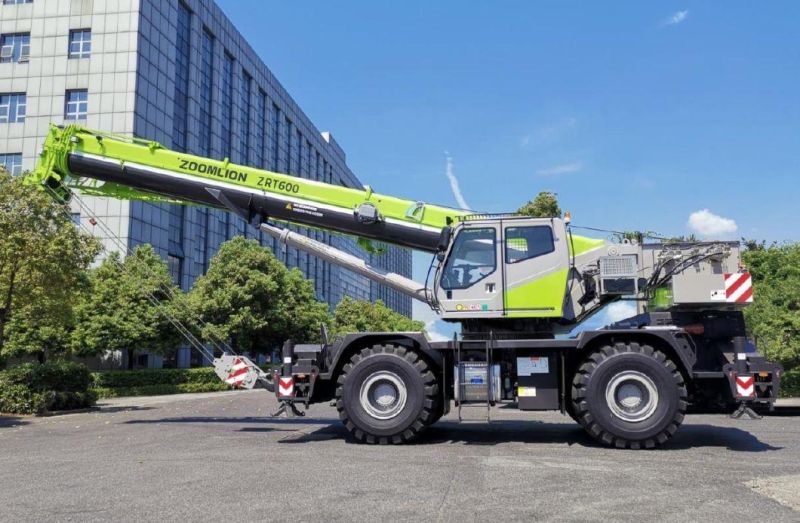

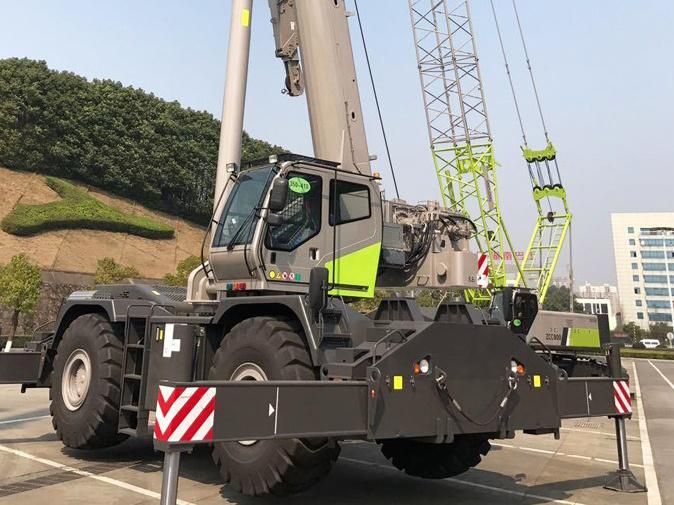

Detailed Photos
