Ztc550h 55 Ton Telescopic Boom Mobile Truck Crane Price
Sinomada Heavy Industry (Changsha) Co., Ltd.- After-sales Service：Onsite Installation, Video Technical Support
- Warranty：1 Year
- Certification：CE, ISO9001
- Condition：New
- Maximum Lifting Height：>40m
- Maximum Lifting Weight：>16t
Base Info
- Model NO.：ZTC550H
- Shaft Number：3
- Crane Jib：Five-Arm
- Type：Straight Arm
- Span：7.8m
- Transport Package：Roro,Container,Bulk
- Specification：14390*2800*3800MM
- Trademark：Sinomada
- Origin：China
- HS Code：8705109100
- Production Capacity：500units,Month
Description
Product OverviewFull cabin with air conditioner, left-hand drive, four-axle chassis, Weichai EURO V WP9H310E50 engine (228KW);
Weichai 9L engine + Fa st 9-speed gearbox, 5 U-shaped main boom (11.6~45) m, 2 jibs (9.5/16m);
independent double winch, two-stage outrigger double-sided control, with control room pitch mechanism;
gear pump hydraulic system, hydraulic control operation;
fixed counterweight 5.5 tons with 3 tons auxiliary counterweight; standard three-color lights, vehicle backup camera;
Standard 50 tons main hook and 4 tons auxiliary hook.FEATURES AT A GLANCE1. High Performance & ReliabilityPRODUCT SPECIFICATIONS

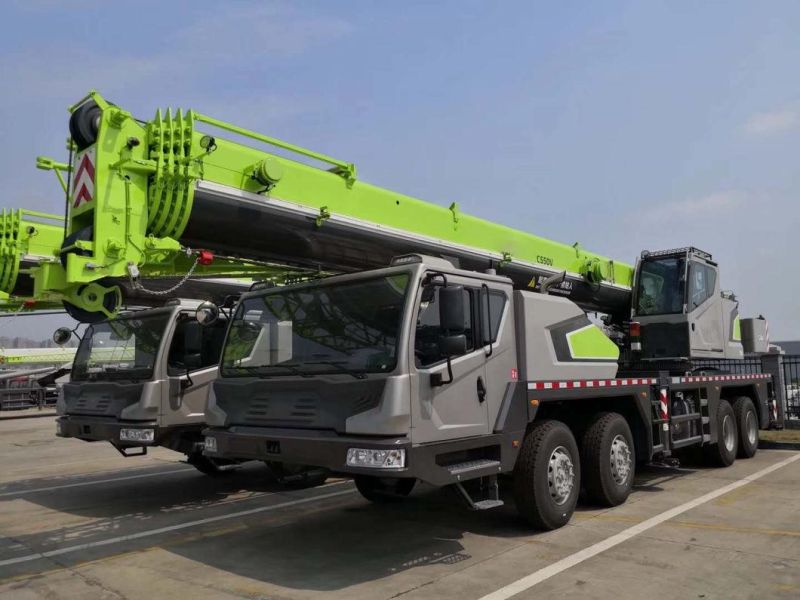

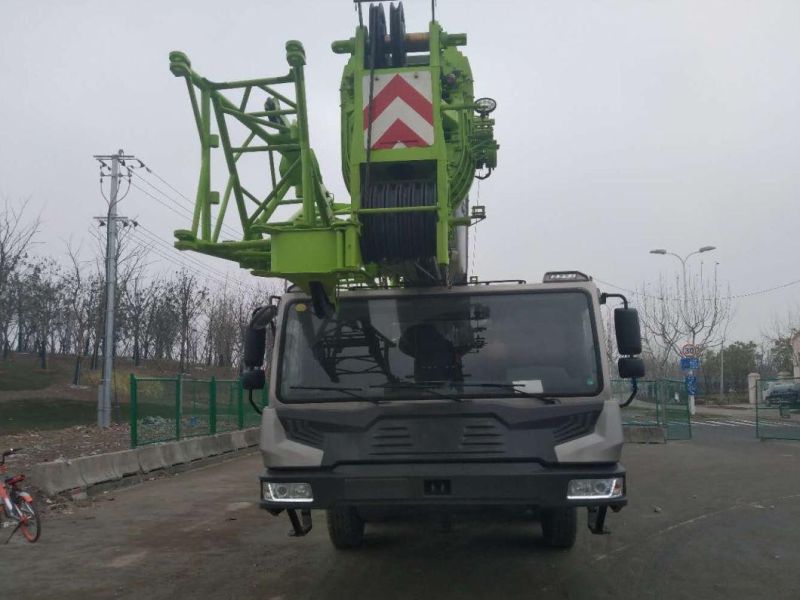

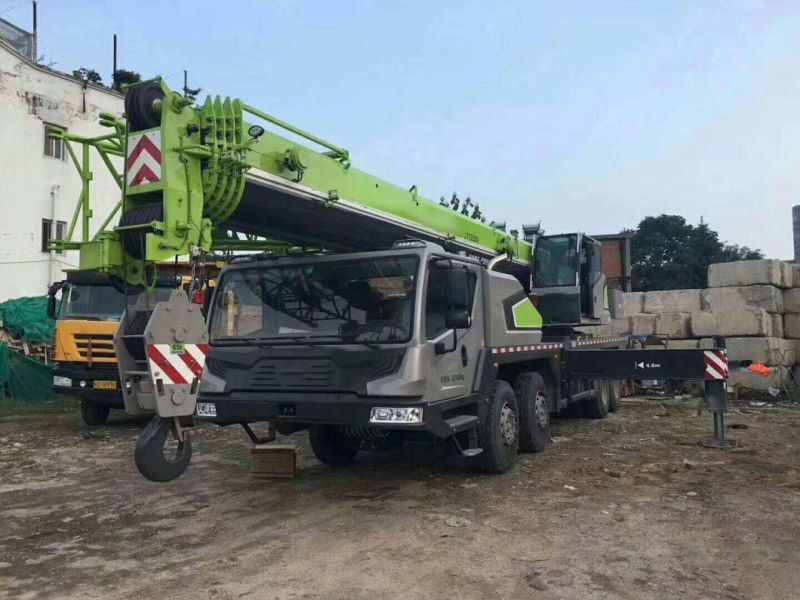

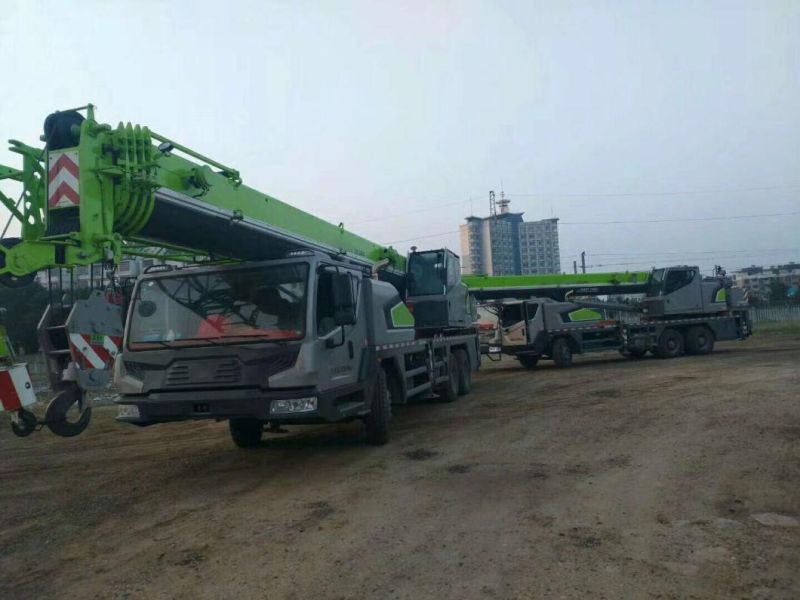

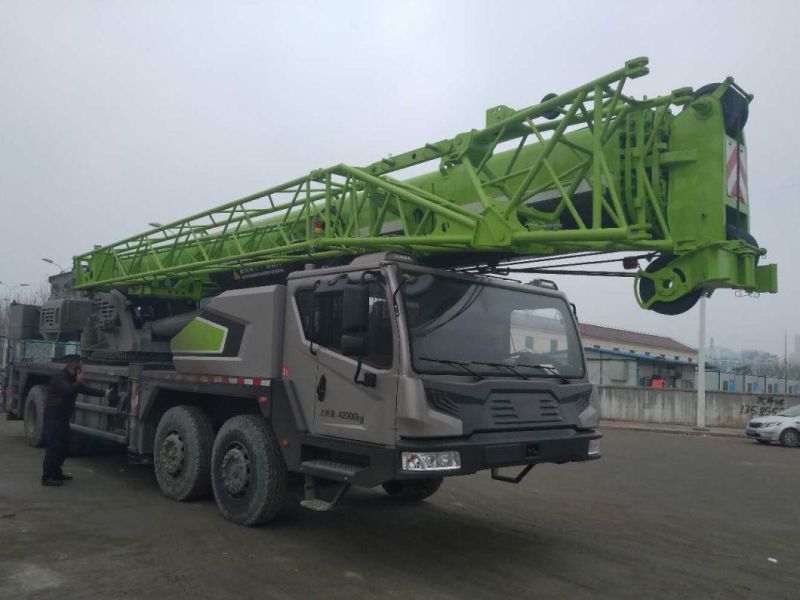

Product Show
Company information
Weichai 9L engine + Fa st 9-speed gearbox, 5 U-shaped main boom (11.6~45) m, 2 jibs (9.5/16m);
independent double winch, two-stage outrigger double-sided control, with control room pitch mechanism;
gear pump hydraulic system, hydraulic control operation;
fixed counterweight 5.5 tons with 3 tons auxiliary counterweight; standard three-color lights, vehicle backup camera;
Standard 50 tons main hook and 4 tons auxiliary hook.FEATURES AT A GLANCE1. High Performance & ReliabilityPRODUCT SPECIFICATIONS
| ZTC550H | |
| Max. rated total lifting capacity | 55 ton |
| Max. lifting moment | 2107 kN m |
| Moment of full extension boom | 1341 kN m |
| Full extension boom | 46 m |
| Boom section number | 5 |
| Max. travel speed | 90 km/h |
| Driving weight | 44.5 ton |
| Dimension | 14390 * 2800 * 3800 mm |
| Engine power | 276/1900 kW/r/min |
| Gradient capacity(%) | 70 |
| Diesel engine | Cunmmins 6BTAA5.9-C178 |
| Rated output(KW) | 133 |
