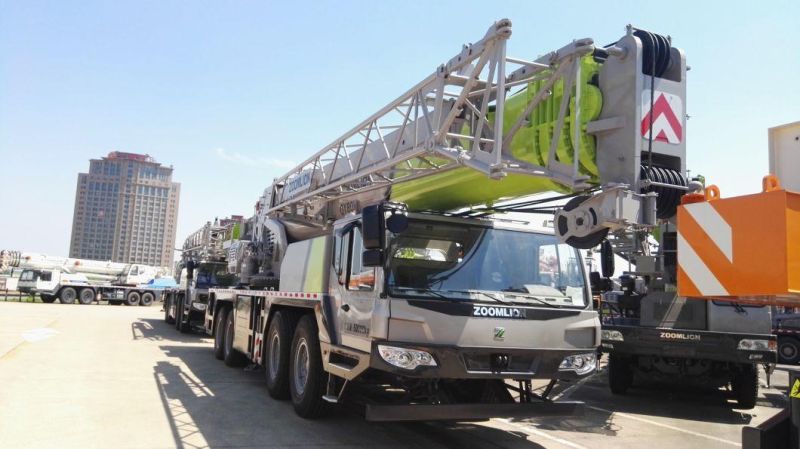

• Model NO.：ZTC200V451
• Type：Straight Arm
• Max. Rated Total Lifting Capacity Kg：2000
• Max. Load Moment of Basic Boomkn.M：850
• Max. Lifting Height of Main Boom M：32.60
• Max. Lifting Height of Fly Jibm：40.4
• Max. Speed of Single Rope on Main Winchm：120
• Transport Package：Nude
• Specification：12320*2500*3400mm
• Trademark：Zoomlion
• Origin：Hunan, China
• HS Code：87051091
• Production Capacity：100units,Month

Item

Value

Remarks

Working performance specification

Max. rated total lifting capacity kg

20000

Max. load moment of basic boomkN.m

850

Max. load moment with max. main boom lengthkN.m

458.6

Max. lifting height of main boom m

32.60

Deformation of boom is not taken into consideration.

Max. lifting height of fly jibm

40.4

Working speed

Max. speed of single rope on main winchm/min

120

The 4th layer of drum

Derricking time of booms

60

Telescopic time of booms

70

Slewing speedr/min

0~1.8

Traveling specification

Max. traveling speedkm/h

70

Max. gradeability%

27

Min. turning circle diameterm

20

Min. ground clearancemm

250

Limits for exhaust pollutants and smoke

Comply with related standards

GB3847-2005

GB17691-2005

(Stage III)

Oil consumption per hundred kilometersL

40

Mass specification

Deadweight of crane in traveling conditionkg

26080

Complete vehicle kerb masskg

25885

Front axle loadkg

6380

Rear axle loadkg

19700

Dimension specification

Overall dimensions (L×W×H) mm

12320×2500×3400

Base on outriggersm

4.95

Distance between outriggersm

5.6

Main boom lengthm

10.2~32

Main boom angle°

-2~80

Fly jib lengthm

8

Offset angle of fly jib°

0, 30

Chassis

Model

ZLJ5261

Class

II

Feature No.

ZLJ5261H3.2

Engine

Model

WP6.240

Rated powerkW/r/min

176/2500

Max. output torque N.m/r/min

800/1300~1500

Manufacturer

Changsha Zoomlion Heavy Industry Science & Technology Development Co., Ltd.
