2020 Top Sale Stc500c 50ton Truck Crane Good Price for Sale
Acntruck Automobile Sales (Shanghai) Co., Ltd.- After-sales Service：1 Year
- Warranty：1 Year
- Certification：CE, ISO9001
- Condition：New
- Maximum Lifting Height：>40m
- Maximum Lifting Weight：>16t
Base Info
- Model NO.：STC500C
- Shaft Number：3
- Crane Jib：Five-Arm
- Type：Straight Arm
- Model No.：Stc500c
- Rated Loading Capacity：50ton
- Rated Lifting Moment：1764kn.M
- Max. Lifting Height：57.6m
- Span：30m
- Rated Power：247,2200tkw,(R,Min)
- Max. Grade Ability：40%
- Power Source：Hydraulic
- Application：Construction Usage
- Sling Type：Wire Rope
- Engine：Euro III, IV
- Transport Package：Nude Packing or by Container
- Specification：13750mmx2800mmx3520mm
- Trademark：ACNTRUCK
- Origin：Hunan, China
- HS Code：8426990000
- Production Capacity：100units, Month
Description
Basic Info.
Model NO. STC500C Shaft Number 3 Crane Jib Five-Arm Type Straight Arm Model No. Stc500c Rated Loading Capacity 50ton Rated Lifting Moment 1764kn.M Max. Lifting Height 57.6m Span 30m Rated Power 247/2200tkw/(R/Min) Max. Grade Ability 40% Power Source Hydraulic Application Construction Usage Sling Type Wire Rope Engine Euro III/ IV Transport Package Nude Packing or by Container Specification 13750mmx2800mmx3520mm Trademark ACNTRUCK Origin Hunan, China HS Code 8426990000 Production Capacity 100units/ MonthProduct Description
2020 TOP Sale STC500C 50ton Truck Crane good price for sale
Our company will offer you the high quality proudcts with a low price, Quick delivery,and professional after-sale service
Product Description:

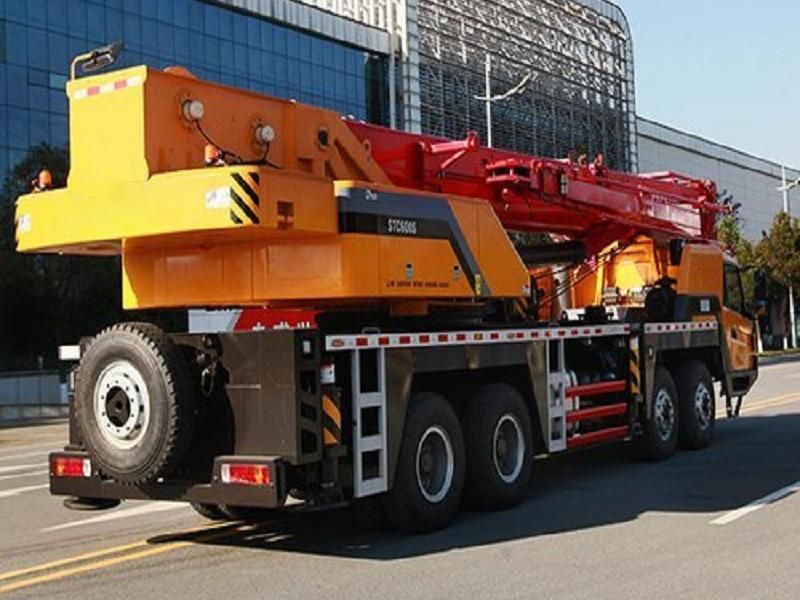

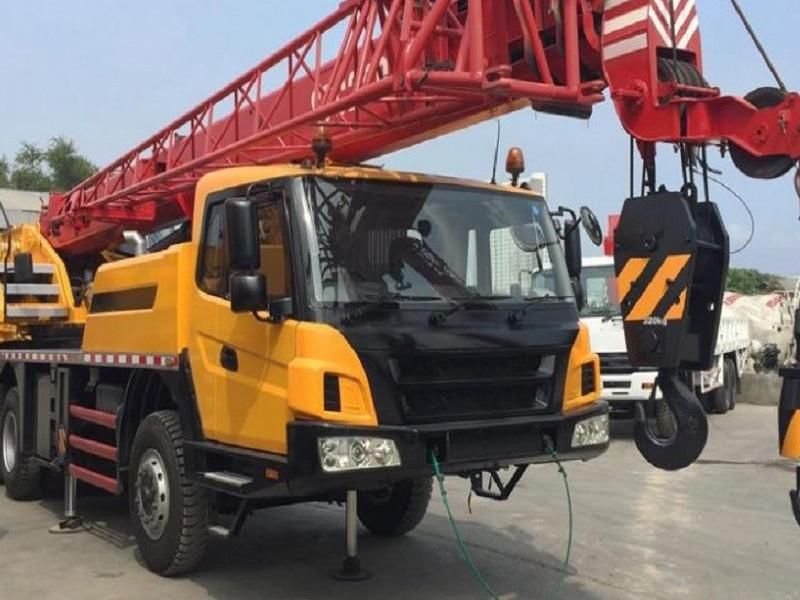

Truck Crane (STC500C)
1. Specialized boom of U-type cross section has features of light deadweight, better strength and strong lifting capacity.
2. Advanced built-in boom head, strong structural members and lower sliders with larger area contribute to better stress-bearing capacity and more smooth telescoping movement, and efficiently prevent boom torsion after side loading.
3. Telescoping mechanism is designed reliably. In the telescoping mechanism, both rotation-resistant rope used for thick cable and guide pulley bearing are imported parts and have reliable performance.
4. Excellent welding technology for structural members. Welding robot with advance process used for key welding make reliable quality products.
Main Parameters:
| Category | Item | Unit | Parameter | |
| Outline Dimensions | Overall length | mm | 13750 | |
| Overall width | mm | 2800 | ||
| Overall height | mm | 3520 | ||
| Wheel base | 1st and 2nd Axle | mm | 1470 | |
| 2nd and 3rd Axle | mm | 4105 | ||
| 3rd and 4th Axle | mm | 1350 | ||
| Track | Front wheel | mm | 2304 | |
| Rear wheel | mm | 2075 | ||
| Weight | Total vehicle mass in travel configuration | kg | 41000 | |
| Axle load | 1st and 2nd Axle | kg | 15000 | |
| 3rd and 4th Axle | kg | 26000 | ||
| Power | Engine rated power | kw/(r/min) | 247/2200 | |
| Engine rated torque | N.m/(r/min) | 1350/1400 | ||
| Engine rated speed | r/min | 2200 | ||
| Travel Performance | Max. travel speed | km/h | 75 | |
| Min. travel speed | km/h | 3 | ||
| Min. turning diameter | m | 24 | ||
| Min. turning diameter at boom tip | m | 26.8 | ||
| Min. ground clearance | mm | 261 | ||
| Approach angle | ° | 17.5 | ||
| Departure angle | ° | 11.6 | ||
| Braking distance (at 30 km/h ) | m | ≤10 | ||
| Max. grade ability | % | 40 |
