Ouco High Quality Knuckle and Telescopic Marine Crane with 0.6t Load Capacity and 8m Jib Length

JIANGSU OUCO HEAVY INDUSTRY AND TECHNOLOGY CO., LTD.
  • Operation Form：Remote Control
  • Warranty：1 Year
  • Certification：CE, ISO9001, ABS,BV,CCS,Rmrs,Dnv
  • Max. Working Radius：8m
  • Min. Working Radius：1.25m
  • Hoisting Speed：0-15 M,Min

Base Info

  • Model NO.：OUCO-0.6T8M-KTB
  • Hoisting Height：25m
  • Slewing Speed：0~1 R,Min
  • Slewing Angle：360 Degree
  • Luffing Time：~45s
  • Fold Boom Time：~20s
  • Luffing Angle：0~75 Degree
  • Condition：New
  • Material：Steel
  • Application：Vessel,Port,Offshore
  • Type：Folding and Telescopic Boom
  • Transport Package：Nude
  • Specification：steel
  • Trademark：OUCO
  • Origin：China
  • Production Capacity：100 Sets,Year

Description

1SWL0.6t8m2Max. Working radius8m3Min. Working radius3m4Hoisting speed0-12m/min5Hook travel20m6Slewing speed0-1r/min7Slewing angle360º free8Luffing time~35s9Luffing angle0~75º10Design temperature-20º~+45º11Working condition

TRIM<=2º

HEEL<=5º

12Dead weight1250Kg13Motor

Power : 15Kw

Speed 1450r/min

Power resource AC380V/50Hz

14Advised oil flow30L/min

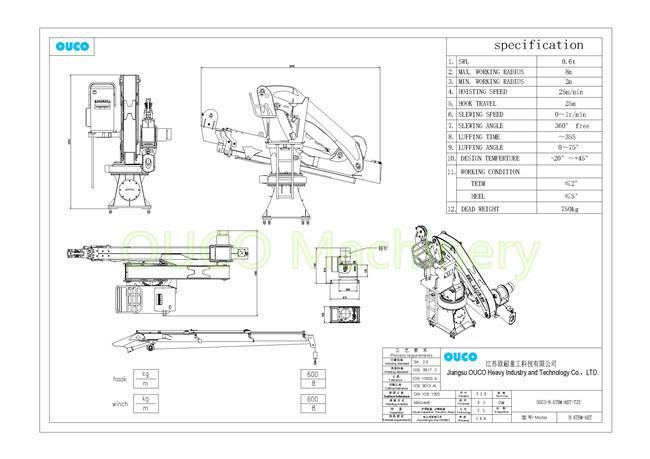

Genernal Arrangement

Ouco High Quality Knuckle and Telescopic Marine Crane with 0.6t Load Capacity and 8m Jib Length

similar products

Ouco High Quality Knuckle and Telescopic Marine Crane with 0.6t Load Capacity and 8m Jib Lengthproduction process

Ouco High Quality Knuckle and Telescopic Marine Crane with 0.6t Load Capacity and 8m Jib Length
Ouco High Quality Knuckle and Telescopic Marine Crane with 0.6t Load Capacity and 8m Jib Length

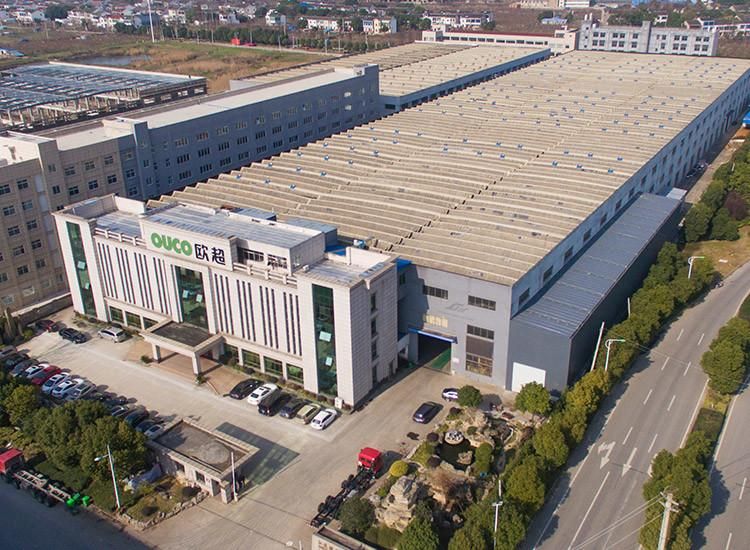

Company Information
OUCO Industry, was established in February 1984, covers an area of 48,000 square meters, construction area is 35,000 square meters. OUCO headquartered in crane hometown of Jiangsu Province where representing most advanced machinery manufacturing level in China.  OUCO has more than 150 employees, 20 were technical staff. Among that has five senior titles, 10 mid-level titles, and a total of 50 welder (who has got CCS, ABS and other main institutions' certification). It also has professional organization certificated flaw detection staff, the quality system audit staff, and inspection personnel, etc.


FAQ

1. Q:Can this type work in hazardous environment?
    A:Sure! We can customize for you, acid proof or explosion proof, no problem for that.
2. Q:Can you provide the serious lifting tools?
    A:Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!
3. Q:How can we install the crane?
    A:Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
4. Q:Safety device
    A:Overload limiter, Limit Switch (lifting and traveling), Interlock protection device.
