• Model NO.：QY25V
• Type：Straight Arm
• Base Boom：10.5m
• Full- Extended Boom：33.3m
• Slew Radius：3385mm
• Fuel Consumption for 100km：37L
• Outrigger Longitudinal Distance Span：5.91m
• Boom Elevating Time：40s
• Rear Axle：23200kg
• Max. Slewing Speed：2r,Min
• Max.Total Lifting Capacity：25t
• Transport Package：Nude
• Specification：130cbm
• Trademark：ZOOMLION
• Origin：Hunan
• HS Code：87051091
• Production Capacity：200units

ItemUnitValueRemarksWorking performanceMax. rated lifting capacitykg25000 Max. load moment of basic boomkN.m950 Max. load moment of main boom(fully extended)kN.m525 Max. lifting height of main boomm38.7These parameters do not include deflection of main boom and jibMax. lifting height of jibm46.58Working speeds    Max. hoist rope speed(Main winch)m/min135At the 3rd  layerMax. hoist rope speed(Auxiliary winch)m/min100At the 3rd   layerBoom derricking up times40 Boom derricking up times120 Slewing  speedr/min2.6 Driving
parametersMax. driving  speedkm/h72 Max. gradeability%34 Min. turning diameterm≤20 Min.  ground clearancemm235 Limits for exhaust pollutants and smoke Comply with related standardsGB3847-2005  GB17691-2005  National stage IIIOil consumption per hundred kilometersL38 MassDeadweight in driving conditionkg29400 Complete vehicle kerb masskg29270 Front axle loadkg6370 Rear axle loadkg22900 DimensionsOverall dimensions(L×W×H)mm12510×2500×3455 Outrigger spread(L)m5.15 Outrigger spread(W)m6.1 Main boom lengthm10.3-38.5 Boom angle°-2-80 jib lengthm8 Offset°0,30 ChassisModel ZLJ5323JQZ Type IICode: ZLJ5323JQZV3EngineModelkw/r/minWP6.240 Rated power n.m/r/min176/2300 Max. output torque 900/1400 - 1600

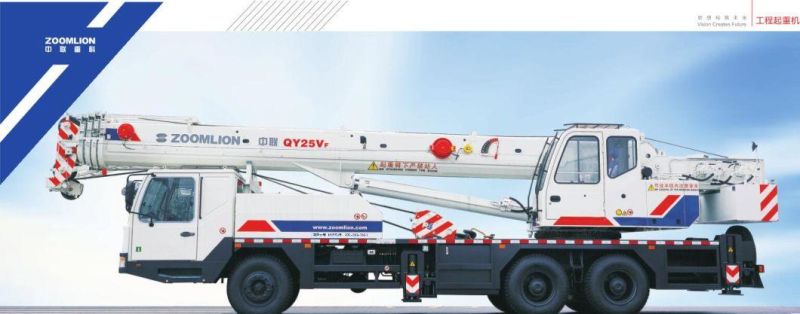

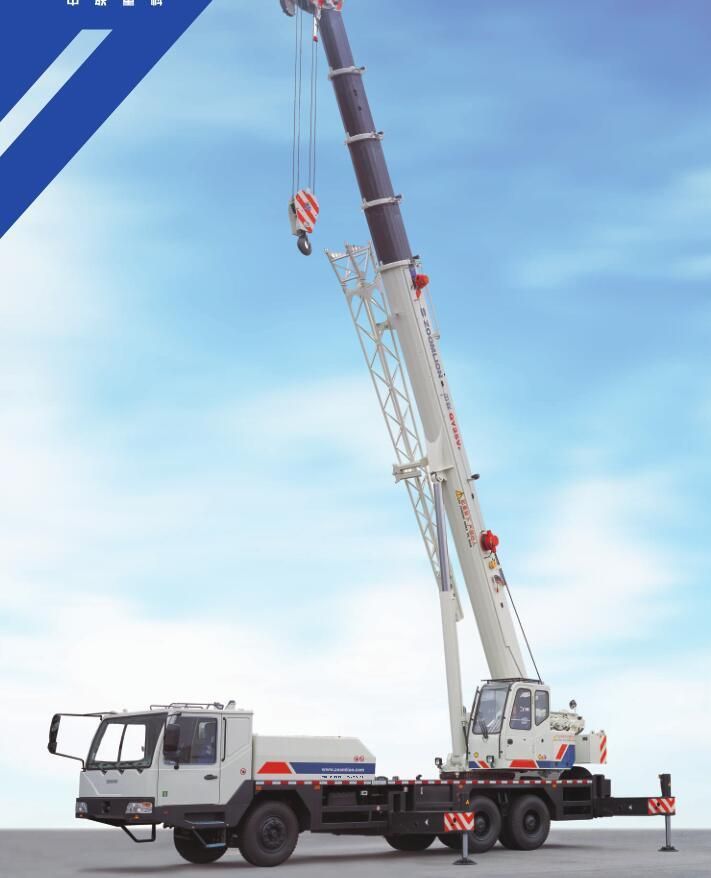

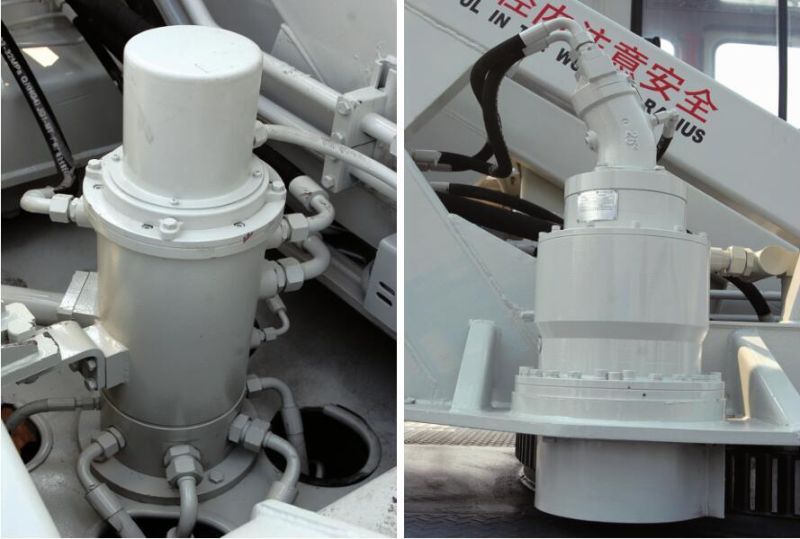

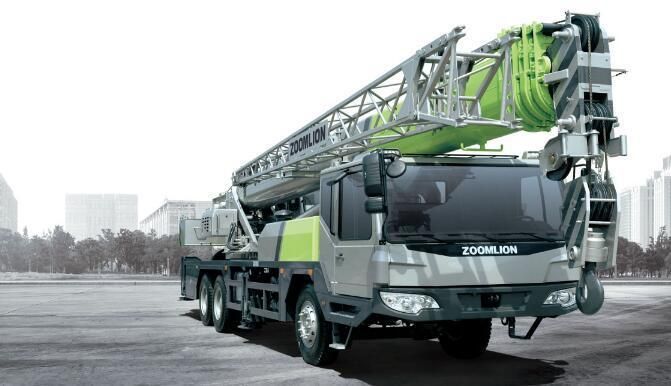

Photos:

1.. Which countries do we export to?
Asia: Vietnam, India, Indonesia, Pakistan, Kazakhstan, Uzbekistan, etc.
Europe: Russia, Belarus, Ukraine, Lithuania, Saudi Arabia, etc.
South America: Brazil, Chile, Paraguay, Argentina, etc.
Africa: South Africa, Ethiopia, Libya, Ghana,Algeria,etc.

2.What are our advantages compared with other manufacturers/factories?
1)Reliable Quality: Carefully select regular manufacturers for supporting spare parts,like engines,bridge,transmissions,and many parts designed and produced by ourselves,
always adapting the best materials.
2)Competitive Price: Concentration of mechanized production in large quantities reduce
production cost to ensure that our price is competitive.
3)Service Team: First, our sales managers are online 24 hours,ready to answer your
questions at any time. Second, professional maintenance team with senior technicians,
ready to provide support services to users and dealers. Most problems can be solved
within 24 hours.
4)Fast Delivery:Under normal circumstances,we can delivery with 10 working days in
factory after receiving pre-payment.
3.Which payment terms can we accept?
Normally we can work on T/T or L/C.
1)On T/T term, 30% payment is required in advance for production, 70% balance shall
be paid before delivery or against the copy of original B/L for old long cooperation clients.
2)On L/C term, 100% irrevocable L/C at sight without "soft clauses" can be accepted.
4. How long is the validity of our quotation?
As a reliable supplier, basically our price remains stable through one year, we only adjust
our price based on two situations:
1)The rate of USD
2)TheThe price of material
