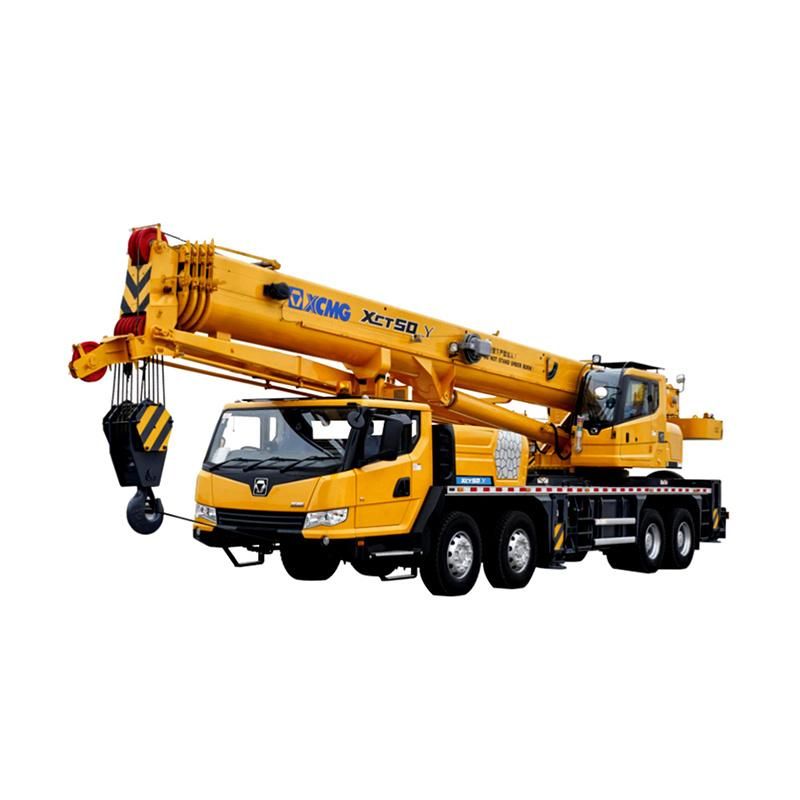

• Model NO.：Xct50
• Shaft Number：3
• Crane Jib：Five-Arm
• Type：Straight Arm
• Engine Rated Output：276,2200
• Rated Loading Capacity：50ton
• Wheel Base：2304+2075
• Max. Travel Speed：90km,H
• Max. Lifting Height：59.5 M
• Tower Crane Type：Under Slewing Cranes
• Working Type：Folding
• Application：Construction Usage
• Engine Model：ISO9001
• Cabin：Cab-Over-Engine with Sleeping Berth
• Gearbox：6 Gear Synchronizer Gearbox
• Machine：Lifting Equipment 50 Tons
• Delivery Time：30days After Deposit Payment
• Hydraulic Parts：Telescopic Boom Mobile Crane Made
• Colour：Yellow
• Transport Package：Nude
• Specification：13930*2780*3630mm
• Trademark：Famous
• Origin：China
• Production Capacity：500pices,Year

Max. load momentBase boomKN.m2009Fully-extended boomKN.m1129Boom lengthBase boomm11.4Fully-extended boomm43.5Fully-extended boom + Jibm59.5Max. total rated lifting capacity t50Min. rated working radius m3Turning radius at turntable tail mm3800Max. load momentBase boomKN.m2009Fully-extended boomKN.m1129Outrigger spanLongitudinalm6.1Lateralm7.1Hoist heightBase boomm11.9Fully-extended boomm44Fully-extended boom + Jibm58.1Boom lengthBase boomm11.4Fully-extended boomm43.5Fully-extended boom + Jibm59.5Engine Model WD615.338 Engine rated powerkw/(r/min)276/2200 Engine rated torqueN.m/(r/min)1500/1300-1600 Max. travel speedkm/h85
