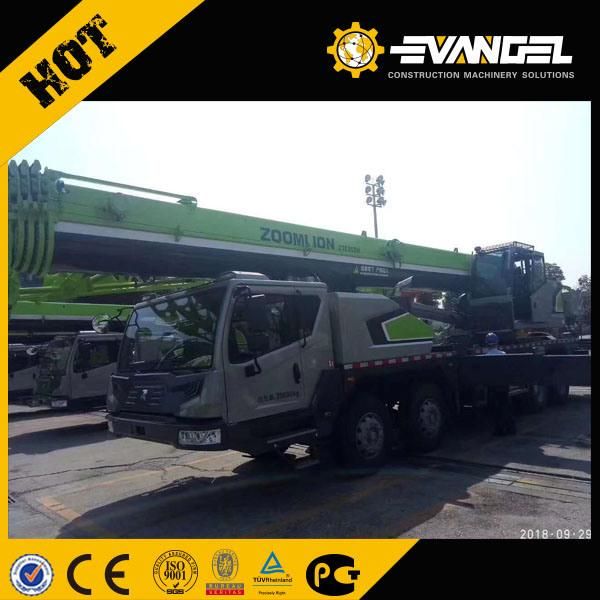

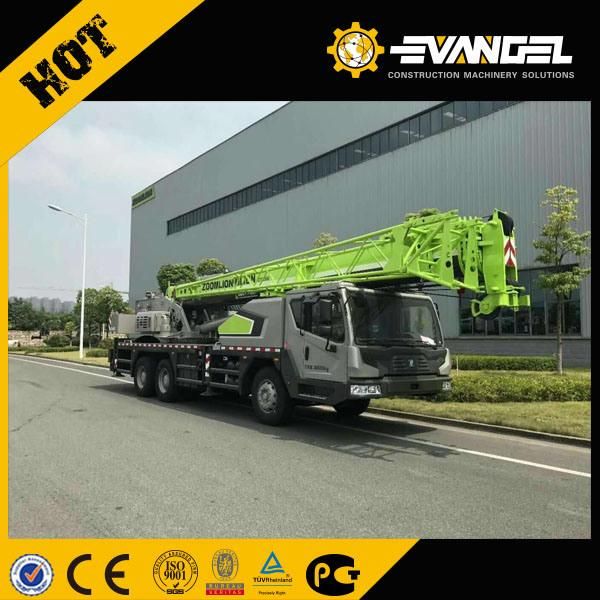

• Model NO.：ZTC250E552
• Type：Folding
• Max. Lifting Height of Basic Boomm：11.5m
• Max. Lifting Height of Main Boomm：33.8m
• Max. Lifting Height of Fly Jibm：41.6m
• Max. Gradeability：40%
• Transport Package：Nude Package
• Specification：13000x2500x3450mm
• Trademark：Zoomlion
• Origin：Hunan, China
• HS Code：8705109100
• Production Capacity：50units,Month

Item

Value

Remarks

Working performance specification

Max. rated total lifting capacitykg

25000

Max. load moment of basic boom kN.m

980

Max. load moment with max. main boom

lengthkN.m

573

Max. lifting height of basic boomm

11.5

Max. lifting height of main boomm

33.8

Deformation of main boom is not taken into consideration.

Max. lifting height of fly jibm

41.6

Working speed

Max. speed of single rope on main winch

m/min

120

The 4th layer of drum

Max. speed of single rope onauxiliary winchm/min

105

The 2nd layer of drum

Derricking time of booms

40

Telescopic time of booms

60

Slewing speedr/min

0~2.2

Traveling specification

Max. traveling speedkm/h

72

Max. gradeability%

40

Min. turning circle diameterm

20

Min. ground clearancemm

220

Limits for exhaust pollutants and smoke

Comply with related standards

GB3847-2005 GB17691 -2005

(Stage III)

Oil consumption per hundred kilometersL

46

Mass specification

Deadweight of crane in traveling condition

kg

28930

Complete vehicle kerb masskg

28800

Front axle loadkg

6300

Rear axle loadkg

22630

Dimension specification

Overall dimensions(L×W×H)mm

13000×2500×3450

Base on outriggersm

5.36

Distance between outriggersm

6.1

Main boom lengthm

10.5~33.3

Main boom angle°

-2~80

Fly jib lengthm

8

Offset angle of fly jib°

0 , 30

Chassis

Model

ZLJ5314

Class

II

Feature No.

ZLJ5314D3.1

Engine

Model

WP10.270

Rated powerkW/r/min

199/2200

Max. output torqueN.m/r/min

1100/1200~1600

Manufacturer

Changsha Zoomlion Heavy Industry Science & Technology Development Co., Ltd.
