Factory Zoomlion 85 Ton Swivel Pickup Mobile Crane Truck Crane Zmc85 Model Lifiting Crane for Promotion

Anhui Heavy and Light Industries International Co., Ltd.
  • After-sales Service：Provided
  • Warranty：1 Year
  • Certification：GS, RoHS, CE, ISO9001
  • Condition：New
  • Maximum Lifting Height：>40m
  • Maximum Lifting Weight：>16t

Base Info

  • Model NO.：Zmc85
  • Shaft Number：4
  • Crane Jib：Five-Arm
  • Type：Straight Arm
  • Service：Online and Local Service
  • Parts：Provided with Filters
  • Selling Point：High Operating Efficiency
  • OEM：Supported with Color, Language etc
  • Transport Package：Nude, Roro, Container
  • Specification：14500*2800*3850 mm
  • Trademark：ZOOMLION
  • Origin：China
  • HS Code：8426990000
  • Production Capacity：5000,Month

Description

Overview Product DescriptionMain ParameterWorking performanceMax. rated lifting capacitykg85000Max. load moment of basic boomkN.m2764Max. load moment of max. length boom boom(fully extended)kN.m1376Max. load moment of basic boomm12.8Max. lifting height of main boomm46.4Max. lifting height of jibm62.5Working speeds                           Max. hoist rope speed(Main winch)m/min140 Drum 4th  layerMax. hoist rope speed(Auxiliary winch)m/min120 Drum 2nd   layerBoom derricking up times55Boom telescoping out times110Slewing  speedr/min0 - 1.7Driving parametersMax. driving  speedkm/h75Max. gradeability%37Turning diameterm≤20Min.  ground clearancemm300Oil consumption per hundred kilometersL48MassDeadweight in driving conditionkg48000Complete vehicle kerb masskg47870Front axle loadkg24000Rear axle loadkg24000DimensionsOverall dimensions(L×W×H)mm14500×2800×3850Outrigger spread(L)m6.15Outrigger spread(W)m

Fully extended:7.80,   Intermediately

extended:5.17

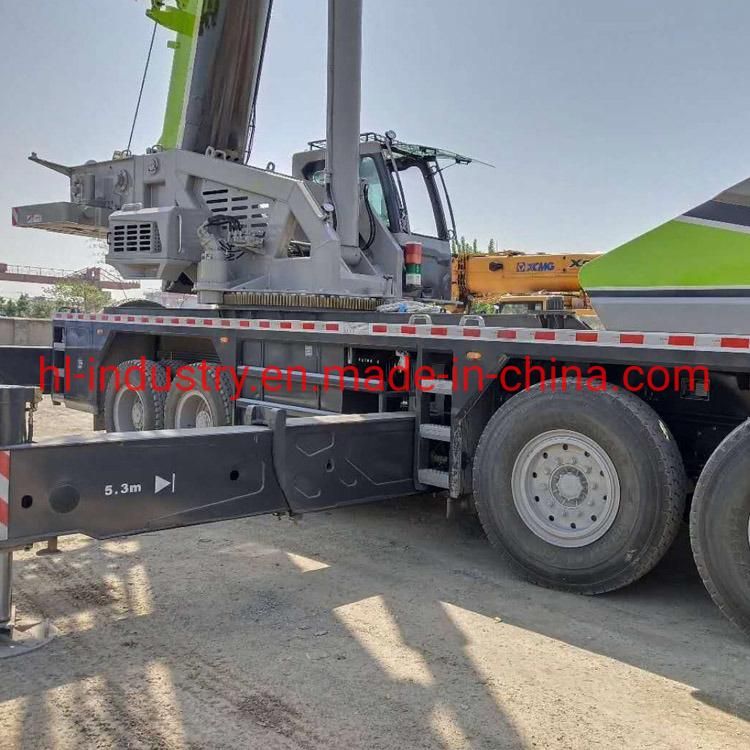

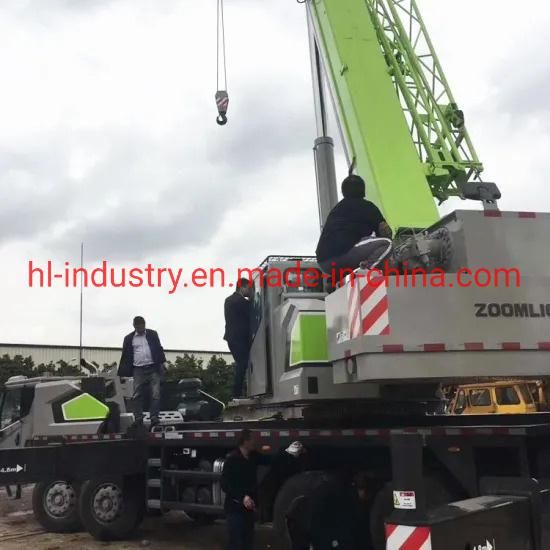

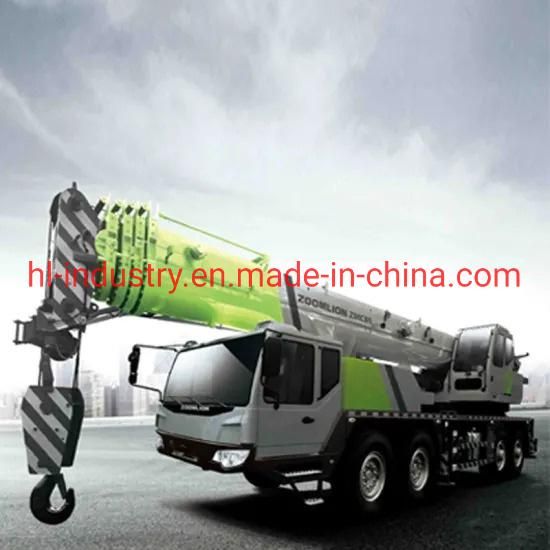

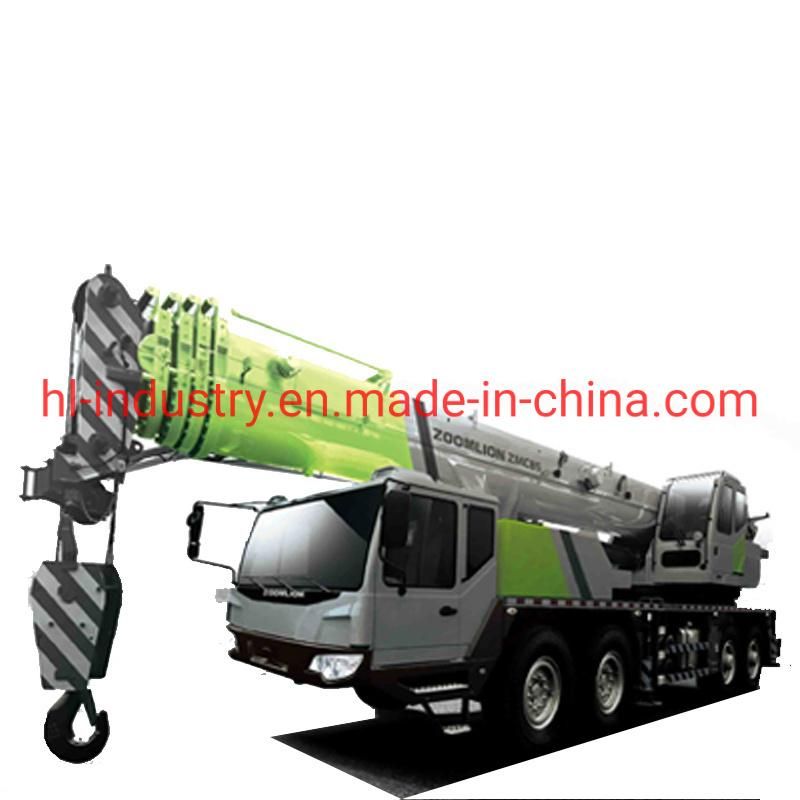

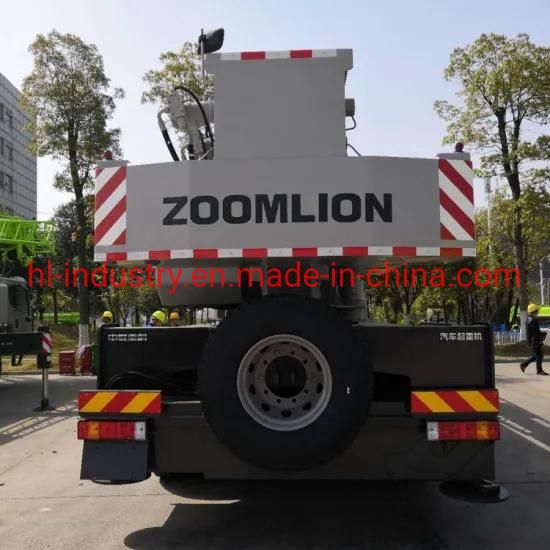

Tail slewing radiusmm4300Main boom lengthm12.0 - 46.0Boom angle°-2 - 80jib lengthm9.5,16.0Offset°0,15,30 Detailed PhotosFactory Zoomlion 85 Ton Swivel Pickup Mobile Crane Truck Crane Zmc85 Model Lifiting Crane for PromotionFactory Zoomlion 85 Ton Swivel Pickup Mobile Crane Truck Crane Zmc85 Model Lifiting Crane for PromotionFactory Zoomlion 85 Ton Swivel Pickup Mobile Crane Truck Crane Zmc85 Model Lifiting Crane for PromotionFactory Zoomlion 85 Ton Swivel Pickup Mobile Crane Truck Crane Zmc85 Model Lifiting Crane for PromotionFactory Zoomlion 85 Ton Swivel Pickup Mobile Crane Truck Crane Zmc85 Model Lifiting Crane for PromotionFactory Zoomlion 85 Ton Swivel Pickup Mobile Crane Truck Crane Zmc85 Model Lifiting Crane for Promotion



Company Profile

Factory Zoomlion 85 Ton Swivel Pickup Mobile Crane Truck Crane Zmc85 Model Lifiting Crane for PromotionFactory Zoomlion 85 Ton Swivel Pickup Mobile Crane Truck Crane Zmc85 Model Lifiting Crane for PromotionFactory Zoomlion 85 Ton Swivel Pickup Mobile Crane Truck Crane Zmc85 Model Lifiting Crane for PromotionFactory Zoomlion 85 Ton Swivel Pickup Mobile Crane Truck Crane Zmc85 Model Lifiting Crane for Promotion

Our Advantages

FAQ

1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC,
3: What about the delivery time?
A: 7-20 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs
