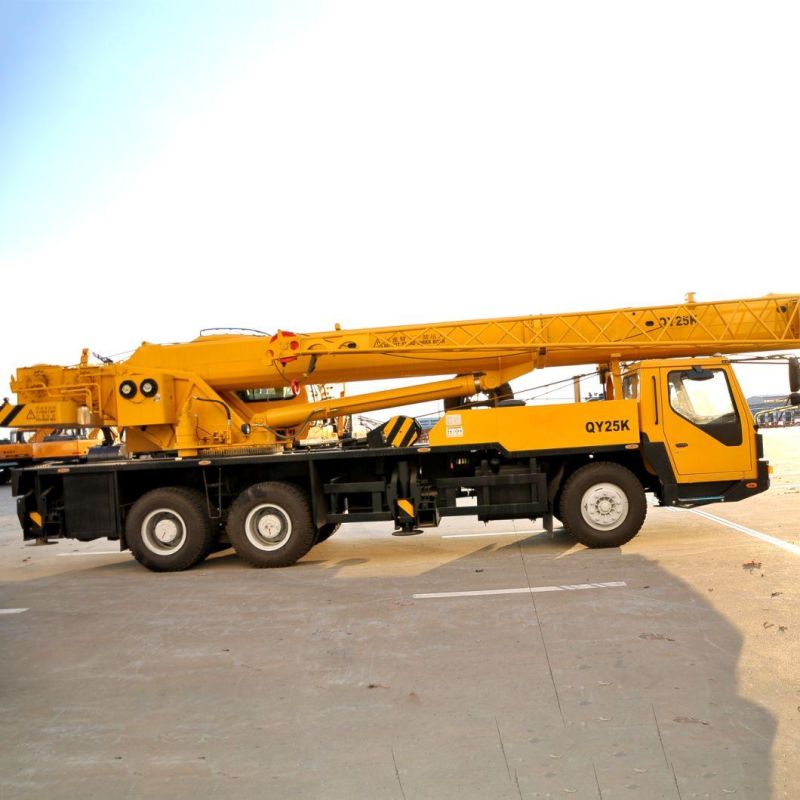

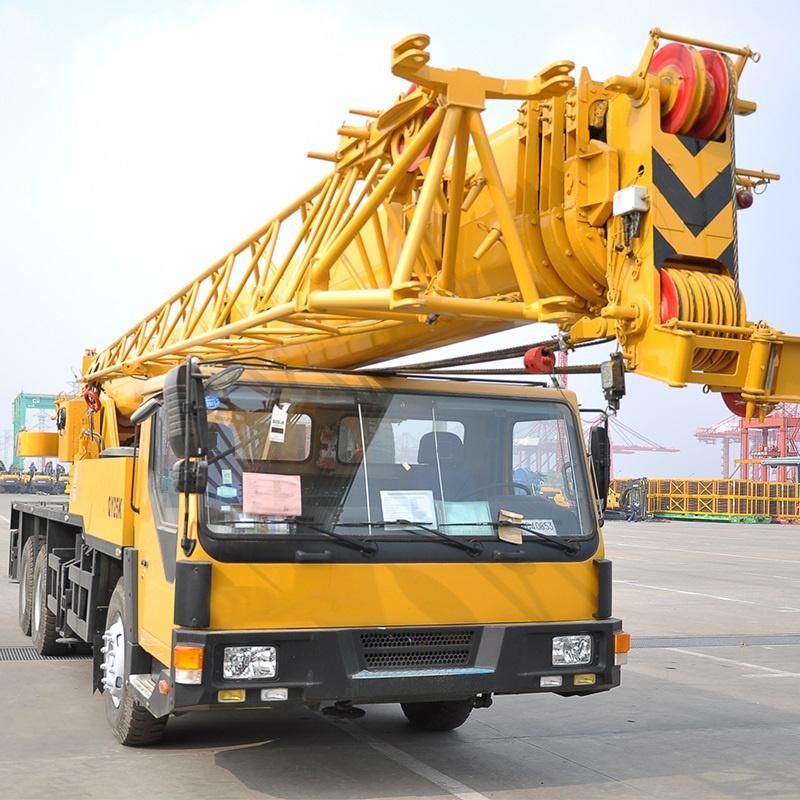

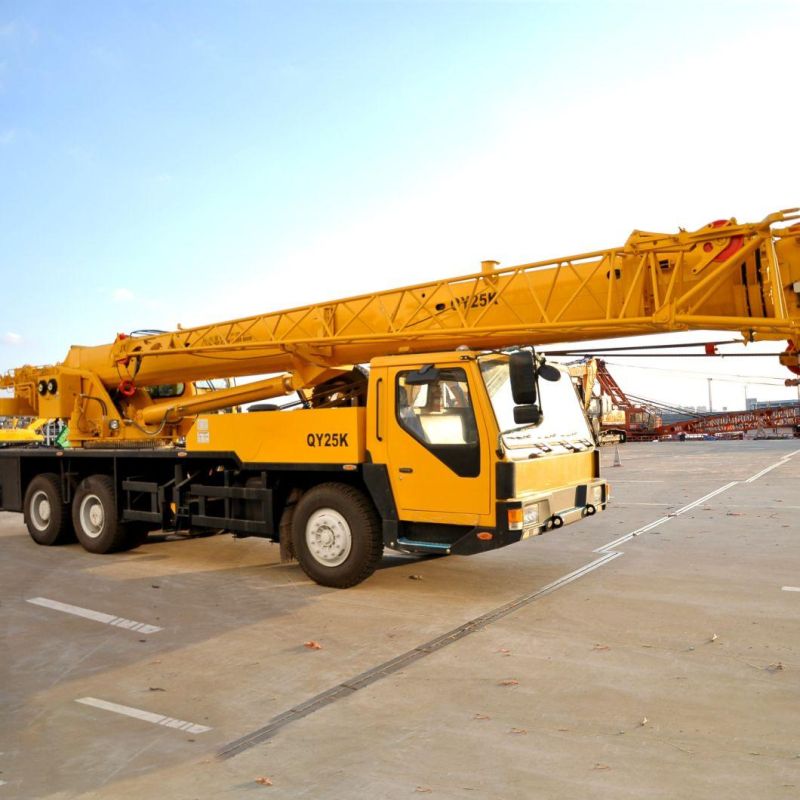

• Model NO.：QY25K5-1
• Shaft Number：3
• Crane Jib：Five-Arm
• Type：Straight Arm
• Total Weight in Travel：31750kg
• Front Axle Load：6550kg
• Rear Axle Load：25200kg
• Max. Travel Speed：80km,H
• Min. Turning Diameter：22m
• Min. Ground Clearance：260mm
• Max. Grade Ability：40%
• Min. Rated Working Radius：3000mm
• Max. Lifting Torque：961kn.M
• Base Boom：10.4m
• Fully Extended Boom：39.5m
• Fully Extended Boom+Jib：47.8m
• Lateral Outrigger Span：6m
• Transport Package：Nun
• Specification：12300*2500*3350mm
• Trademark：X-
• Origin：China
• HS Code：87051091
• Production Capacity：1000,Year

DimensionUnitQY25K5-IOverall lengthmm12300Overall widthmm2500Overall heightmm3350Weight  Total weight in travelkg31750Front axle loadkg6550Rear axle loadkg25200Power  Engine model SC8DK280Q3WD615.329Engine rated powerkW/(r/min)206/2200213/2200Engine rated torqueN.m/(r/min)1112/14001160/1400Travel  Max. travel speedkm/h80Min. turning diameterm22Min. ground clearancemm260Approach angle°16Departure angle°13Max. grade ability%40Fuel consumption for 100kmL≈37Main performance  Max. rated total lifting capacityt25Min. rated working radiusmm3000Turning radius at turntable tailm3.065Max. lifting torquekN.m961Base boomm10.4Fully extended boomm39.5Fully extended boom+jibm47.8Longitudinal outrigger spanm5.14Lateral outrigger spanm6Working speed  Boom luffing times68Boom full extension times150Max. swing speedr/min2.5Max. speed of main winch (single rope) (no load)m/min125Max. speed of aux. winch (single rope) (no load)m/min125
