• Model NO.：Qy25K5d
• Shaft Number：4
• Crane Jib：Five-Arm
• Type：Small Crane
• Size：13750*2800*3520mm
• Engine Model：Wd615.334(Domestic III)
• Rated Power：247kw
• Weight in Travel：29050kg
• Engine Rated Torque：1350,1400n.M,(R,Min)
• Fully Extended Boom+ Jib：57.7m
• Max.Lifting：50t
• Boom Type：U Style
• Boom Luffing Time：88s
• Color：Yellow
• Transport Package：Nude
• Specification：ISO, CCC, Gost
• Trademark：ORIEMAC
• Origin：Jiangsu, China
• HS Code：87051092
• Production Capacity：3000PCS,Month

Basic Info.

Model NO. Qy25K5d Shaft Number 4 Crane Jib Five-Arm Type Small Crane Size 13750*2800*3520mm Engine Model Wd615.334(Domestic III) Rated Power 247kw Weight in Travel 29050kg Engine Rated Torque 1350/1400n.M/(R/Min) Fully Extended Boom+ Jib 57.7m Max.Lifting 50t Boom Type U Style Boom Luffing Time 88s Color Yellow Transport Package Nude Specification ISO, CCC, Gost Trademark ORIEMAC Origin Jiangsu, China HS Code 87051092 Production Capacity 3000PCS/Month

Product Description

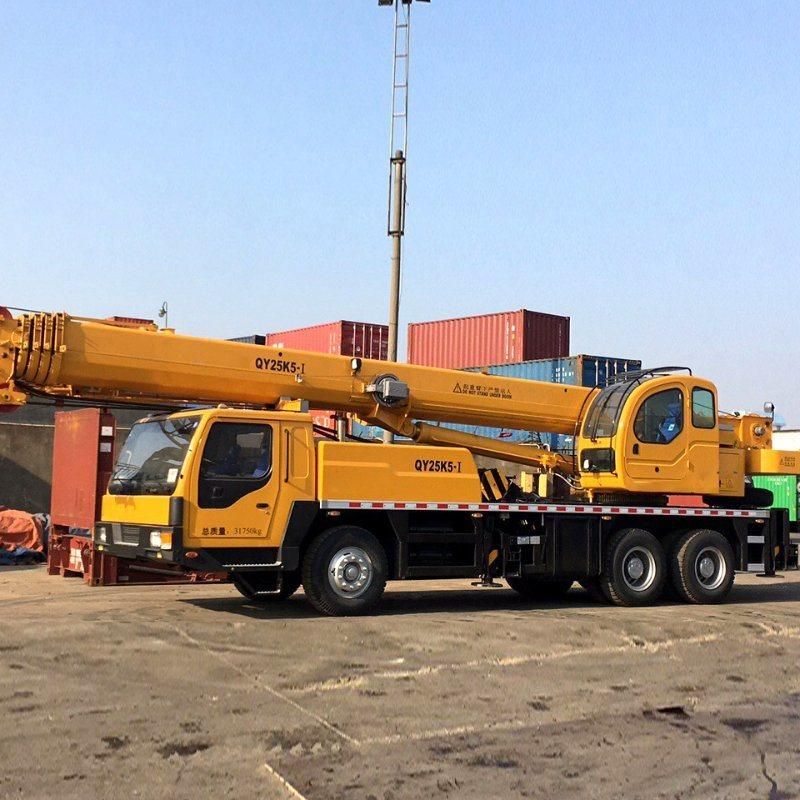

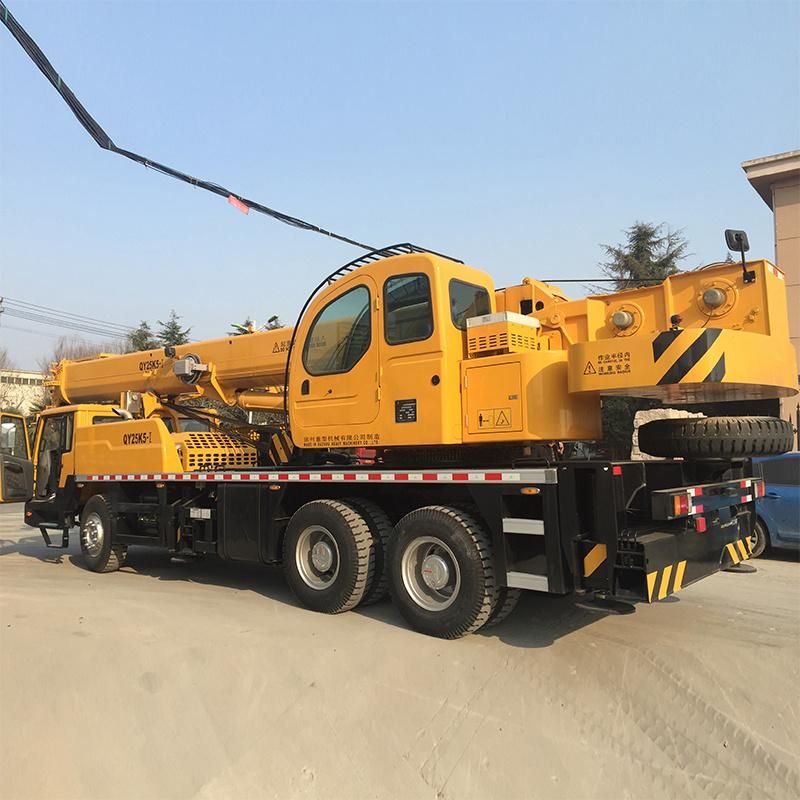

Brand New 25 Ton Hydraulic Construction Mobile Truck Crane Qy25K5d in Azerbaijan

The innovative jib system adopts embedded block, plug-in boom head and international advanced U section jib, which has excellent lifting performance and safe and reliable lifting work.
The unique stretch and retract technique avoids the bend of the core pipe and cylinder and the break of the boom caused by misoperation, improving the safety of the operations.
Eight patent techniques ensure the smooth, high efficiency and energy conservation of the lifting, rotation, and luffing systems.
Adopt the new hydraulic motor with big torque starting point, making the secondary lifting safer.
The torque limiter adopts colorful LCD display, realizing the intelligence of the failure diagnosis. The precision is ahead of the industry.
The humanity design makes the cab and control cab more spacious, and easy to operate.
Six unique manufacturing technologies ensure the high quality.

Parameter item	QY25K5D-1
Basic arm length (mm)	10800
Extension (mm)	1724 (Xugong Automobile)/ 1711 (Qixing, Hubei)
Chassis length (mm)	10833/10846
Outrigger span (mm)	Vertical 5500 Horizontal 6400
Wheelbase (mm)	4500/1350
Wheelbase (mm)	2059/1834
Overall length (mm)	13007
Overall width (mm)	2550
Overall height (mm)	3490
Approach angle (°)	11
Departure angle (°)	13.5
Curb weight (kg)	33270
Self-disassembly and assembly balance weight (kg)
Engine Model	1.SC9DF300.1Q5 2.MC07H.32-50
Engine rated power/speed (kw r/min)	1.221/2200 2.235/2200
Working range*Maximum rated lifting capacity (m*t)	3*25
Maximum lifting moment of basic boom (kN·m)	1148
Longest main boom (m)	43
Main boom raising time (s)	52
Main boom raising time (s)	≤38
Full extension time of main boom (s)	≤100
Main lifting speed (four layers without load) (m/min)	≥135
Maximum rotation speed (r/min)	≥2.5
Maximum driving speed (km/h)	≥80
Maximum climbing ability (%)	≥40
