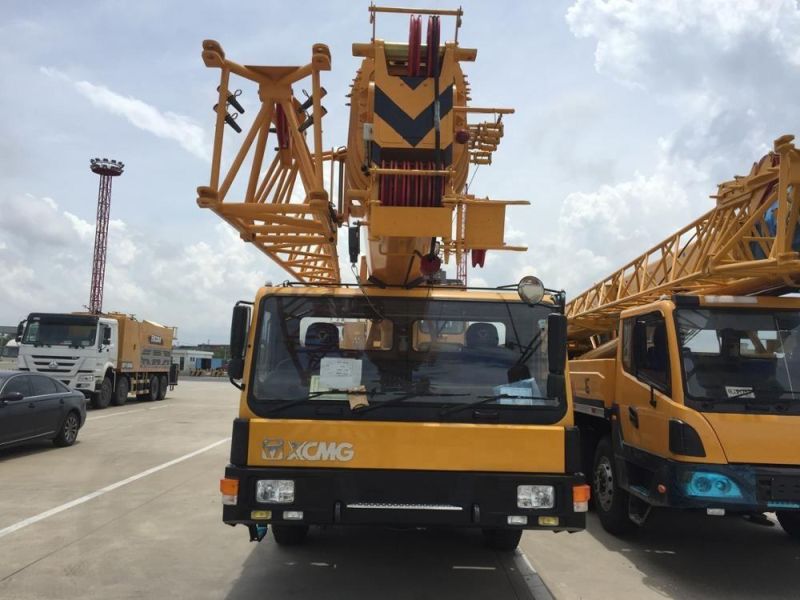

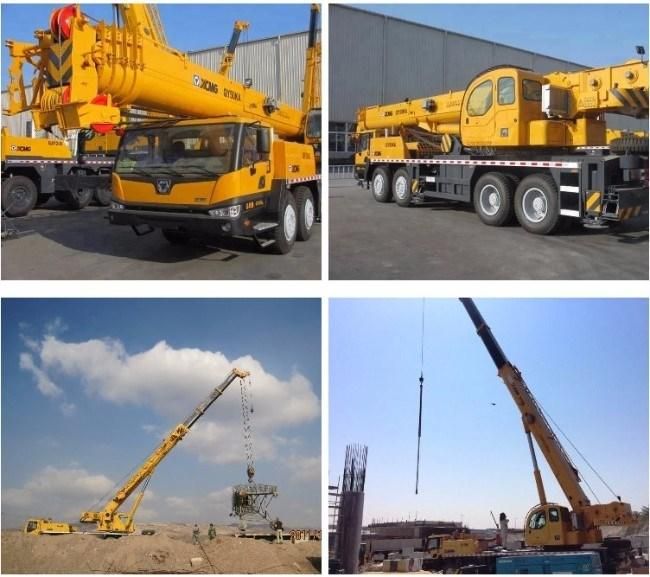

Port Using Good Quality 25 Ton Truck Crane Qy25K-II
Shanghai Super-Above Industry Holdings Co., Ltd.- Condition：New
- Maximum Lifting Height：>40m
Base Info
- Model NO.：QY25K-II
- Maximum Lifting Weight：25000kgs
- Shaft Number：3
- Crane Jib：Four-Arm
- Type：Folding
- Max.Lifting Moment：1010 Kn.M
- Rated Power：213 Kw
- Total Weight：29400 Kg
- Dimension：12100*2500*3410mm
- Base Boom：10.7 M
- Fully Extended Boom：34.19 M
- Fully Extended Boom+Jib：42.15 M
- Max. Travel Speed：75km,H
- Wheel Base：4425+1350mm
- Max. Grade Ability：30%
- Approach Angle：16degree
- Warranty：1 Year
- Aftersales Service：Oversea Service, Free Spare Parts, etc
- Transport Package：Roro Ship , Bulk Ship
- Specification：29400kg
- Trademark：Super-above
- Origin：Jiangsu, China
- HS Code：8705109100
- Production Capacity：10000units,Year
Description
Basic Info.
Model NO. QY25K-II Maximum Lifting Weight 25000kgs Shaft Number 3 Crane Jib Four-Arm Type Folding Max.Lifting Moment 1010 Kn.M Rated Power 213 Kw Total Weight 29400 Kg Dimension 12100*2500*3410mm Base Boom 10.7 M Fully Extended Boom 34.19 M Fully Extended Boom+Jib 42.15 M Max. Travel Speed 75km/H Wheel Base 4425+1350mm Max. Grade Ability 30% Approach Angle 16degree Warranty 1 Year Aftersales Service Oversea Service, Free Spare Parts, etc Transport Package Roro Ship / Bulk Ship Specification 29400kg Trademark Super-above Origin Jiangsu, China HS Code 8705109100 Production Capacity 10000units/YearProduct Description
Specifications of 25tons Hydraulic Truck Crane
We are constantly devoting ourselves to the development of the new cranes by applying the latest techniques. The new
products will have strong functions and be more adaptive to the customers. QY25K truck crane was developed by our
company in 2000. Through constant upgrade, the travel and working performance are greatly improved. The chassis
is three-axle which has strong power and cross-country capacity. The jib is optimized octagon section, which has
excellent lifting capacity. The control system adopts hydraulic proportional (mechanical) control technique.
PARAMETERS
| Dimension | Unit | QY25K-II |
| Overall length | mm | 12650 |
| Overall width | mm | 2500 |
| Overall height | mm | 3380 |
| Weight | ||
| Total weight in travel | kg | 29400 |
| Front axle load | kg | 6200 |
| Rear axle load | kg | 23200 |
| Power | ||
| Engine model | SC8DK280Q3 / WD615.329(domestic III) | |
| Engine rated power | kW/(r/min) | 206/2200 213/2200 |
| Engine rated torque | N.m/(r/min) | 1112/1400 1160/1400 |
| Travel | ||
| Max. travel speed | km/h | 75 |
| Min. turning diameter | m | 21.5 |
| Min. ground clearance | mm | 275 |
| Approach angle | ° | 16 |
| Departure angle | ° | 13 |
| Max. grade ability | % | 30 |
| Fuel consumption for 100km | L | ≈37 |
| Main performance | ||
| Max. rated total lifting capacity | t | 25 |
| Min. rated working radius | mm | 3000 |
| Turning radius at turntable tail | m | 3.065 |
| Max. lifting torque | kN.m | 1010 |
| Base boom | m | 10.7 |
| Fully extended boom | m | 34.19 |
| Fully extended boom+jib | m | 42.15 |
| Longitudinal outrigger span | m | 5.14 |
| Lateral outrigger span | m | 6 |
| Working speed | ||
| Boom luffing time | s | 75 |
| Boom full extension time | s | 100 |
| Max. swing speed | r/min | ≥2.5 |
| Max. speed of main winch (single rope) | m/min | ≥120 |
| Max. speed of aux. winch (single rope) | m/min | ≥120 |
