• Model NO.：Ztc700V552
• Shaft Number：3
• Crane Jib：Five-Arm
• Type：Straight Arm
• Fully Extended Boom+Jib：48.5m
• Max.Travel Speed：120m,Min
• Base Boom：11.4-43.0m
• Max. Driving Speed：75km,H
• Max. Gradeability：37%
• Transport Package：Nude
• Specification：14100X2750X3750
• Trademark：ZOOMLION
• Origin：China
• HS Code：87051091
• Production Capacity：10units,Month

Basic Info.

Model NO. Ztc700V552 Shaft Number 3 Crane Jib Five-Arm Type Straight Arm Fully Extended Boom+Jib 48.5m Max.Travel Speed 120m/Min Base Boom 11.4-43.0m Max. Driving Speed 75km/H Max. Gradeability 37% Transport Package Nude Specification 14100X2750X3750 Trademark ZOOMLION Origin China HS Code 87051091 Production Capacity 10units/Month

Product Description

Zoomlion 70ton ZTC700V552 Telescopic Truck Crane in stock

Product Description:

1.High performance
Overall optimized matching technology is adopted with high strength boomand optimized aspect ratio, which reduces boom torsion, side-bending, etc. Newsingle-cylinder pinning telescoping system brings higher telescopingreliability. Inserted sliders may efficiently increase the overlapping lengthof adjacent boom sections and eliminate point contact or line contact betweenslider and boom, thus local buckling phenomenon is effectively avoided. Compactboom tail structure improves boom telescoping ratio, which effectively contributesto longer boom length. The boom with six sections can be extended up to 64m, 1mhigher than the longest boom in the class in the industry, with performanceimproved by 15~20%.

2.Energy-saving
Equipped with high-precision sensors and large power radiator, newenergy-saving hydraulic system adopts large displacement electric proportionalvariable pump with intelligent engine control technology to achiece higherenergy utilization, lower heat production, improved system reliability and 15%fuel conservation.

3.Intelligent
The latest control technology platform is adopted to update the system withthe realization of intelligent crane operations and travel control, such asautomatic planning of working conditions, winch servo control technology,lifting elevating compensation control technology, and other in-house developedintelligent boom technologies, contributing to improved automation of boomcontrol and higher lifting safety to a large degree.
Road traveling and tight turning radius modes are available throughrear-axle hydraulic control servo steering technology to ensure stablehigh-speed driving and flexible low-speed driving.

Product Parameters:

Max. rated total lifting capacity: 70000kg
Max. load moment: 270t.m
Max. hoist rope speed(main winch): 125m/min
Max. hoist rope speed(auxiliary winch): 110m/min
Boom sections: 5
Boom length: 12.1-47m
Max. lifting height of boom: 47.7m
Jib sections: 2
Jib length: 9.5, 16m
Max. lifting height of jib: 63.8m
Outrigger span: 6.05x7.8m
Counter weight: 8t
Overall dimension: 14500x2800x3850mm
Dead weight in travelling condition: 46t
Driving form: 8x4
Min. turning diameter: 24m
Approach angle: 19.5°
Departure angle: 15°
Driving speed: 85km/h
Oil consumption per hundred kilometers: 45L
Max. gradeability: 46%
Engine: WP10.375E43, 276KW
Slewing speed: 0-1.7r/min
Boom derricking time: 55s
Boom extending time: 120s

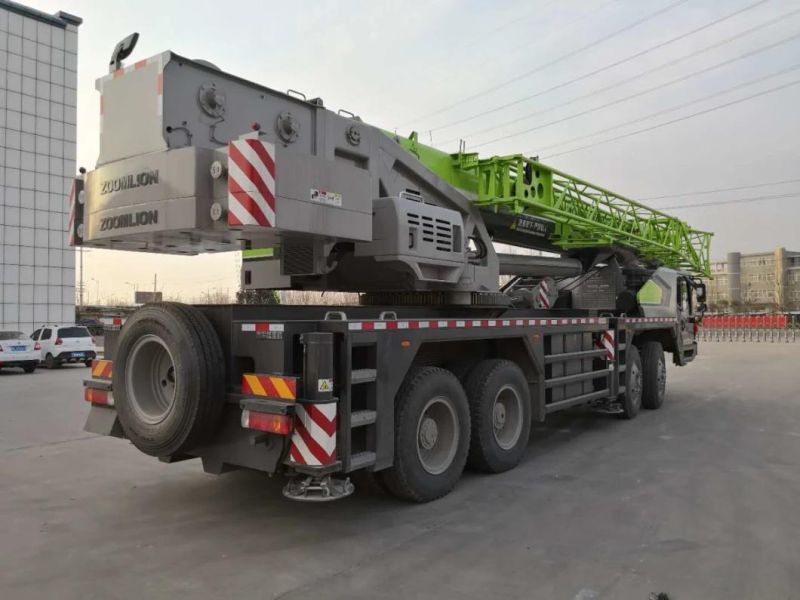

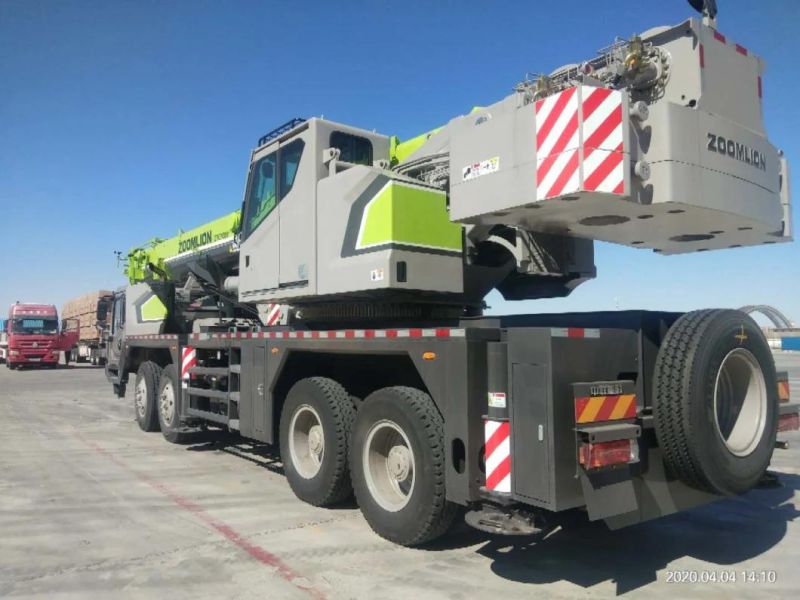

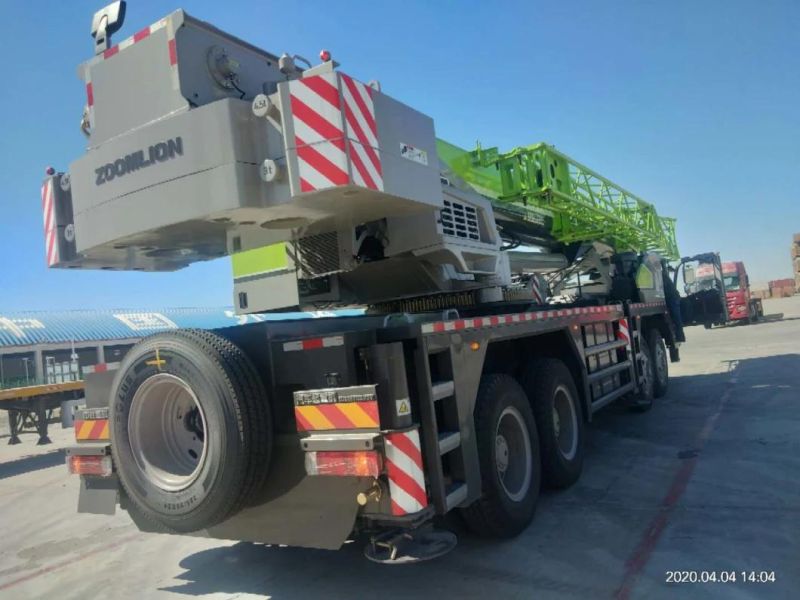

Product Photos:
