• Model NO.：SATC6
• Maximum Lifting Weight：>10t
• Installation：Jack-Up
• Moving Type：Fixed
• Type：Top-Slewing Crane
• Max. Lifting Cap.(T/M)：12 T
• Basic Height：60 M
• Max Height：240 M
• Section Material：Angle Steel,Folding
• Fixed Jib Length：12-36 M
• Length：30~70 M
• Traveling：Rt
• Transport Package：Roro Ship
• Specification：12 t
• Trademark：Super-above
• Origin：Jiangsu, China
• HS Code：8426491000
• Production Capacity：300set,Year

XGT7020-12Basic height60MMax height240MLength70/65/60/55/50/45/40/35/30Max load12tTip load2/2.5/3.1/3.9/4.7/5.6/6.3/7.2/8.5Section size2000×2000×3000Section materialAngle steel/FoldingXGT7020-12ItemsMechanismSpeed(m/min)Rope capacityMotor(Kw)Hoist mechanism55JLF30A2 multiplying power0-90695M               >695M*554 multiplying power0-45Trolleying mechanism6JXF50-63m/min5,5Slewing mechanismJH12CT60-0.66r/min2×7.5TravellingRT0-25m/min4×4Main Supply380V(±10%)/50Hz*Gross Power(Excluding climbing and travelling):75.5Kw

Feature & advantage

1.suitable for all kinds of construction projects and can work under all kinds of work condition.
2.It has a high working speed, good speed-adjusting performance, steady operation, and high efficiency.
3.The crane has a complete set of safety devices, which can guarantee the safe and high-efficiency operation of the
equipment.
4. Three-speed motor and mono-speed ratio decelerators are applied in the lifting construction, which enables heavy load
low speed
and light load high speed.
5.Planet gear decelerator is applied in the circumgyrating structure, together with moment-limiting hydraulic coupler, which
can realize high load capacity, steady starting, and reliable operation.

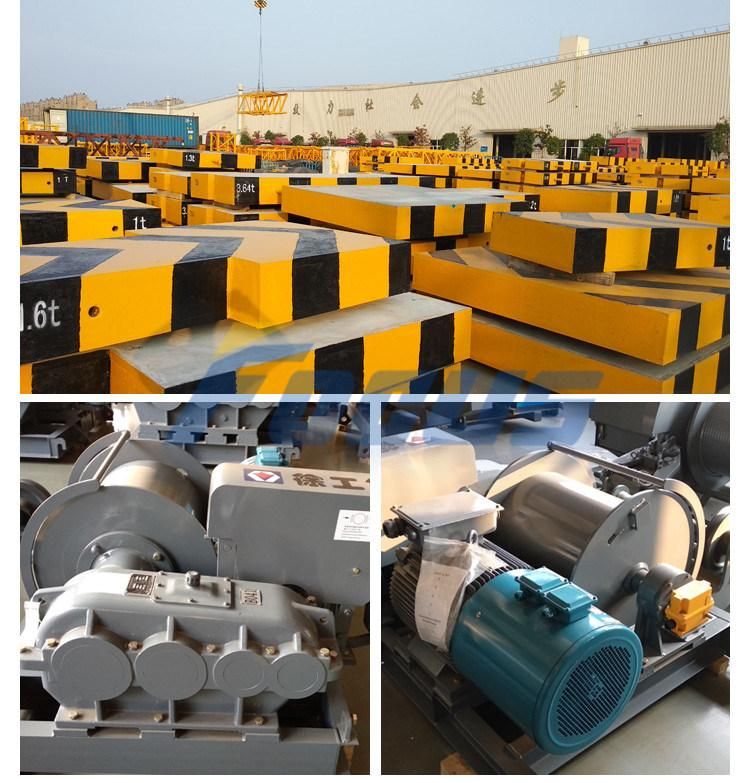

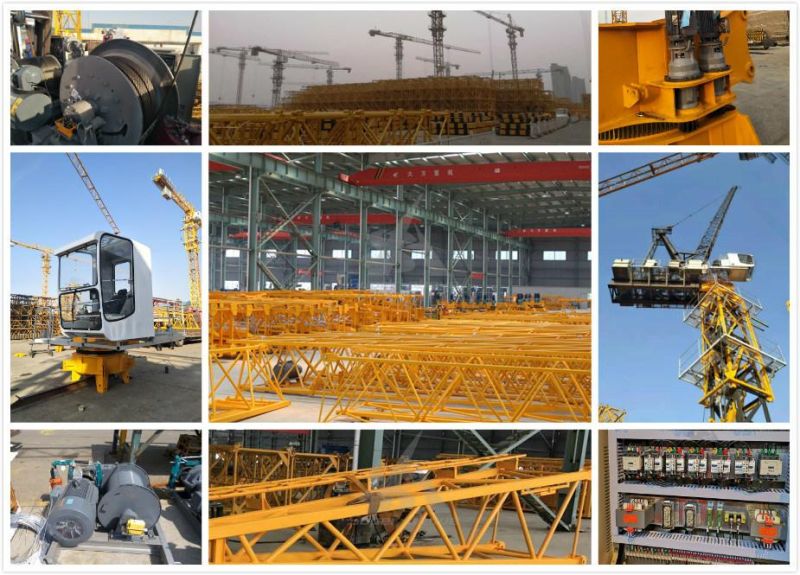

Our Factory

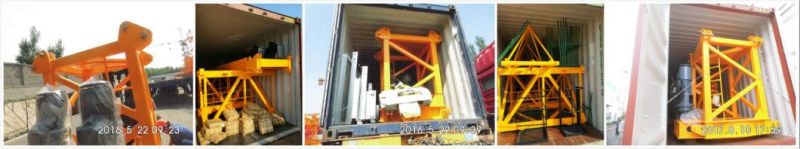

Packing & Delivery
