Oriemac Lifting Construction Equipment 25 Ton Mobile Crane Telescopic Boom Truck Crane Qy25K5d
Oriemac Machinery & Equipment (Shanghai) Co., Ltd.- After-sales Service：Yes
- Warranty：Yes
- Certification：GS, RoHS, CE, ISO9001
- Condition：New
- Maximum Lifting Height：25-30m
- Maximum Lifting Weight：>16t
Base Info
- Model NO.：QY25K5D
- Shaft Number：3
- Crane Jib：Four-Arm
- Type：Straight Arm
- Color：Yellow
- Power Source：Hydraulic
- Sling Type：Wire Rope
- Max. Travel Speed：80km,H
- Min. Turning Diameter：22m
- Max. Lifting Torque：961kn.M
- Transport Package：Nude, Suitable for Shiping
- Specification：ISO
- Trademark：ORIEMAC
- Origin：Jiangsu, China
- Production Capacity：100 Sets,Month
Description
Basic Info.
Model NO. QY25K5D Shaft Number 3 Crane Jib Four-Arm Type Straight Arm Color Yellow Power Source Hydraulic Sling Type Wire Rope Max. Travel Speed 80km/H Min. Turning Diameter 22m Max. Lifting Torque 961kn.M Transport Package Nude, Suitable for Shiping Specification ISO Trademark ORIEMAC Origin Jiangsu, China Production Capacity 100 Sets/MonthProduct Description
Oriemac Lifting Construction Equipment 25 Ton Mobile Crane Telescopic Boom Truck Crane QY25K5DSpecification:
1. Rated Loading Capacity: 25ton
2. Engine: SC8DK280Q3
3. Rated power: 206kW
Feature:
Manufacturer 25 ton small mobile truck crane QY25K5C.
The operations of manufacturer 25 ton small mobile truck crane QY25K5C are very simple, convenient and flexible.
25 ton small mobile truck crane QY25K5C is widely used for lifting operation and installation work in urban renewal, transportation, ports, bridges, oilfield, industrial and mining enterprises, etc.
1. U-shaped cross-section boom has small depth-width ratio, strong bearing capacity, small deformation,strong anti-bending and powerful lifting capacity.The main boom length is 10.6m to 41.0m, the performance of mid-extended boom and fully-extended are also superior.
2. Plug-in boom head effectively increases theboom connect length andreducesboom deformation.Embedded sliders are equipped, which enlarge the contact square and reduce the contact stress of boom.
3. With 9-speed transmission equipped, it has superior travel and grade ability. The max. grade abilityis 40%, max. travel speed is 90km/h.
4.Open type fixed displacement pump and variabledisplacement motor system is adopted.Double pump confluenceis used in main operation, which meets the requirements of speed and reduces the energy consumption and system heat effectively. The load sensitive system that researched anddeveloped by ourselves contributes to smooth operation, high efficiency and energy saving.Particularslewing technology realizes smooth slewing and no jitter. Free fall is adopted in the elevating system,which effectively realizes energy-saving.The counterbalance valve adopts over-load compensated technology to ensure crane fallsmoothly.
Parameter:
| Category | Item | Unit | Parameter | |
| Dimension Parameter | Overall length | mm | 12680 | |
| Overall width | mm | 2500 | ||
| Overall height | mm | 3400 | ||
| Wheel base | mm | 4425+1350 | ||
| Wheel track | mm | 2074/1834/1834 | ||
| Weight Parameter | Total mass under driving status | kg | 32800 | |
| Axle load | Front axle | kg | 7300 | |
| Back axle | kg | 25500 | ||
| Kinetic Parameter | Engine type | SC9DF290Q4 | ||
| Engine power rating | kw/(r/min) | 213/2200 | ||
| Rated torque of engine | N.m/(r/min) | 1200/1400 | ||
| Running Parameter | Maximum travel speed | km/h | 90 | |
| Minimum diameter of turning circle | m | 22 | ||
| Minimum ground clearance | mm | 275 | ||
| Approach angle | ° | 11 | ||
| Departure angle | ° | 12 | ||
| Braking length (the speed is 30km/h) | m | ≤10 | ||
| Maximum gradeability | % | 41 | ||
| Fuel consumption per hundred kilometers | L | ≤32 | ||
| Noise Parameter | Car exterior noise when speeding up | dB(A) | 88 | |
| Noise around the driver's ear | dB(A) | 90 |

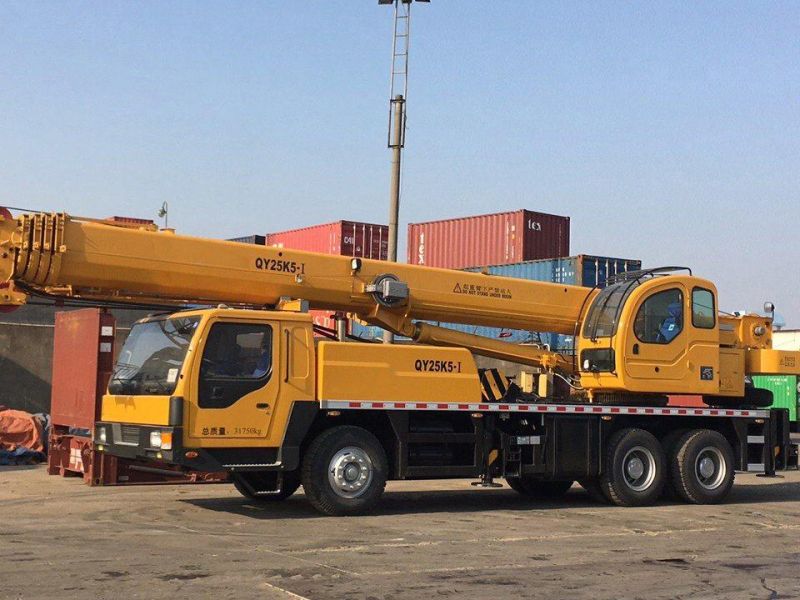

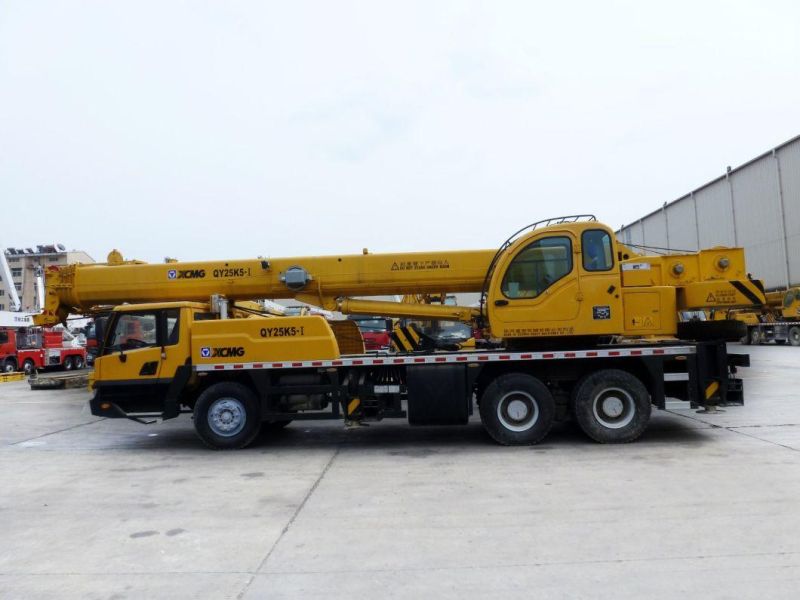

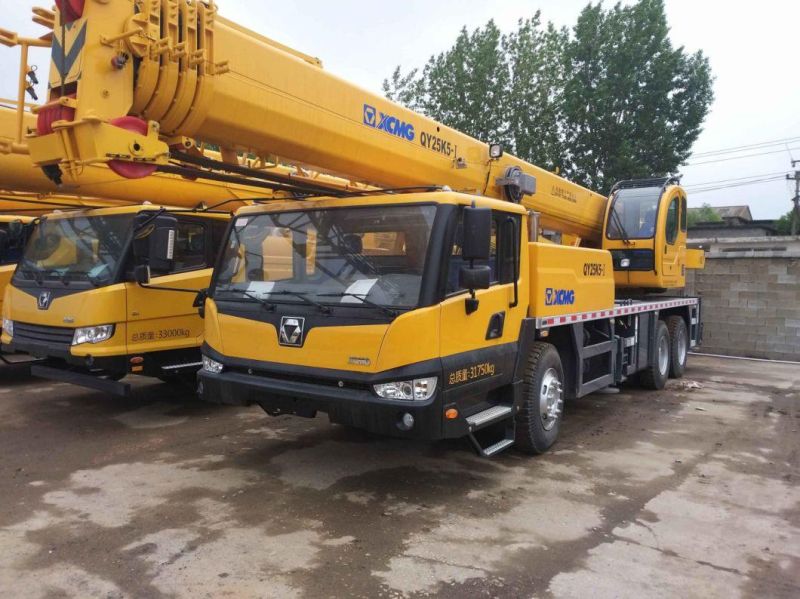

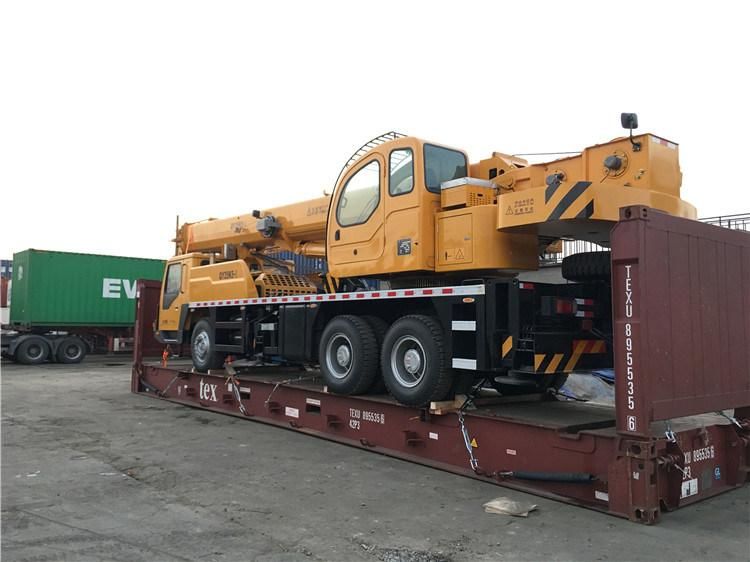

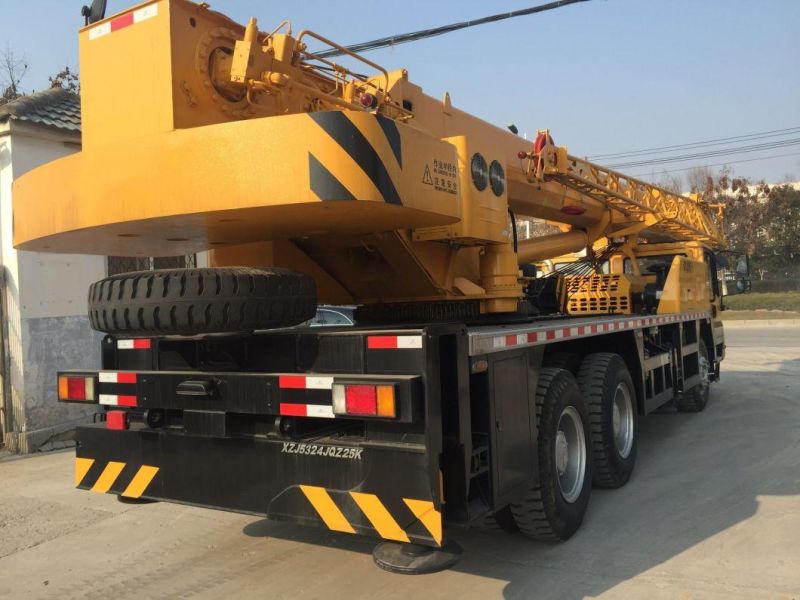

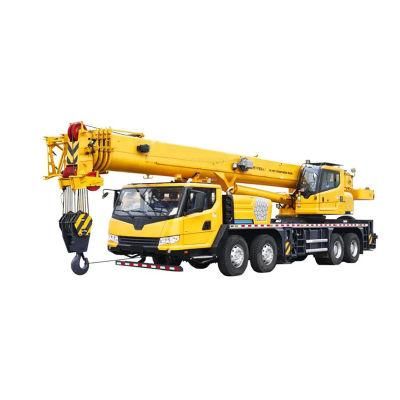

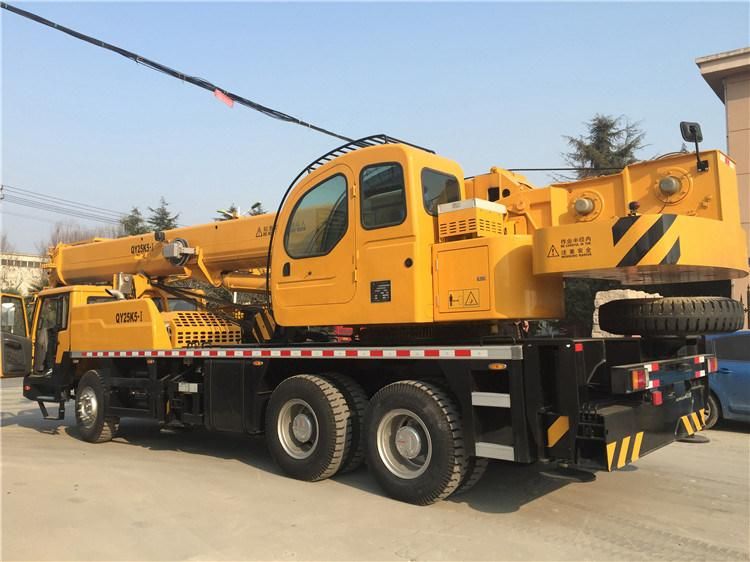

Photo show:
