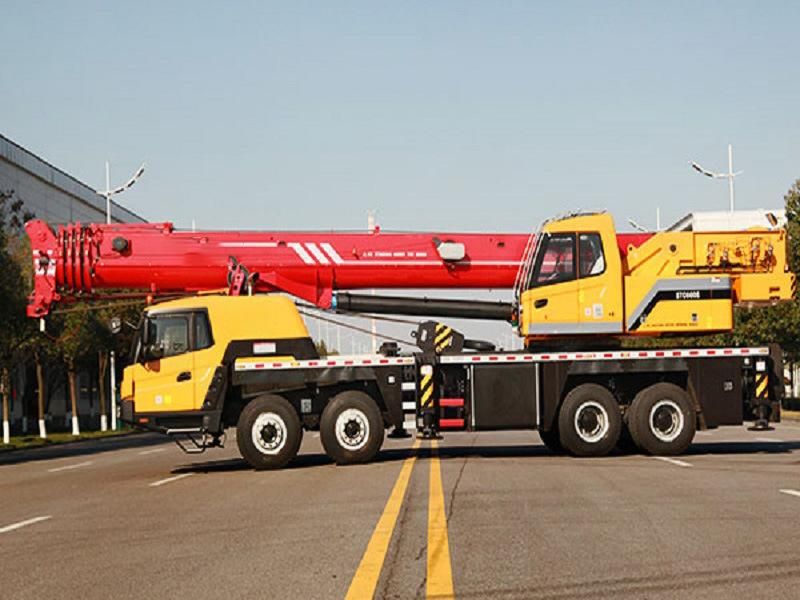

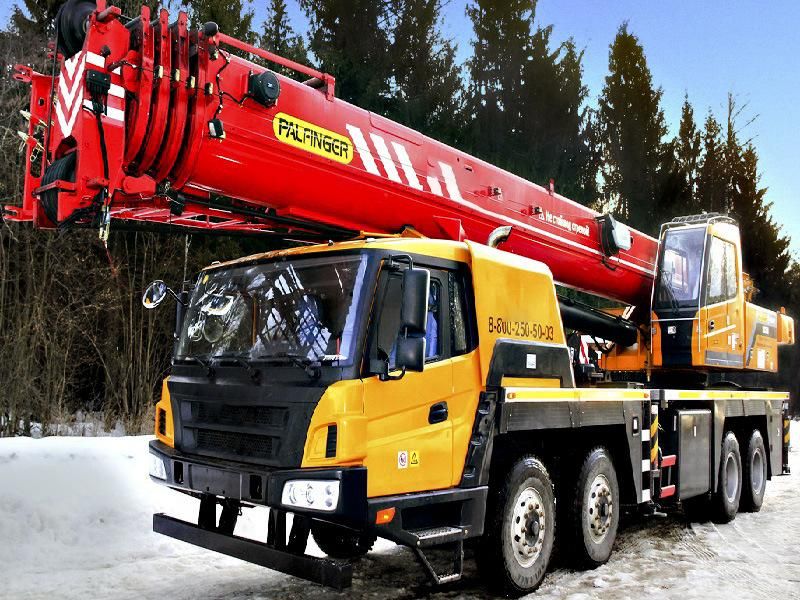

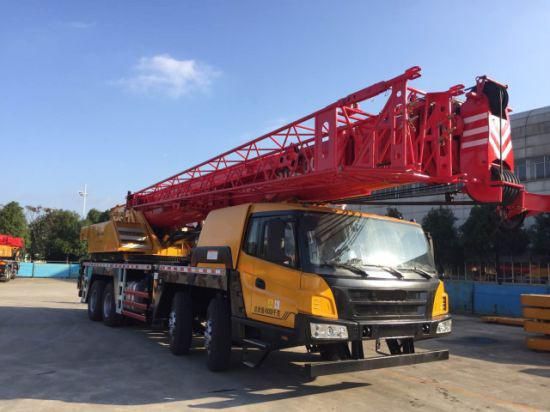

China Top Brand Truck Crane 30t Stc300 Boom Truck Crane to Uzberkistan
Maxizm Construction Machinery (Qingdao) Co., Ltd.- After-sales Service：Oversea
- Warranty：1 Year
- Certification：GS, RoHS, CE, ISO9001
- Condition：New
- Maximum Lifting Height：>40m
- Maximum Lifting Weight：>16t
Base Info
- Model NO.：STC300
- Shaft Number：3
- Crane Jib：Four-Arm
- Type：Straight Arm
- Max Lifting Capacity：30t
- Max Lifting Height：51m
- Max Lifting Moment：1158kn.M
- Max Boom Length：42.5m
- Jib Length：8m
- Counter Weight：5.9t
- Max Traveling Speed：90km,H
- Max Gradeability：42%
- Wheel Formula：6*4
- Transport Package：Nude Packing
- Trademark：Maxizm
- Origin：China
- HS Code：84291190
- Production Capacity：1000
Description
Overview
Product DescriptionMax. rated lifting capacity kg 30000 Max. load moment of basic boom kN.m 1132 Max. load moment of main boom(fully extended) kN.m 617.5 Max. load moment of basic boom m 11.1 Max. lifting height of main boom m 40.5 The parameters do not include deflection of main boom and jib Max. lifting height of jib m 48.5 Working speeds Max. hoist rope speed(Main winch) m/min 120 At the 4th layer Max. hoist rope speed(Auxiliary winch) m/min 100 At the 2nd layer Boom demrricking up time s 40 Boom demrricking up time s 80 Slewing speed r/min Driving
parameters Max. driving speed km/h 78 Max. gradeability % 37 Min turning diameter m ≤22 Min. ground clearance mm 220 Oil consumption per hundred kilometers L 35 Mass Deadweight in driving condition kg 32000 Complete vehicle kerb mass kg 31870 Front axle load kg 7000 Rear axle load kg 25000 Dimensions Overall dimensions(L×W×H) mm 12900×2500×3465 Longitudinal distance between outriggers m 5.36 Transversal distance between outriggers m Fully extended:6.10 m
Intermediately extended:4.20 m Tail slewing radius mm 3385 Main boom length m 10.6 - 40.0 Boom angle ° -2 - 80 jib length m 8.0 Offset ° 0,30
Working performance
0 - 2.2
parameters
Intermediately extended:4.20 m
