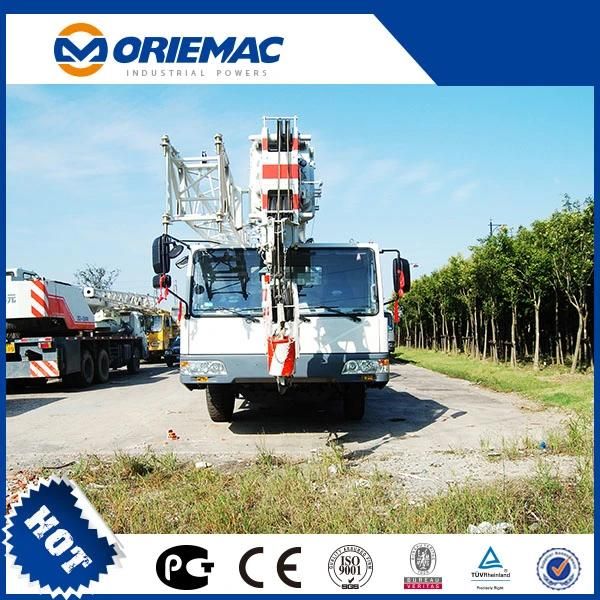

Mobile Crane Zoomlion Qy20V 20 Ton Truck Crane

Oriemac Machinery & Equipment (Shanghai) Co., Ltd.
  • Certification：CE, ISO9001: 2000
  • Condition：New
  • Maximum Lifting Height：30-40m
  • Maximum Lifting Weight：>16t
  • Shaft Number：2
  • Crane Jib：Four-Arm

Base Info

  • Model NO.：QY20V truck crane
  • Type：Single Girder Crane
  • Max. Rated Lifting Weight：20 Ton
  • Max. Lifting Height of Basic Boom：10.6 M
  • Max. Lifting Height of Fly Jib：41.4m
  • Outline Dimensions：12620*2500*3400 mm
  • Application：Construction Usage
  • Tower Crane Type：Slewing Tower Crane
  • Sling Type：Wire Rope
  • Main Girder Form：Single Girder
  • Power Source：Hydraulic
  • Transport Package：Nude Packing
  • Specification：CE, ISO9001
  • Trademark：ZOOMLION
  • Origin：Jiangsu, China
  • HS Code：87051092
  • Production Capacity：100 Set,Sets , Month

Description

Working performanceMax. rated lifting weight × working radiuskg.m20000×3.0Max. lifting torque of basic boomkN.m850Max.lifting torque of longest main boomkN.m465Max. lifting height of longest main boomm33.5Max. lifting height of jibm41.5DimensionsOutline dimensions (L×W×H)mm12620×2500×3400Distance between outriggers (longitudinal × transversal)mm5150×5600Main boom length (completely retracted - completely extended)m10.4~33Jib lengthm8Main boom angle of elevation°-2~80Swing range 360°continuouslyWorking speedMax.speed of single rope on the drum of main winchm/min120Boom extension times70Boom derricking up times40Swing speedr/min3MassComplete vehicle kerb masskg26270Front axle loadkg6500Rear axle loadkg19900TravelingMax. traveling speedkm/h75Max. gradeability%30Min. turn radiusm10Min. ground clearancemm250Mobile Crane Zoomlion Qy20V 20 Ton Truck Crane
