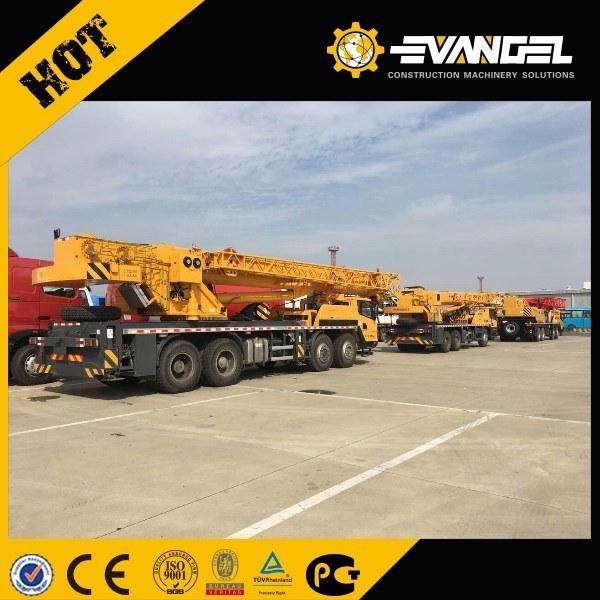

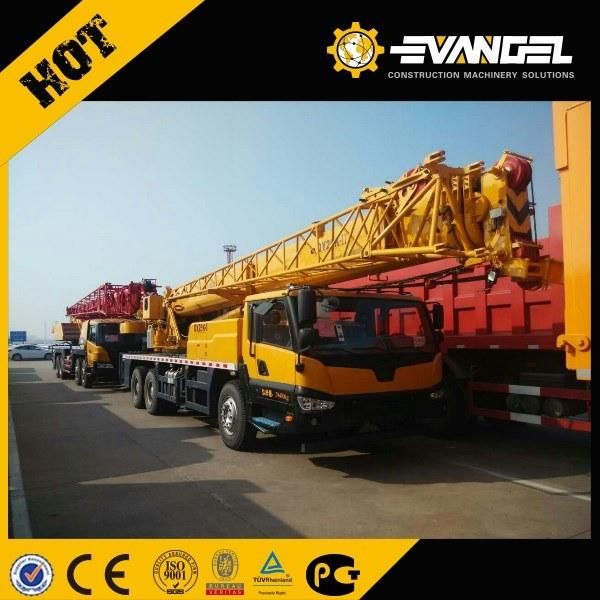

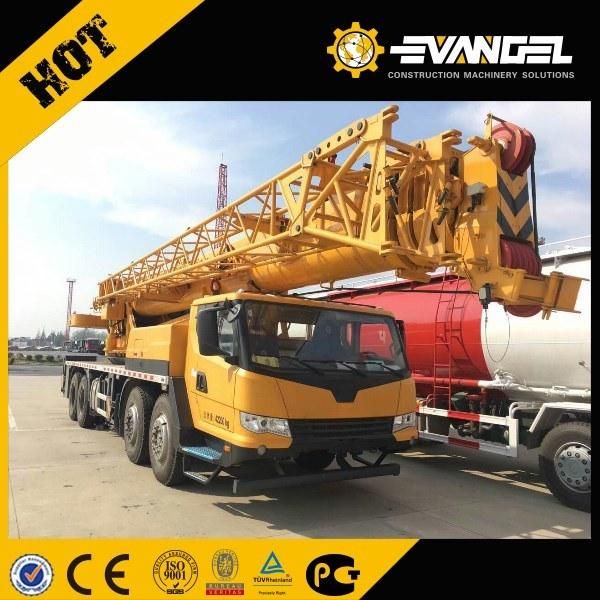

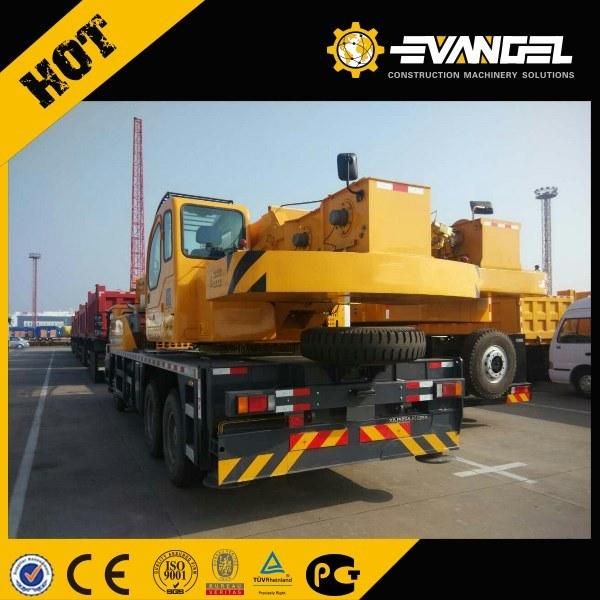

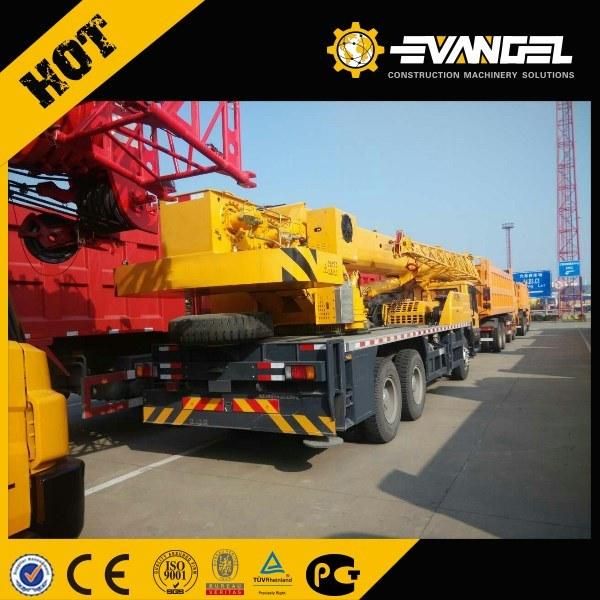

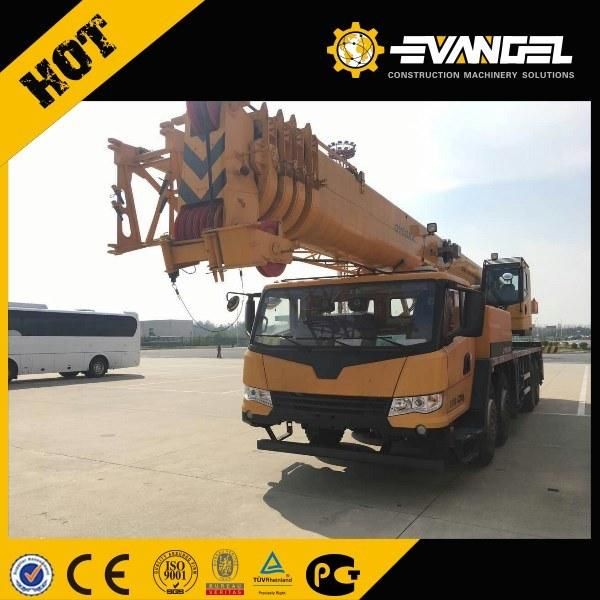

Brand New Mobile Truck Crane Qy25K-II for Construction Equipment
Evangel Industrial (Shanghai) Co., Ltd.- Certification：CE, ISO9001: 2000
- Condition：New
- Maximum Lifting Height：30-40m
- Maximum Lifting Weight：>16t
- Shaft Number：3
- Crane Jib：Four-Arm
Base Info
- Model NO.：QY25K
- Type：Truck Crane
- Place of Origin：Jiangsu, China
- Lifting Capacity：25t
- Max.Lifting Height：34.19m
- Engine Rated Output(Kw/Rpm)：206,2200, 213,2200
- Max.Travel Speed：75km,H
- Boom Full Elevating Time：100s
- Overall Dimensions：12650mm*2500*3380mm
- Power Source：Hydraulic
- Moving Type：Wheel
- Transport Package：Roro or Bulk Break Shipment
- Specification：CE
- Trademark：EVANGEL
- Origin：Jiangsu
- HS Code：87051091
- Production Capacity：100 Units Per Month
Description
Overall length
mm
12650
Overall width
mm
2500
Overall height
mm
3380
Total weight in travel
kg
29400
Front axle load
kg
6200
Rear axle load
kg
23200
Engine model
SC8DK280Q3 / WD615.329
Engine rated power
kW/(r/min)
206/2200 213/2200
Engine rated torque
N.m/(r/min)
1112/1400 1160/1400
Max. travel speed
km/h
75
Min. turning diameter
m
21.5
Min. ground clearance
mm
275
Approach angle
°
16
Departure angle
°
13
Max. grade ability
%
30
Fuel consumption for 100km
L
≈37
Max. rated total lifting capacity
t
25
Min. rated working radius
mm
3000
Turning radius at turntable tail
m
3.065
Max. lifting torque
kN.m
1010
Base boom
m
10.7
Fully extended boom
m
34.19
Fully extended boom+jib
m
42.15
Longitudinal outrigger span
m
5.14
Lateral outrigger span
m
6
Boom luffing time
s
75
Boom full extension time
s
100
Max. swing speed
r/min
≥2.5
Max. speed of main winch
m/min
≥120
Max. speed of aux. winch
m/min
≥120
