• Model NO.：SQ10SU3
• Shaft Number：3
• Crane Jib：Three-Arm
• Type：Straight Arm
• Color：Color Can Be Selected by Customers
• Name：China 10 Ton Stiff Telescopic Lifting Boom Manipul
• Control System：Hydraulic System
• Boom：2 Sections
• Remote Control Equipment：Optional Attachments
• Max Elevation Angle：75 Degree
• Hydraulic Parts：Made in Italy
• Property：Safe and Reliable
• Power：Hydraulic System
• Working Radius：14.05m
• Transport Package：Wooden Box
• Specification：2320*320*740
• Trademark：BOB-LIFT
• Origin：Made in China
• HS Code：84269100
• Production Capacity：100 Units,Month

                             SQ10SA3 Telescopic Hydraulic Boom Truck Mounted Crane 10t  Max Lifting Capacity Ton 10 Max Lifting Moment Ton.m 25 Recommend Power KW 30 Hydraulic System Flow L/min 63 Hydraulic System Pressure MPa 25 Oil Tank Capacity L 160 Installation Space mm 1200 Rotation Angle ° 360

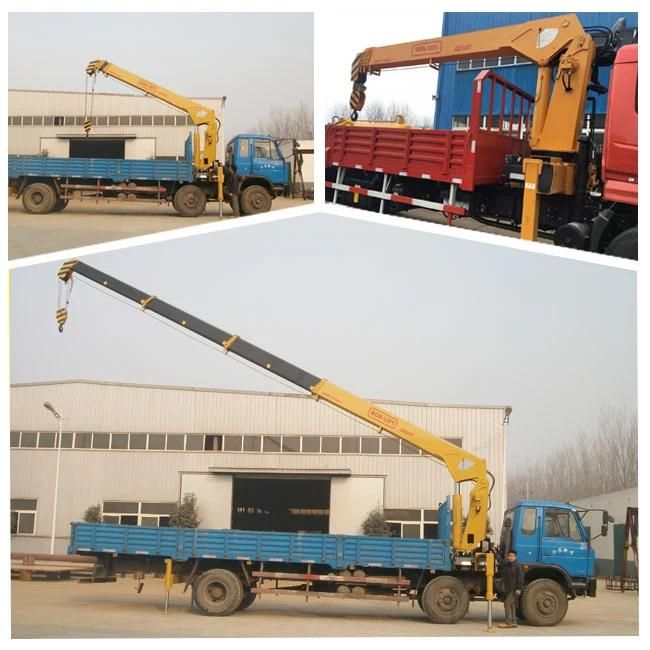

PRODUCT PICTURES

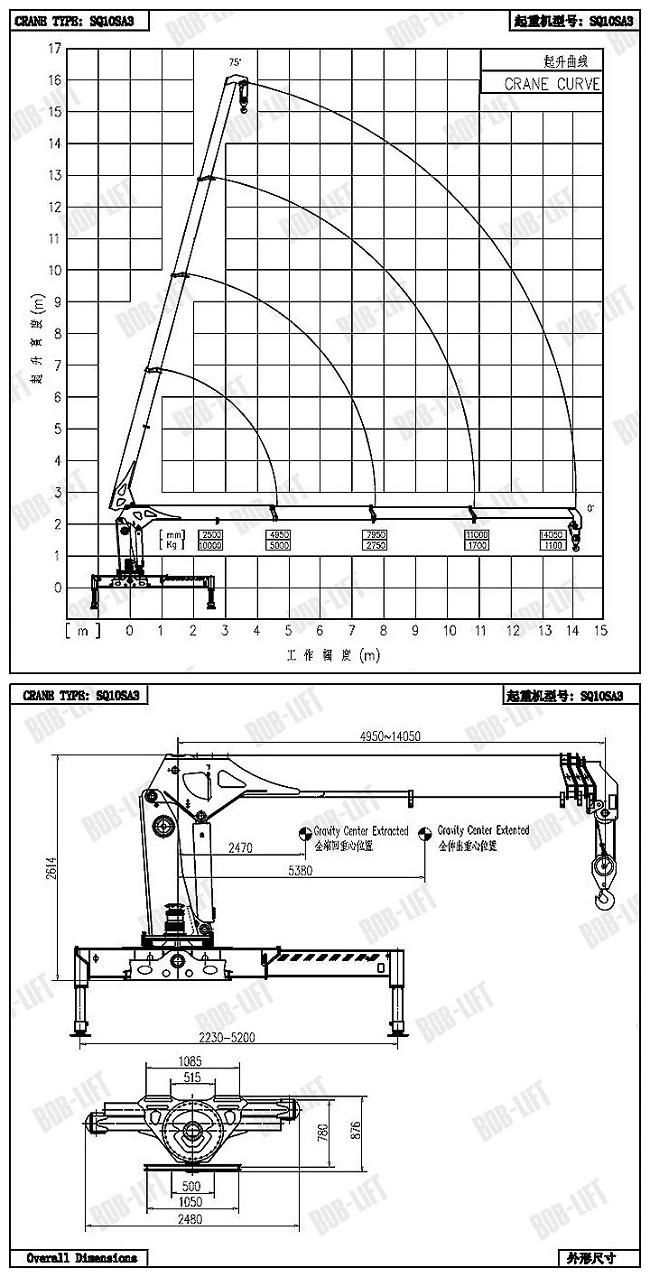

TECHNICAL DATA



PACKING DETAILS

CERTIFICATE

FAQ

1. Factory History?

16 Years production, 10 years export experience.

2. Steel material manufacturer?
Shanghai Baosteel

3. Type of the boom?
Hydraulic boom+jib/manual boom(optional attachment)

4. How to finish the preshipment inspection?
Factory Inspection, video provided

5. Optional Attachments

Remote Control, Moment Limited Valve, Top Seat, Work Basket, Assistant Stabilizer leg...
