Telescopic Boom Crane Boom Truck Specifications

XUZHOU BOB-LIFT CONSTRUCTION MACHINERY CO., LTD.
  • After-sales Service：Yes
  • Warranty：1year
  • Certification：CE, ISO9001
  • Condition：New
  • Maximum Lifting Height：20-25m
  • Maximum Lifting Weight：>16t

Base Info

  • Model NO.：SQ16SA4
  • Shaft Number：3
  • Crane Jib：Five-Arm
  • Type：Straight Arm
  • Color：According Customer Requirement
  • Painting：Galvanized, Anti Oxidation
  • Materials：Hq60, Hq70, Q345
  • Boom Type：Telescopic Boom
  • Max Working Radius：18.65m
  • The Min Capacity：1, 200kg
  • Installation Space：1, 400mm
  • Self Weight：6, 000kg About
  • Rotation Angle：360
  • Product Name：20 Ton High Lifting Platform Hydraulic Crane Truck
  • Transport Package：Wooden Cases
  • Specification：6300*950*540; 1250*2500*2320
  • Trademark：BOB-LIFT
  • Origin：Xuzhou, China
  • HS Code：8426910000
  • Production Capacity：100 Sets,Month

Description

SQ20SA4 Max Lifting Capacity Ton 20 Max Lifting Moment Ton.m 50 Recommend Power KW 60 Hydraulic System Flow L/min 120 Hydraulic System Pressure MPa 26 Oil Tank Capacity L 260 Installation Space mm 1450 Rotation Angle ° 360

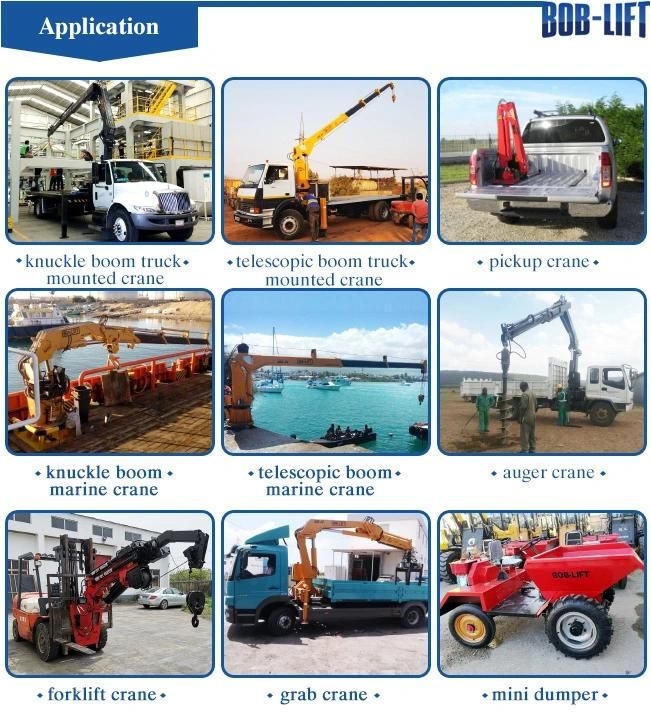

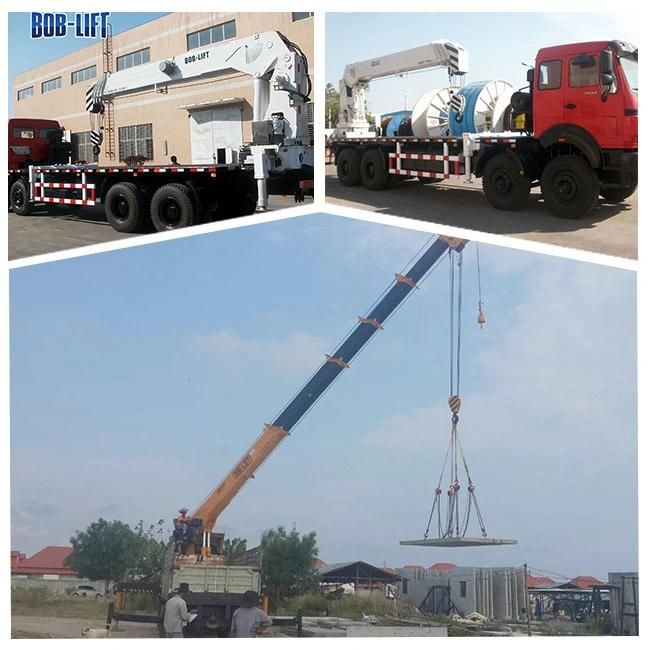

PRODUCT PICTURES
Telescopic Boom Crane Boom Truck Specifications

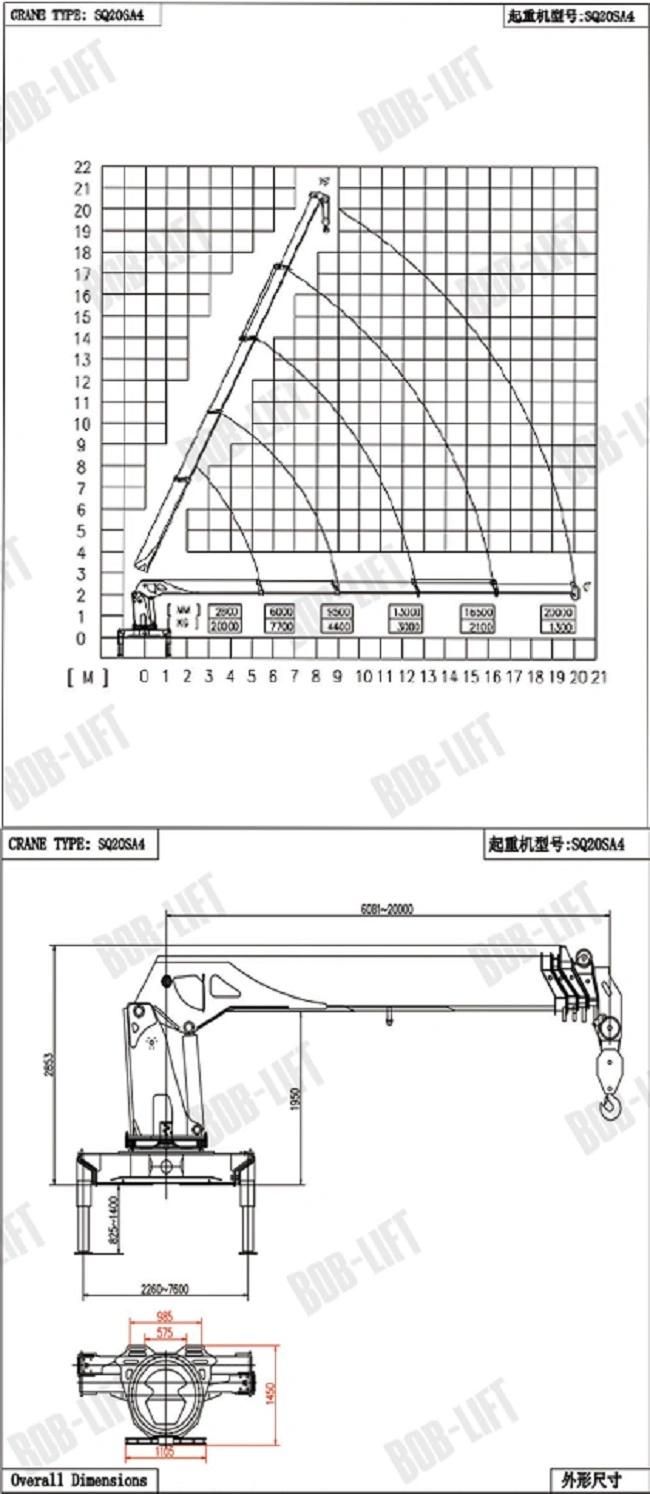

TECHNICAL DATA
Telescopic Boom Crane Boom Truck Specifications

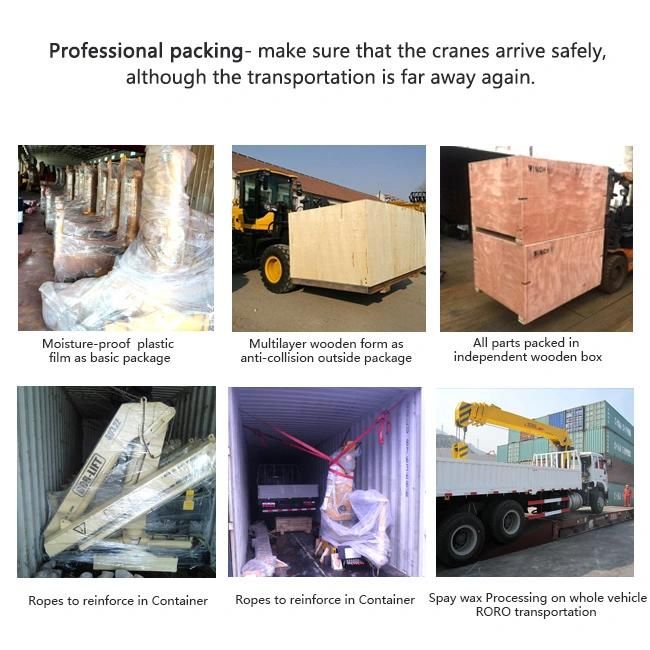

PACKING DETAILS
Telescopic Boom Crane Boom Truck Specifications
CERTIFICATE
Telescopic Boom Crane Boom Truck Specifications
FAQ

1. Factory History?

16 Years production, 10 years export experience.

2. Steel material manufacturer?
Shanghai Baosteel

3. Type of the boom?
Hydraulic boom+jib/manual boom(optional attachment)

4. How to finish the preshipment inspection?
Factory Inspection, video provided

5. Optional Attachments

Remote Control, Moment Limited Valve, Top Seat, Work Basket, Assistant Stabilizer leg...
