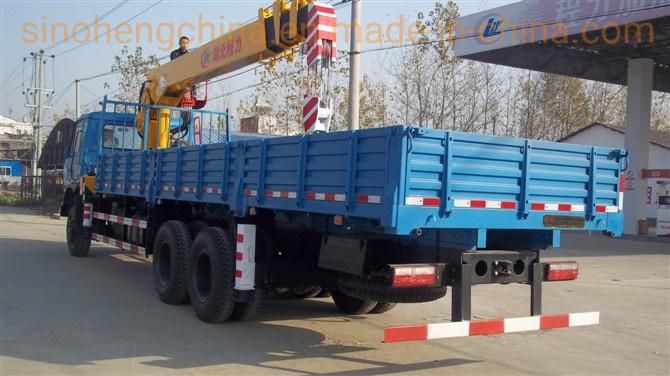

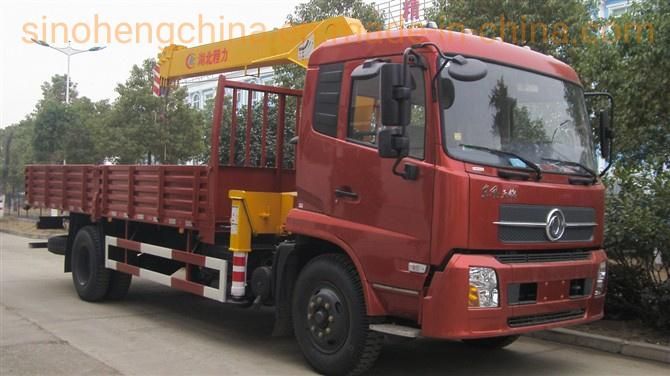

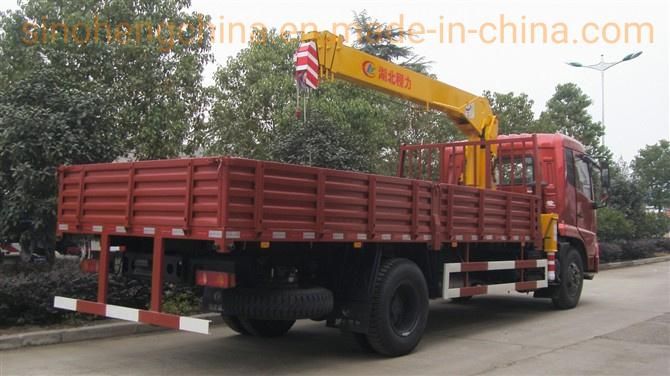

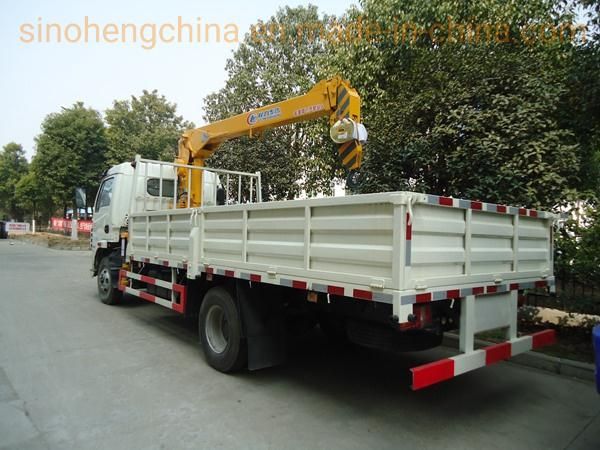

Dongfeng Chassis 2 Ton Telescopic Boom Truck Mounted Crane Sh2sk1q/K2q

Jinan Sinoheng Import and Export Co., Ltd.
  • Certification：ISO9001: 2000
  • Condition：New
  • Maximum Lifting Weight：2-4t
  • Shaft Number：2
  • Crane Jib：Can Add Vice Boom According to Customer′s Demands
  • Type：Truck Mounted Crane

Base Info

  • Model NO.：SH2SK1Q,K2Q
  • Max Lifting Capacity：2100kg
  • Max Lifting Moment：4.2t.M
  • Recommend Power：9kw
  • Max Oil Flow of Hydraulic System：20L,Min
  • Max Pressure of Hydraulic System：16MPa
  • Oil Tank Capacity：25L
  • Rotation Angle：All Rotation
  • Crane Weight：640,818kg
  • Installation Space：850mm
  • Power Source：Hydraulic
  • Transport Package：Nude.
  • Specification：ISO9001: 2000, CCC
  • Trademark：Dongfeng
  • Origin：China
  • HS Code：8705102200
  • Production Capacity：100PCS,Month

Description

All RotationCrane Weight640/818kgInstallation Space850mmChoice of ChassisHFC1065KRT;JX1050TGB23;JX1060TSG23;EQ1060GJ20D3;EQ1092FJ;EQ1092FJ1;EQ1060TJ20D3
SH2SK1Q Lifting capability diagram
Working radius (m)2.102.503.00
Lifting capacity (kg)210018001000

SH2SK2Q Lifting capability diagram
Working radius (m)2.102.503.00
Lifting capacity (kg)210016001000
