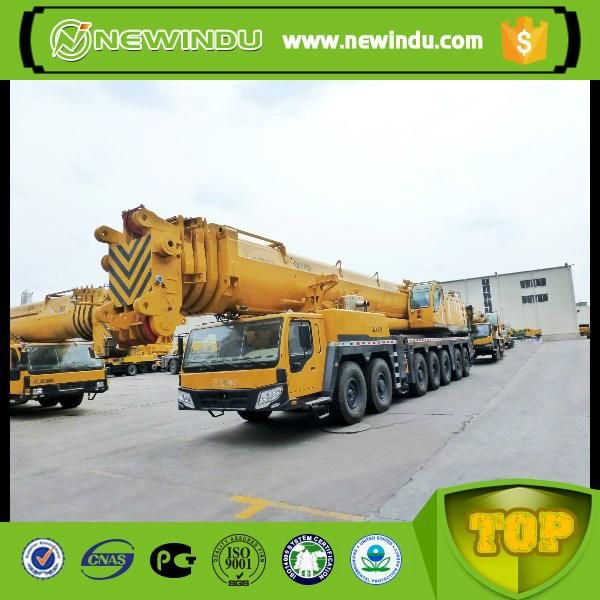

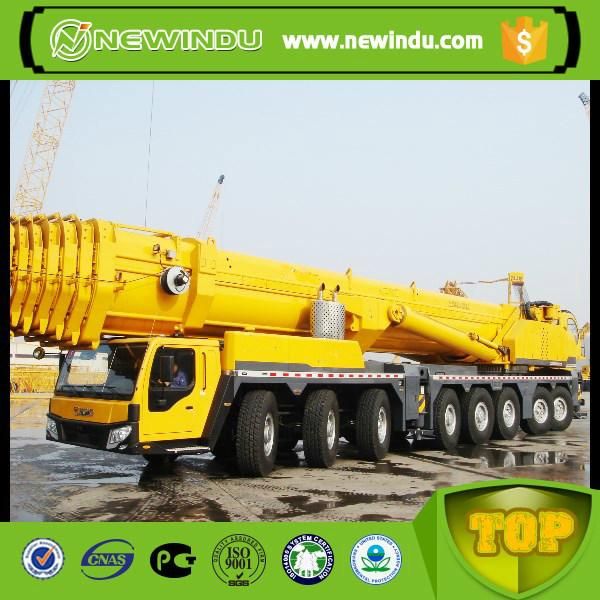

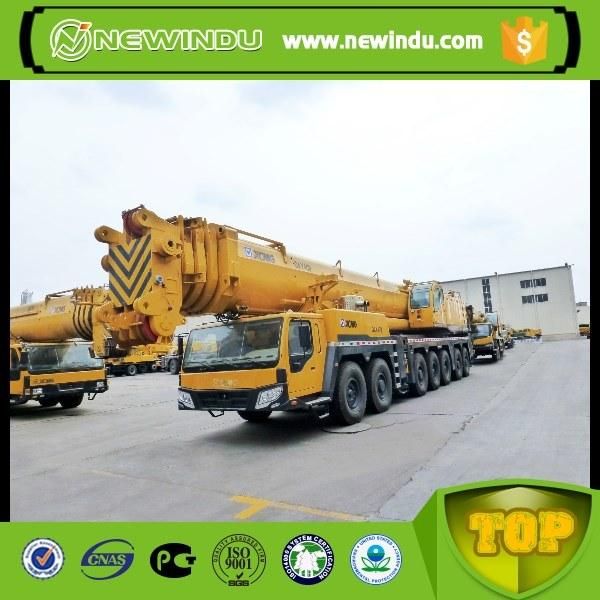

• Model NO.：QAY200
• Shaft Number：6
• Crane Jib：Five-Arm
• Type：Straight Arm
• Engine Rated Output：162kw
• Min. Turning Diameter：20m
• Min. Ground Clearance：278mm
• Max. Travel Speed：80km,H
• Engine：Cummins,Weichai,Shangchai
• Transport Package：Nude Package
• Specification：11200*3350*3400mmmm
• Trademark：Chinese Brand
• Origin：China
• HS Code：87051022
• Production Capacity：100pieces,Month

DimensionUnitQAY200Overall lengthmm Overall widthmm Overall heightmm Weight  Dead weight in travel statekg71000kg1st axle loadkg11750kg2nd axle loadkg11750kg3rd axle loadkg11850kg4th axle loadkg11850kg5th axle loadkg11900kg6th axle loadkg11900kgPower  Superstructure engine TAD720VE or TAD750VESuperstructure engine rated outputkW/(r/min)162/2100 or 181/23 00 kW/(r/min)Carrier engine OM502LA. /3Carrier engine rated outputkW/(r/min)390/1800 kW/(r/min)Carrier engine max outputN.m/(r/min)2400/1080 N.m/(r/min)Travel  Max. travel speedkm/h71 km/hMin. turning diameterm<=24Superstructure engine max outputN.m/(r/min)854/1400 or 1050/1500 N.m/(r/min)Approach angle° Departure angle° Max. grade ability%48%Fuel consumption for 100kmL80LLifting performance  Max. lifting capacityt200tMin. rated working radiusm3mTurning radius at swing table tailmm5070mmParameters Max. loadkN.m6774 kN.mParameters Lifting heightm14.5mFull- extended boom Lifting heightm61.5mFull-extended boom+ jib Lifting heightm82.1mLongitudinal distance Outrigger spanm9.625mLateral distance Outrigger spanm8.7(6.5)mWorking speed  Boom elevating times90sBoom telescoping times550sMax. swing speedr/min1.9 r/min
