Zoomlion 4-Wheel 50 Ton 60 Ton Rough Terrain Mobile Crane
Acntruck Automobile Sales (Shanghai) Co., Ltd.- Warranty:1 Year
- Certification:CE, ISO9001
- Condition:New
- Maximum Lifting Height:61.2 M
- Maximum Lifting Weight:60 T
- Shaft Number:2
Base Info
- Model NO.:ZRT600E552
- Crane Jib:5-Section Boom
- Type:Straight Arm
- 5-Section Boom:45.1 M
- Dead Weight in Driving:45 T
- Transport Package:Nude Packaged
- Specification:14100*3300*3790 mm
- Trademark:Zoomlion
- Origin:Hunan, China
- HS Code:84269100
- Production Capacity:5000PCS,Year
Description
Type
Ser. No.
Item
Unit
Value
Working performance
1
Max. rated lifting capacity × working radius
kg.m
60000×2.5
2
Max. load moment of main boom
kN.m
2116.8
3
Max. load moment of main boom (fully extended)
kN.m
1197
4
Max. lifting height of main boom (fully extended)
m
45.1
5
Max. lifting height of jib
m
61.2
Dimensions
6
Overall dimensions (L × W × H)
mm
14100×3300×3790
7
Outrigger spread
(Height × Width)
mm
7380×7400
8
Main boom length
mm
11600 - 45000
9
Jib length
mm
9500 - 16000
10
Boom angle
°
-2 - 80
11
Swing range
360° unlimited swing (Full range)
Working speeds
12
Max. hoist rope speed (Main winch)
m/min
130
13
Min. boom telescoping out time
s
95
14
Min. boom telescoping in time
s
110
15
Min. boom derricking up time
s
45
16
Min. boom derricking down time
s
125
17
Swing speed
r/min
0~2.4
Hydraulic system
18
Maximum working pressure
MPa
28
19
Rate working flow
L/min
280
20
Hydraulic oil tank capacity
L
850
Gross vehicle mass
21
Gross weight
kg
45000
22
Front weight
kg
25000
23
Rear weight
kg
20000
Driving
24
Max. driving speed
km/h
36
25
Wheelbase
mm
3950
26
Treads
(Front / Rear)
mm
2605
27
Max. gradeability
%
75

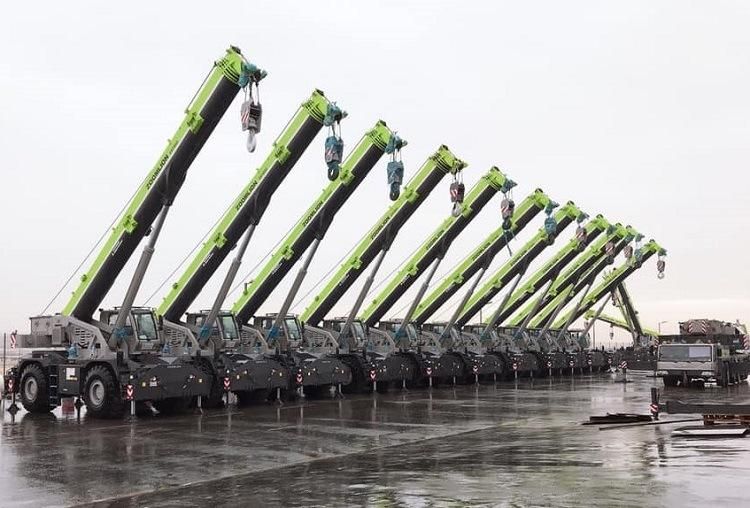

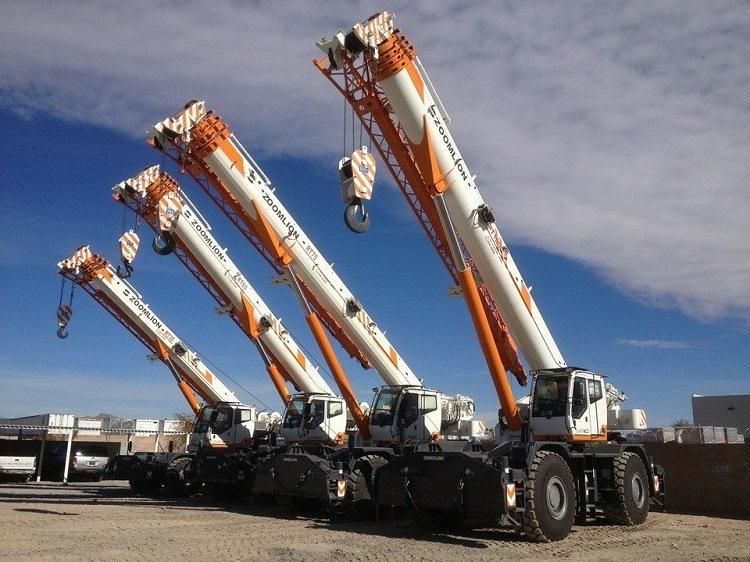

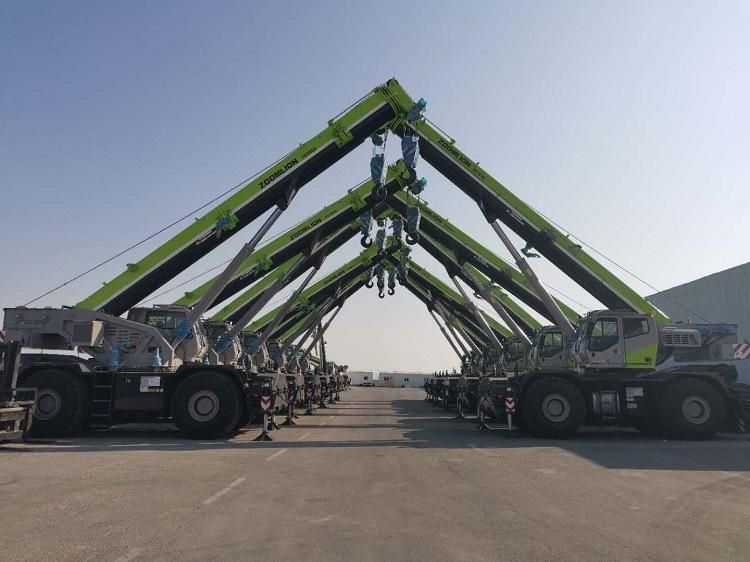

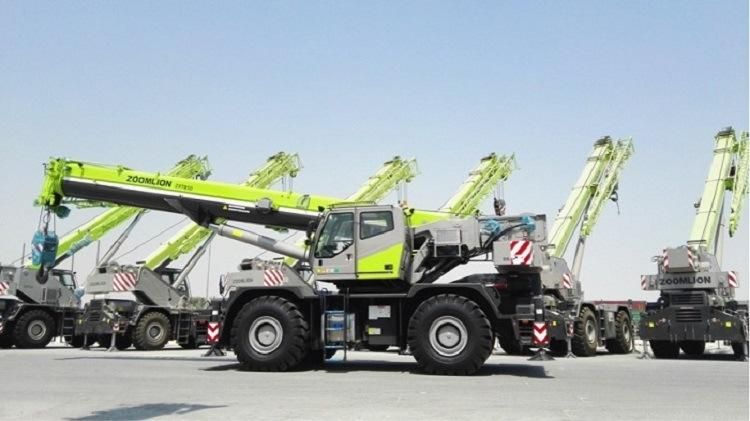

Product Pictures
