Narrow Place Use Lifting Machines Kb3.0 Mini Crawler Crane with 9.2m Lifting Capacity
Acntruck Automobile Sales (Shanghai) Co., Ltd.- Max. Lifting Height：9.2m
- Rated Loading Capacity：2.95t*1.3m
- Certification：ISO9001, CE
- Condition：New
- Warranty：1 Year
- Telescopic Boom Length：8.92m
Base Info
- Model NO.：KB3.0
- Rotation Speed：2.4rpm
- Travel Speed：0~2.0km,H
- Crawler Length*Width：1010mm*200mm*2
- Ground Pressure：51kpa
- Fuel Tank Capacity：6L
- Rated Output：6.6kw,2000rpm
- Starting Method：Electric
- Dimensions：2850*800*1500mm
- Weight：2050kg
- Transport Package：Nude Package, Suitable for Shipment
- Specification：2850*800*1500mm
- Trademark：Acntruck
- Origin：China
- HS Code：8429510000
- Production Capacity：100 Pieces,Month
Description
Model
KB3.0
Specification
2.95T×1.3m
Maximum working radius
8.3m×140kg
Max.lifting height
9.2m
Winch
Hook up speed
0-6.5m/min(4times)
Cable diameter×length
*8mm×45m
Telescopic
Boom form
5 Automatic
Boom length
8.92m
Boom telescopic length/time
6.4m/22sec
Up and downs
Hoist angle/time
0~75°/14sec
Rotation
Rotation angle/speed
360°continuous/2.4rpm
Outrigger
The form of out rigger
Extension and set up by direct acting hydraulic cylinders
Max extended dimensions
(Length)3800mm×(Front)3540mm
Traction system
Drive
Hydrautic motor driven,stepless speed changer
Travel speed
0~2.0km/h
Gradability
20°
Crawler length×width
1010mm×200mm×2
Ground pressure
51kpa
Engine
Model
HONDA GX390
Fuel/Fuel tank capacity
Gasoline/6L
Rated output
6.6kw/2000rpm
Starting method
Electric
Electric motor
Three-phase AC asynchronous motor
4KW(380V,50HZ)
Remote Control
The wireless remote controller,load display for transmitter
Safety Devices
Air level/moment limiter(Height limiter)/Alarm device/emergency stop button
Dimensions
Length×Width×Heigh
2850×800×1500mm
Weight
2050kg

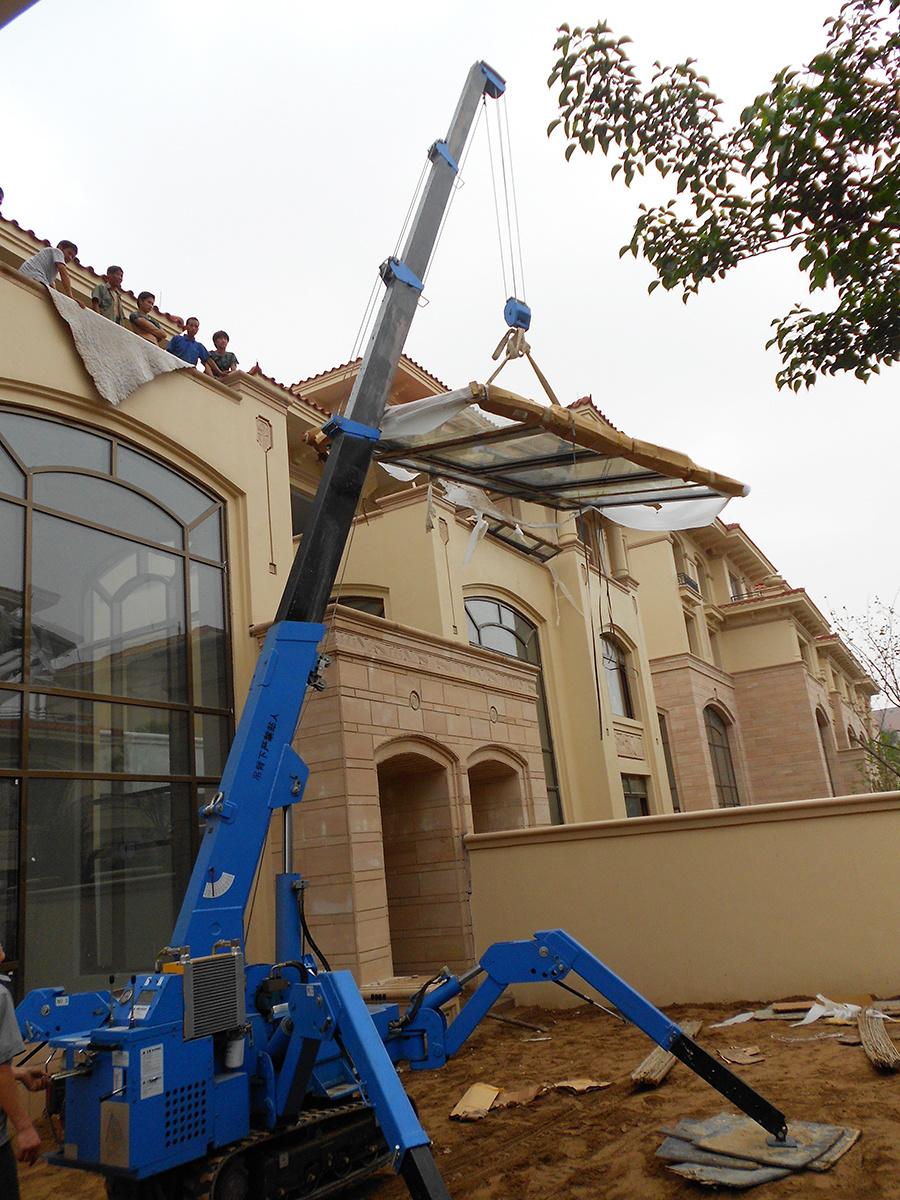

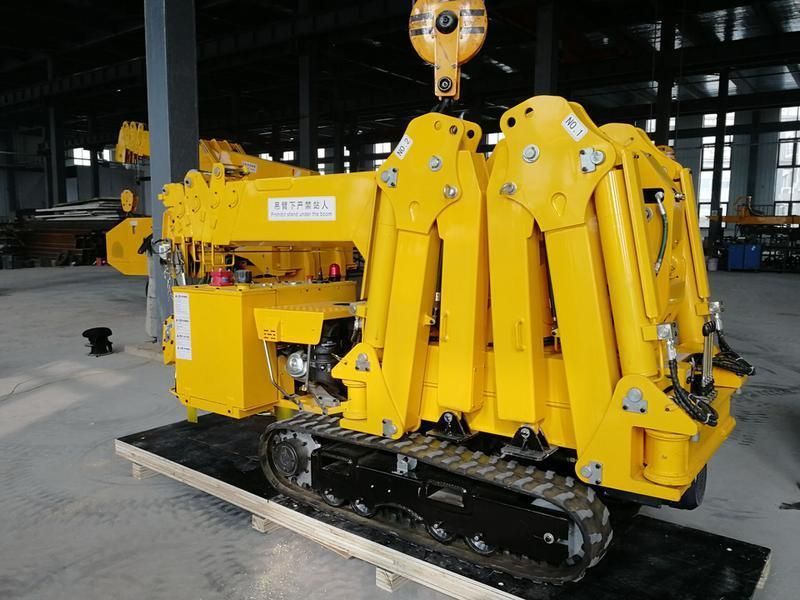

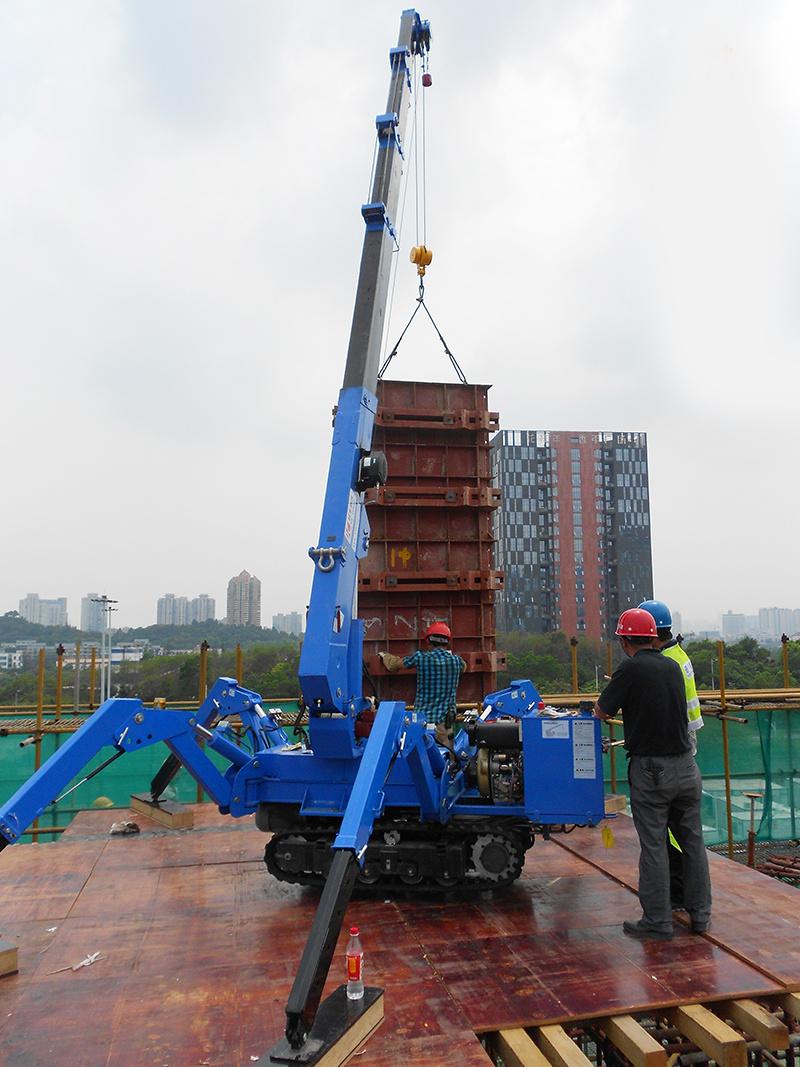

↓↓↓ Pictures about Product ↓↓↓

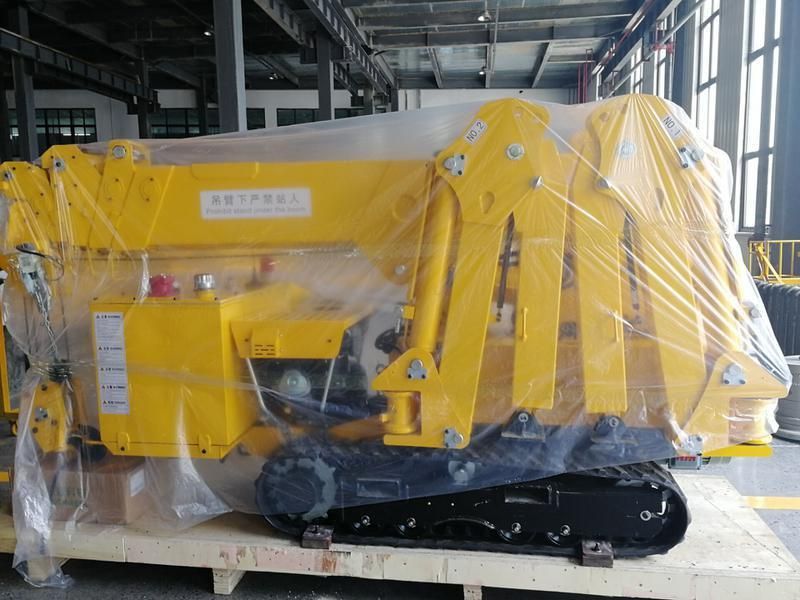

↓↓↓ Pictures about Package ↓↓↓
