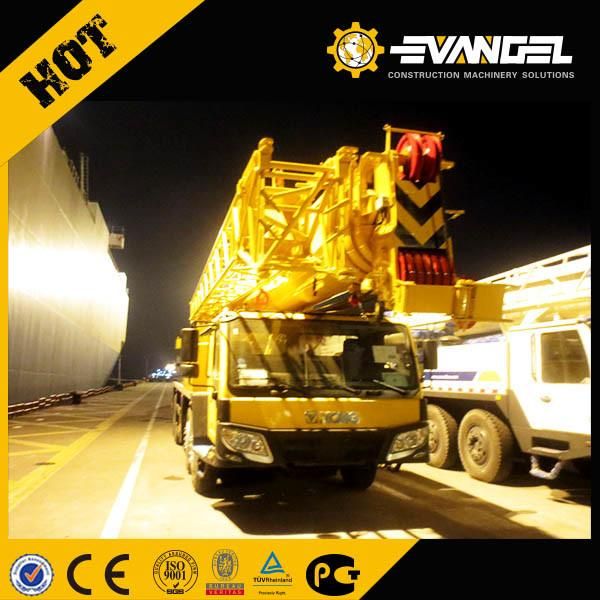

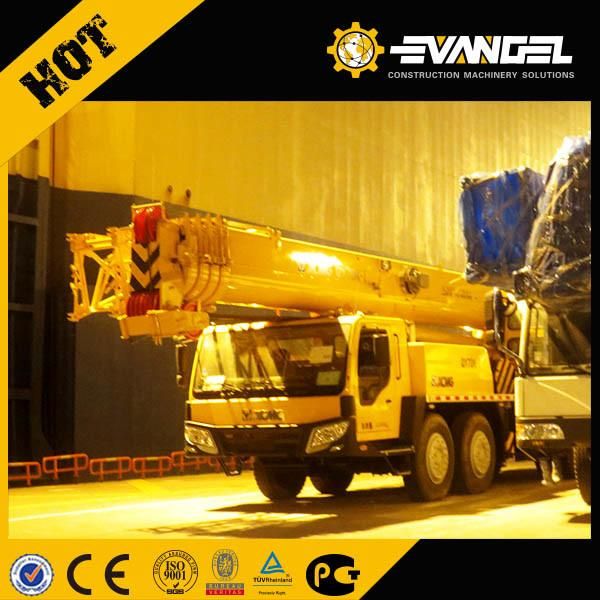

• Model NO.：QY50KA
• Type：Truck Crane
• Place of Origin：Xuzhou, Jiangsu, China
• Lifting Capacity：50t
• Max.Lifting Height：57.7m
• Engine Model：Wd615.334 Wd615.338 Wp10.336 Wp10.375
• Engine Rated Output(Kw/Rpm)：247,2200 276,2200 247,2200 275,2200
• Max.Travel Speed：80km,H
• Overall Dimensions：13770mm*2800*3570mm
• Dead Weight in Travel State：41000kg
• Power Source：Hydraulic
• Moving Type：Wheel
• Transport Package：Roro or Bulk Break Shipment
• Specification：EU 3
• Trademark：EVANGEL
• Origin：Jiangsu
• HS Code：87051091
• Production Capacity：100 Units Per Month

Item
Unit
Dimensions
Overall length
13770
mm
Overall width
2800
mm
Overall height
3570
mm
Weight
Dead weight in travel state
41000
Kg
1st axle load
7500
Kg
2nd axle load
7500
Kg
3rd axle load
13000
Kg
4th axle load
13000
Kg
Power
Engine model
WD615.334  WD615.338 WP10.336   WP10.375
Engine rated output
247/2200  276/2200  247/2200 275/2200
Kw(r/min)
Engine rated torque
1350(1300~1600) 1500(1300~1600) 1350(1100~1500) 1460(1200~1600)
N.m(r/min)
Travel
Max.travel speed
80
Km/h
Min.turning diameter
24
m
Min.ground clearance
291
mm
Approach angle
17
.
Departure angle
11
.
Max.gradeability
40
%
Fuel consumption of per 100km
42
L
Lifting performance
Max.total rated lifting load
50
t
Min. working radius
3
mm
Turning  radius at swing table tail
3482
m
Base boom max.load moment
1822
Kn.m
Base boom
11.3
m
Full- extended boom
42.7
m
Full-extended boom+ jib
57.7
m
Outrigger longitudinal distance span
5.91
m
Outrigger lareral distance span
6.9
m
Working speed
Boom elevating time
40
s
Boom telescoping time
80
s
Max. slewing speed
2
r/min
Main winch max. speed(no load)
130
m/min
Auxiliary winch max. speed(no load)
120
m/min
