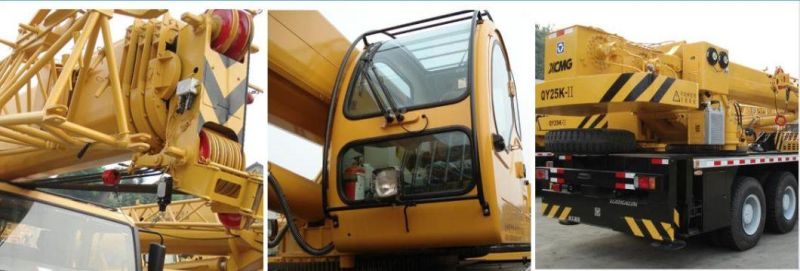

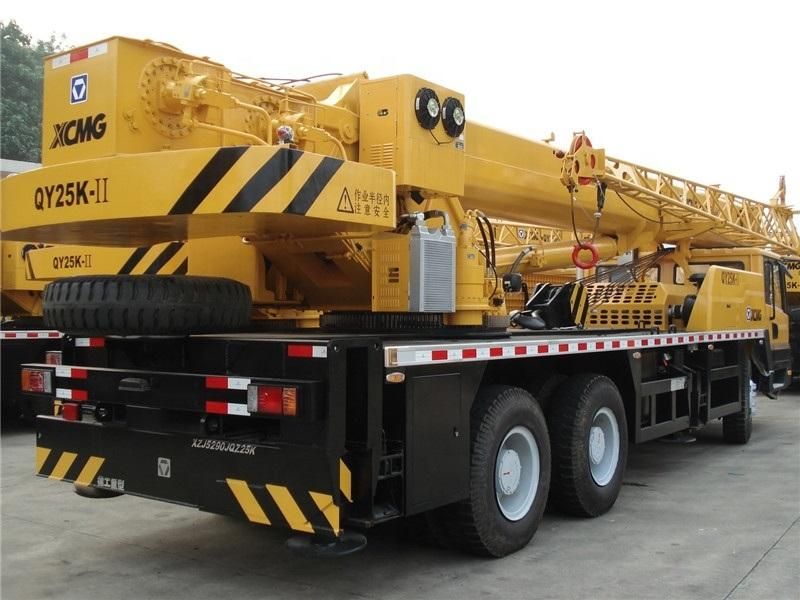

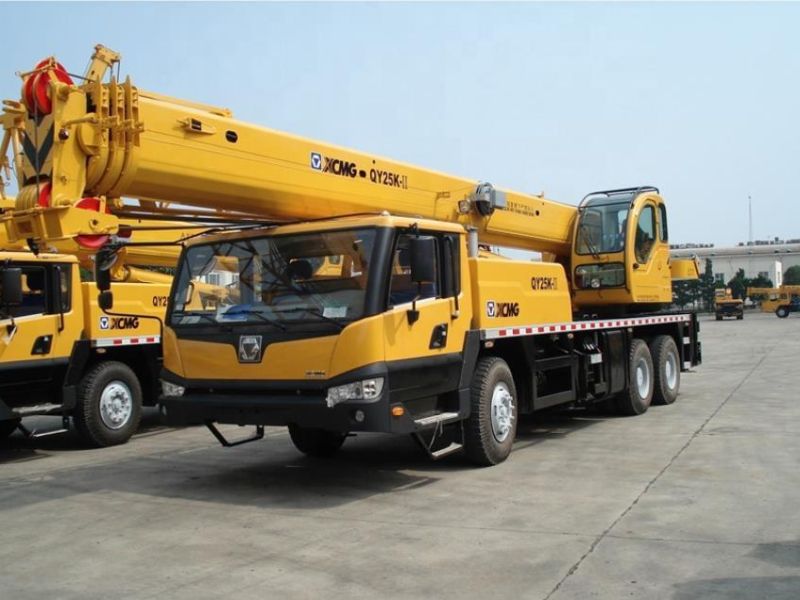

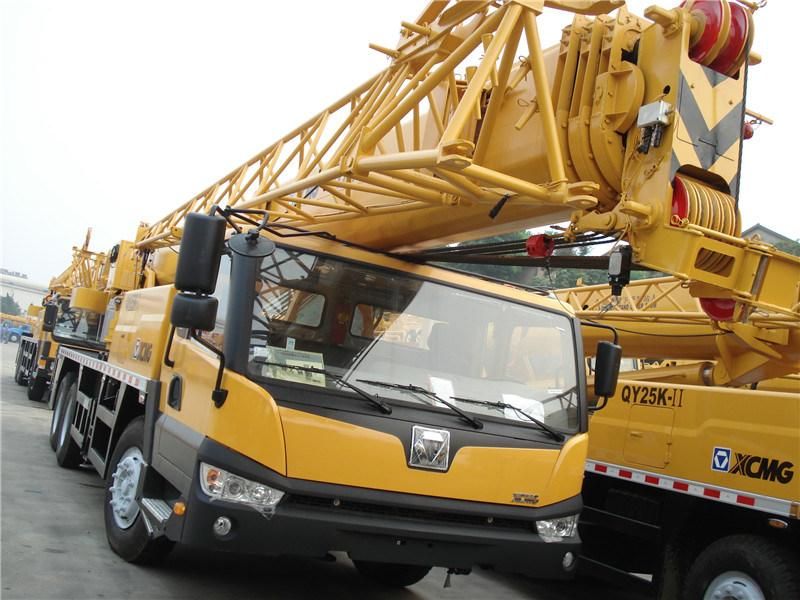

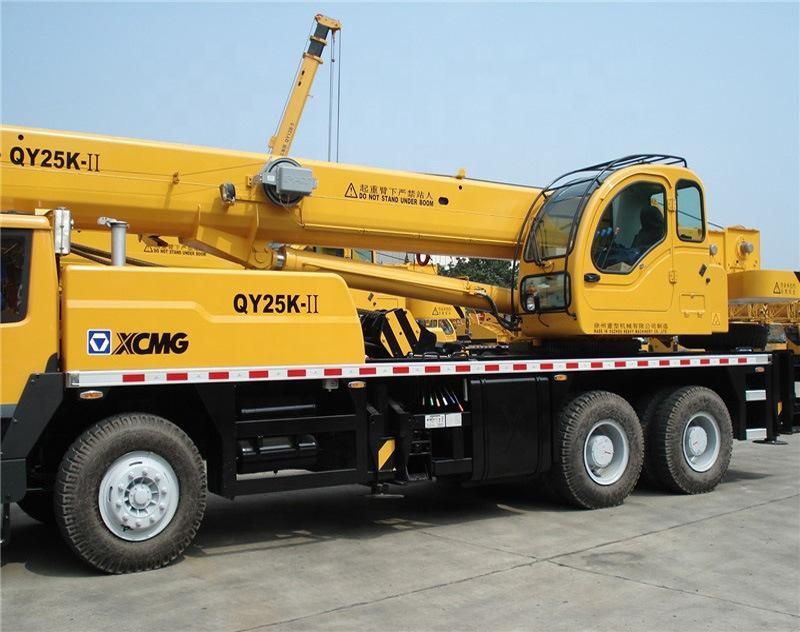

• Model NO.：QY25K-II
• Type：Straight Arm
• Total Length：12550mm
• Total Width：2500mm
• Total Height：3380mm
• Engine Power Ratings：206,2200kw(R,Min)
• Max. Grade Ability：30%
• Elevation Duration for Fully Extended Bo：100s
• Transport Package：Comply with Export Packaging Requirements
• Specification：12650X2500X3380mm
• Trademark：XCMG
• Origin：Jiangsu, China
• HS Code：87051022
• Production Capacity：10000

Item parametersUnitDimensionsTotal length12550mmTotal width2500mmTotal height3380mmWeightOperating Weight29400KgFront axle load  6200KgRear axle load23200KgPowerEngine modelSC8DK280Q3/WD615.329/6CL280-2 Engine power ratings206/2200/ 213/2200 206/2200Kw(r/min)Engine torque ratings1112/1400 1160/1400 1170/1400N.m(r/min)TravelMax.travel diameter75Km/hMin. turning diameter22mMin. ground clearance260mmApproach angle16.Departure angle13.Max. grade ability30%Fuel consumption of 100km37LDriving ParametersMax. total lifting capacity25tMin. working radius3000mmTurning  radius at swing table tail3.065mMax. lifting torque1000Kn.mBasic boom lifting length10.6mLongest boom lifting length with secondary arm41.15mLongest boom lifting length33mOutrigger longitudinal distance span5.14mOutrigger lateral distance span6m
 Working speedElevation duration for secondary boom75sElevation duration for fully extended boom 100sMax. rotation speed≥2.5r/minMax. speed for main winch≥120m/minMax. speed  for auxiliary  winch≥120m/min
