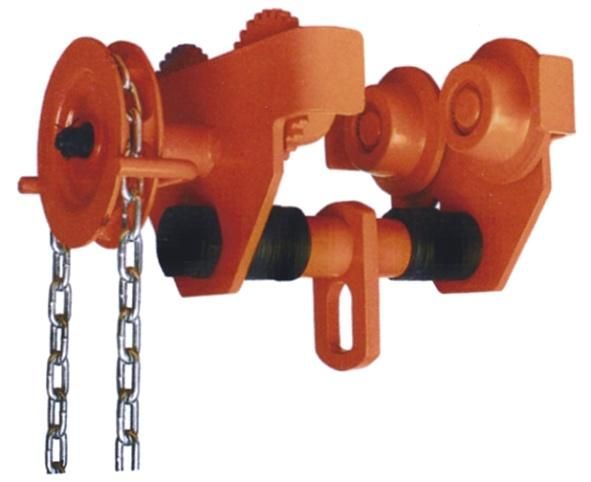

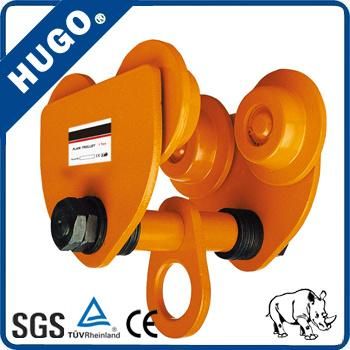

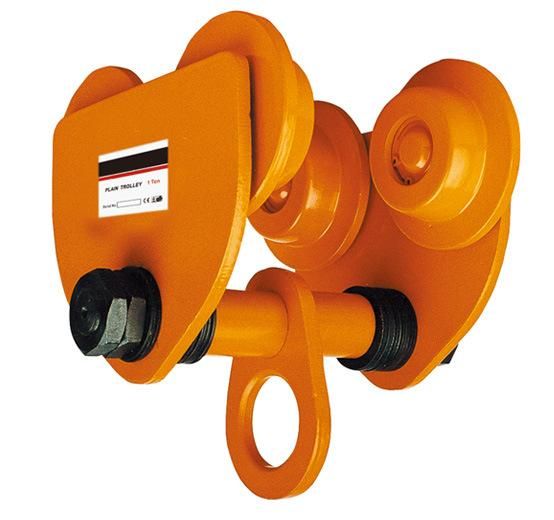

Small Size 2t Hand Pull Chain Trolley

Shanghai Yiying Crane Machinery Co., Ltd.
  • Certification：ISO9001: 2000, TUV, Ce
  • Condition：New
  • Operation Form：Crane Console
  • Maximum Lifting Weight：<20t
  • Name：Trolley
  • Lifting Type：Chain

Base Info

  • Model NO.：GCL
  • Power：Hand Chain
  • Structure：Geared Trolley
  • Adopt Type：Any Type Hoist
  • Color：Optional
  • Gear Protect：Optional
  • Warranty：2 Years
  • Loading Port：Shanghai, Tianjin, Qingdao
  • Min Radius Can Through：1.7m
  • Type：Trolley
  • Application：Coal Mine, Workshop Usage, Construction Usage
  • Sling Type：Chain
  • Power Source：Hand Chain
  • Transport Package：Carton
  • Specification：CE, ISO, SGS, TUV
  • Trademark：HUGO
  • Origin：Shanghai
  • Production Capacity：1000000 PC,Year

Description

                              The Parameters of Series of Series of Small Size 2T Hand Pull Chain Trolley ModelRated load(T)Test(KG)The Min curvature radius(M)Main Size(MM)I-Beam recommended(MM)ABCHFGCL-JA0.50.50.641208172190108375-100GCL-JA1114.711220206222122375-100GCL-JA2229.421.1260240267132390-140GCL-JA3344.131.32852793191813100-150GCL-JA5561.291.43383183842193125-175GCL-JA1010122.581.73623804902753125-180
Small Size 2t Hand Pull Chain Trolley
Small Size 2t Hand Pull Chain Trolley
Small Size 2t Hand Pull Chain Trolley
Small Size 2t Hand Pull Chain TrolleySmall Size 2t Hand Pull Chain Trolley
