100 Ton Heavy Truck Crane Qy100K-I with 5 Boom Section

Maxizm Construction Machinery (Qingdao) Co., Ltd.
  • After-sales Service：1 Year
  • Warranty：1 Year
  • Certification：GS, RoHS, CE, ISO9001
  • Condition：New
  • Maximum Lifting Height：>40m
  • Maximum Lifting Weight：>16t

Base Info

  • Model NO.：QY100K-I
  • Shaft Number：3
  • Crane Jib：Five-Arm
  • Type：Straight Arm
  • Engine Rated Output：360,1800 (306,1900)
  • Rated Loading Capacity：100
  • Max. Lifting Load：100
  • Max. Travel Speed：80 Km,H
  • Total Weight in Travel：54900 58000
  • Tower Crane Type：Under Slewing Cranes
  • Base Boom：10.3
  • Application：Construction Usage
  • Engine Model：ISO9001
  • Cabin：Cab-Over-Engine with Sleeping Berth
  • Gearbox：6 Gear Synchronizer Gearbox
  • Machine：Lifting Equipment 8 Tons
  • Delivery Time：30days After Deposit Payment
  • Wheel Base：Dongfeng:1810,1800FAW:1800,1740
  • Colour：Yellow
  • Transport Package：Nude
  • Specification：15600*3000*3850 mm
  • Trademark：Famous
  • Origin：China
  • Production Capacity：500pices,Year

Description

DimensionUnitQY100K-IOverall length, width, heightmm15600×3000×3850Wheel basemm1420+2420+1800+1420+1505Weight  Total weight in travelkg54900 58000Axle load  Axle 1kg7500 7500Axle 2kg7500 7500Axle 3kg8300 10000Axle 4kg12000 12500Axle 5kg12000 12500Axle 6kg7600 8000Power  Engine rated powerkW/(r/min)360/1800 (306/1900)Engine rated torqueN.m/(r/min)2200/1300 (2010/1200)Engine rated speedr/min1800 (1900)Min. ground clearancemm310Travel  Approach angle°20Departure angle°14Braking distance (at 30km/h)m≤10Max. grade ability%40Min. turning diameterm24Fuel consumption for 100kmL70Main performanceMax. rated total lifting capacitym100Min. rated working radius 3Turning radius at turntable tail  Counterweightmm4200Aux. winchmm4590Max. lifting torque 3450Base boomkN.m3450(4m×88t)Fully extended boomkN.m1950(24m×7.1t)Fully extended boom+ jibkN.m1230(19.2m×6t)Outrigger span (full extension)  Longitudinalm7.56Lateralm7.6Lifting height  Base boomm13.5Fully extended boomm50.9Fully extended boom+ jibm70.4Boom lengthm13.5Fully extended boomm51Fully extended boom+ jibm51+18.1+4Working speed  Jib setting angle°0,15,30Boom luffing times75Boom  Boom telescoping time  Full extensions160Max. swing speedr/min2Outrigger extension/retraction time  Outrigger beam in extension/retractions25/15Outrigger jack in extension/retractions45/25Lifting speed (single rope, layer 4)  Main winchm/min105Aux. winchm/min104

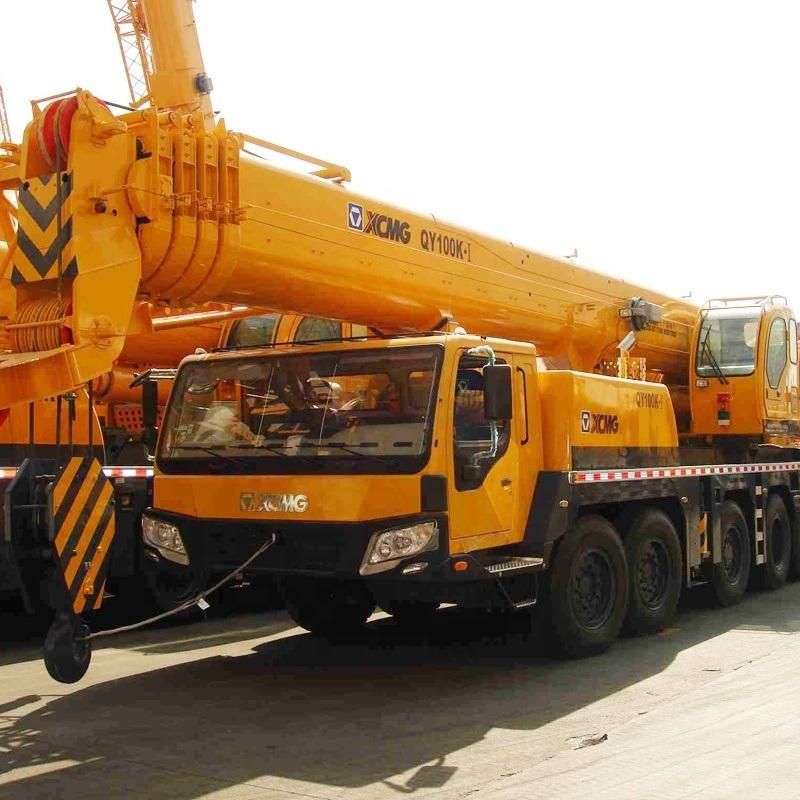

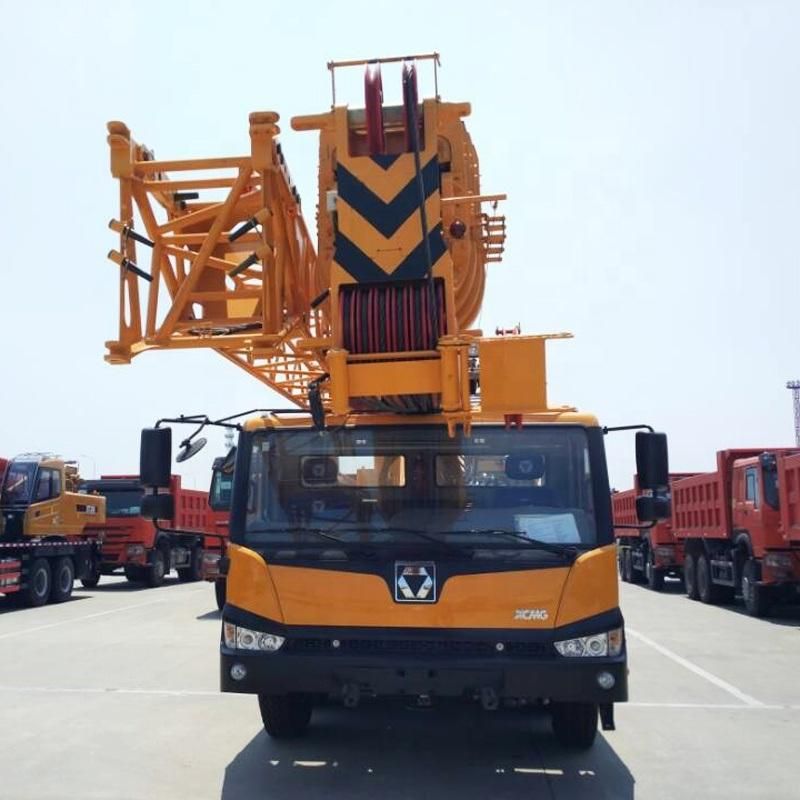

Detail Pictures100 Ton Heavy Truck Crane Qy100K-I with 5 Boom Section
