• Model NO.：SPK10000
• Shaft Number：2
• Crane Jib：Three-Arm
• Type：Folding
• Boom Length：12.4m
• Overall Weight：1.33t
• Max Hydraulic Outreach：12.4m
• Rated Lifting Moment：9.5t.M
• Max Lifting Height：15.8m
• Hydraulic Boom Extensions：4
• Slewing Torque：1.2mt
• Operating Pressure：31.5MPa
• Pump Capacity：30-45L,Min
• Slewing Angle：400
• Transport Package：Nude Package
• Specification：2314*810mm
• Trademark：CRUKING
• Origin：China
• HS Code：8701951010
• Production Capacity：5000sets,Year

Basic Info.

Model NO. SPK10000 Shaft Number 2 Crane Jib Three-Arm Type Folding Boom Length 12.4m Overall Weight 1.33t Max Hydraulic Outreach 12.4m Rated Lifting Moment 9.5t.M Max Lifting Height 15.8m Hydraulic Boom Extensions 4 Slewing Torque 1.2mt Operating Pressure 31.5MPa Pump Capacity 30-45L/Min Slewing Angle 400 Transport Package Nude Package Specification 2314*810mm Trademark CRUKING Origin China HS Code 8701951010 Production Capacity 5000sets/Year

Product Description

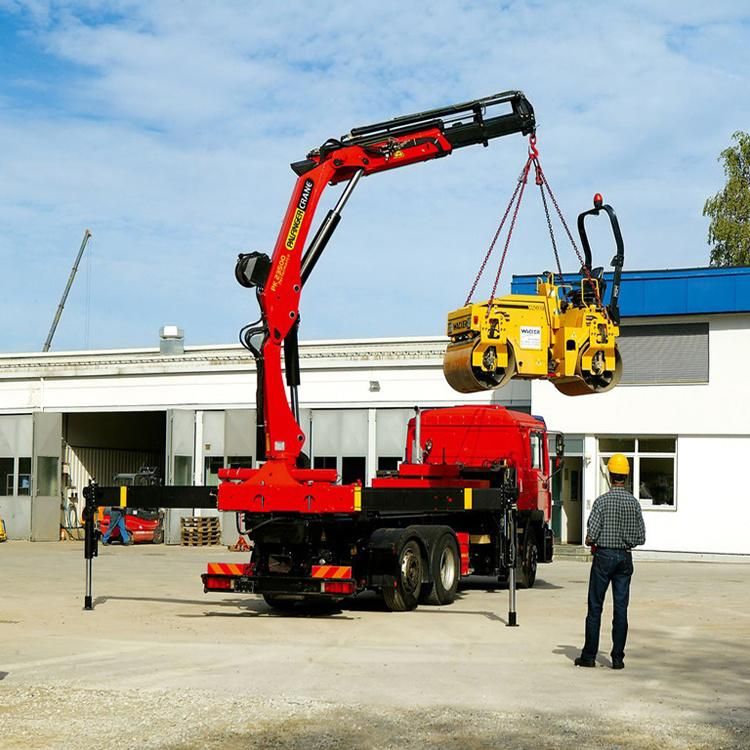

Brand New 5.7Ton Knuckle Boom Crane
Features
RADIO REMOTE CONTROL
1. Allows remote control of the crane
2. Provides the best possible overview of the loading process and ensures higher efficiency in the use

Main Parameters

	SPK6500	SPK8500	SPK10000	SPK12000	SPK15500
Max Lifting Capacity	3.3T	3.3T	5.7T	6.79T	6.2T
Boom Length	9.6m	9.6m	12.4 m	14.6m	14.5m
Overall Weight	0.881T	0.881T	1.33T	1.71T	2.029T
Max Hydraulic Outreach	9.6m	9.6m	12.4m	12.4m	12.4m
Max Outreach	9.6m	9.6m	12.4m	14.6m	14.5m
Rated Lifting Moment	5.8 t.m	7.6 t.m	9.5t.m	11.6t.m	14.6t.m
Max Lifting Height	12.8m	12.8m	15.8m	15.9m	15.9m
Hydraulic Boom Extensions	3/	3/	4/	4/	4/
Slewing Angle	400Ä/	400Ä/	400Ä/	420Ä/	420Ä/
Slewing Torque	0.7 mt/	0.9 mt/	1.2 mt/	1.4 mt/	1.4/
Operating Pressure	31.5 MPa/	31.5 MPa/	31.5 MPa/	30 MPa/	30 MPa/
Pump Capacity	20-30 l/min/	25-35 l/min/	30-45 l/min/	35-50 l/min/	40-60 l/min/

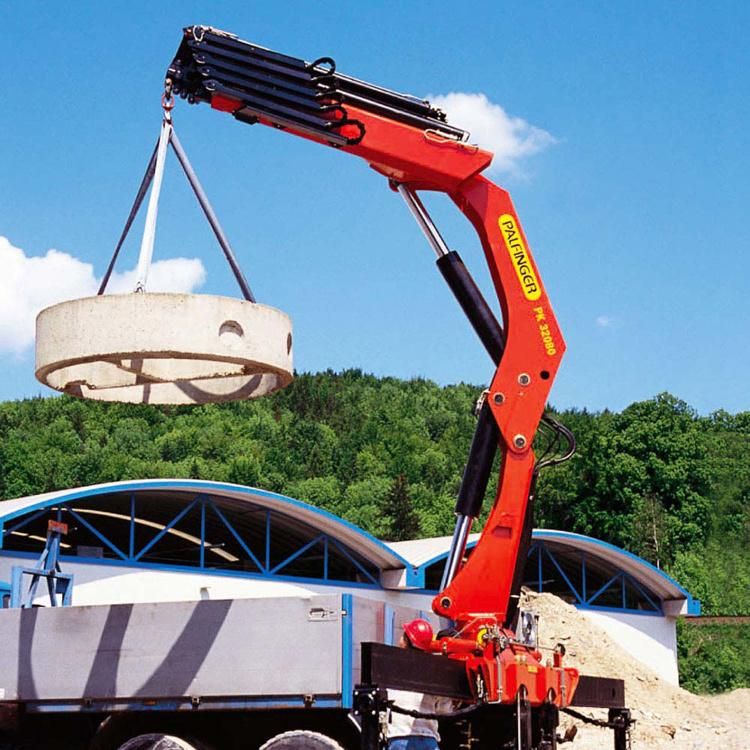

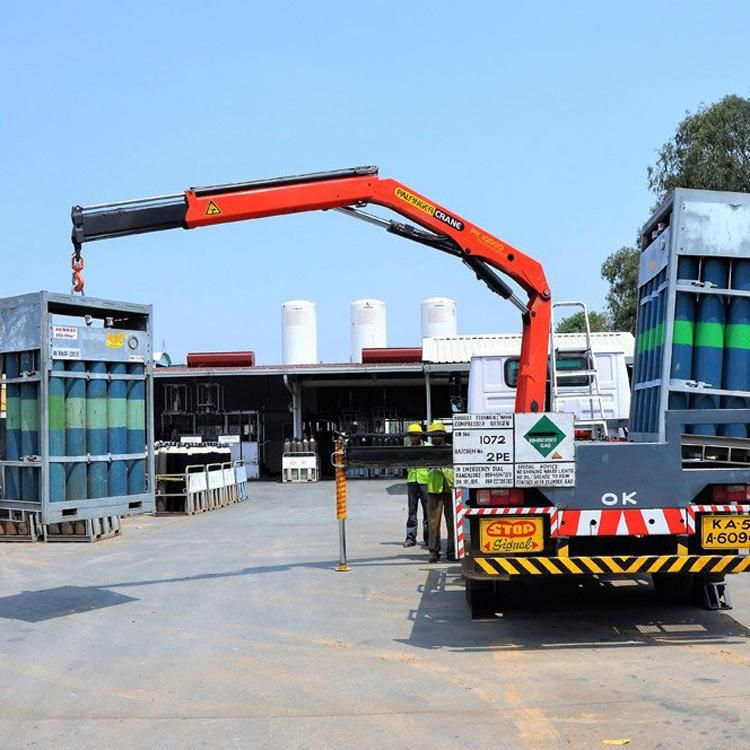

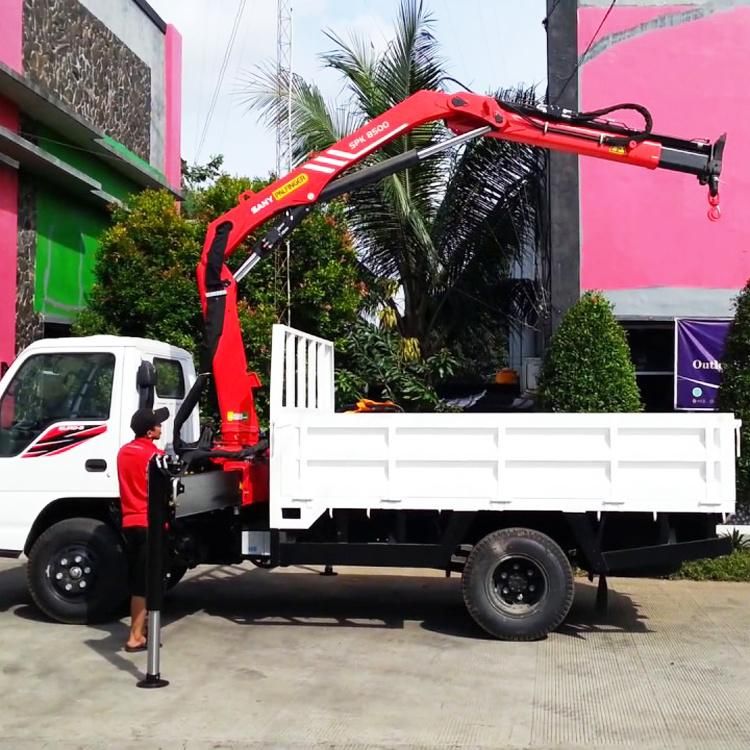

Detailed Photos
