• Model NO.：SPK23500
• Shaft Number：2
• Crane Jib：Four-Arm
• Type：Folding
• Boom Length：16.7m
• Overall Weight：2.65t
• Max Hydraulic Outreach：16.7m
• Rated Lifting Moment：23t.M
• Max Lifting Height：15.9m
• Hydraulic Boom Extensions：4
• Slewing Torque：2.8mt
• Operating Pressure：30 MPa
• Pump Capacity：50-75 L,Min
• Slewing Angle：400°
• Transport Package：Nude Package
• Specification：2314*810mm
• Trademark：CRUKING
• Origin：China
• HS Code：8701951010
• Production Capacity：5000sets,Year

Basic Info.

Model NO. SPK23500 Shaft Number 2 Crane Jib Four-Arm Type Folding Boom Length 16.7m Overall Weight 2.65t Max Hydraulic Outreach 16.7m Rated Lifting Moment 23t.M Max Lifting Height 15.9m Hydraulic Boom Extensions 4 Slewing Torque 2.8mt Operating Pressure 30 MPa Pump Capacity 50-75 L/Min Slewing Angle 400° Transport Package Nude Package Specification 2314*810mm Trademark CRUKING Origin China HS Code 8701951010 Production Capacity 5000sets/Year

Product Description

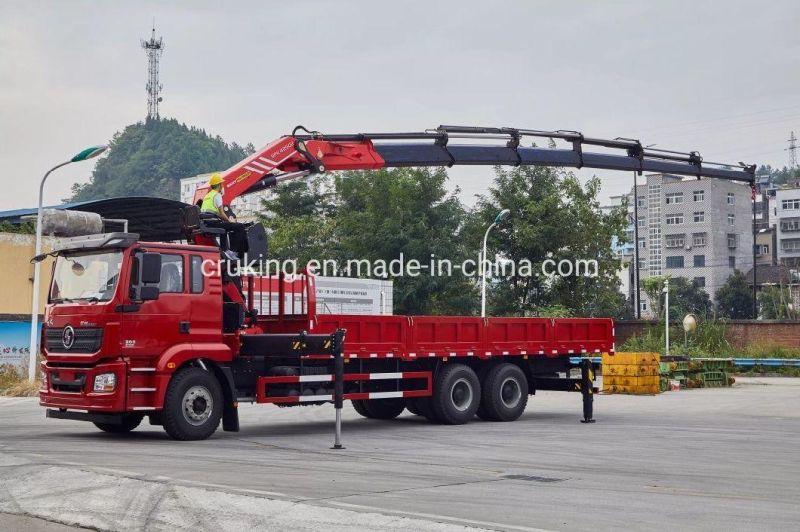

Brand New 10 Ton Knuckle Boom Crane
Features
RADIO REMOTE CONTROL
1. Allows remote control of the crane
2. Provides the best possible overview of the loading process and ensures higher efficiency in the use

Main Parameters

	SPK18500	SPK32080	SPK36080	SPK23500	SPK38502	SPK42502
Max Lifting Capacity	8T	8.5T	8.5T	10T	13T	14.34T
Boom Length	12.4m	12.1m	12.1m	16.7m	16.8m	16.8m
Overall Weight	2.374T	3.51T	3.513T	2.65T	4.9T	5T
Max Hydraulic Outreach	12.4m	12.1m	12.1m	16.7m	16.8m	16.8m
Max Outreach	12.4m	12.1m	12.1m	16.7m	16.8m	16.8m
Rated Lifting Moment	18.3t.m	30.4t.m	34.8 t.m	23t.m	38.2t.m	42.3t.m
Max Lifting Height	15.9m	16m	15.9m	15.9m	20.9m	20.8m
Hydraulic Boom Extensions	4	4	4	4	6	6
Slewing Angle	400°	400Ä	400°	400°	400°	400°
Slewing Torque	2.3 mt	3.8mt	3.8mt	2.8 mt	5.0 mt	5.0 mt
Operating Pressure	30 MPa	30 MPa	33 MPa	30 MPa	30 MPa	33 MPa
Pump Capacity	45-65 l/min	55-80 l/min	55-80 l/min	50-75 l/min	55-80 l/min	65-80 l/min

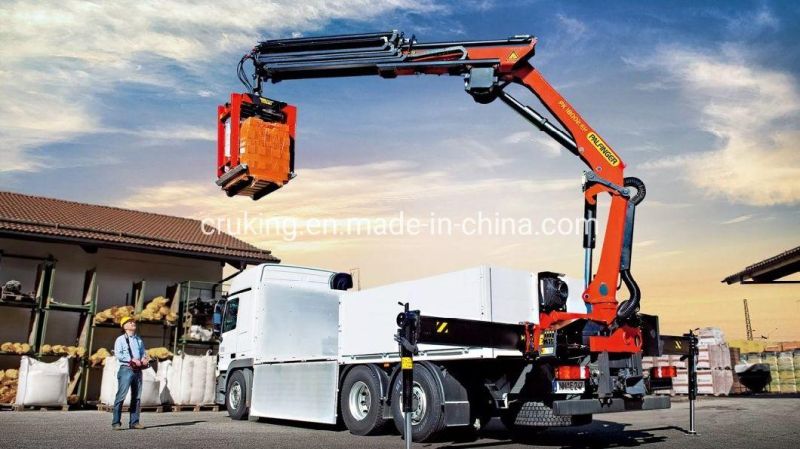

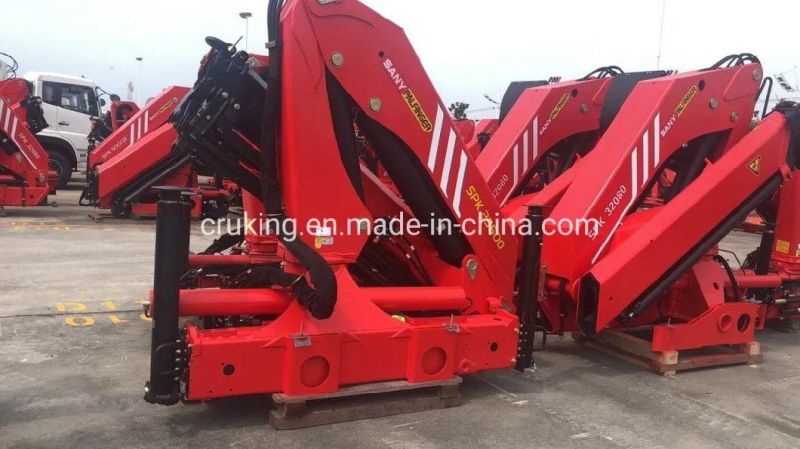

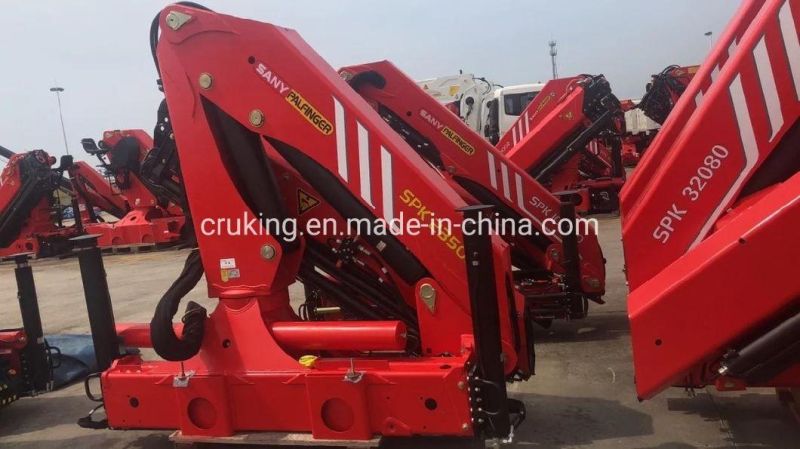

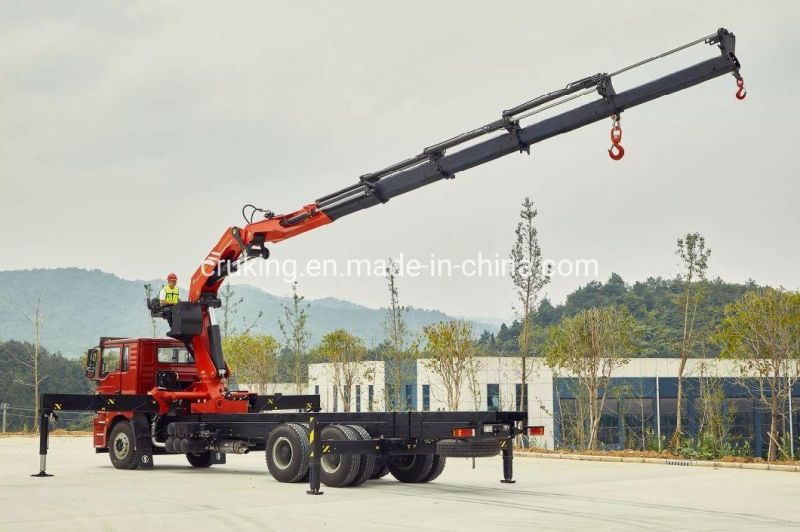

Detailed Photos
