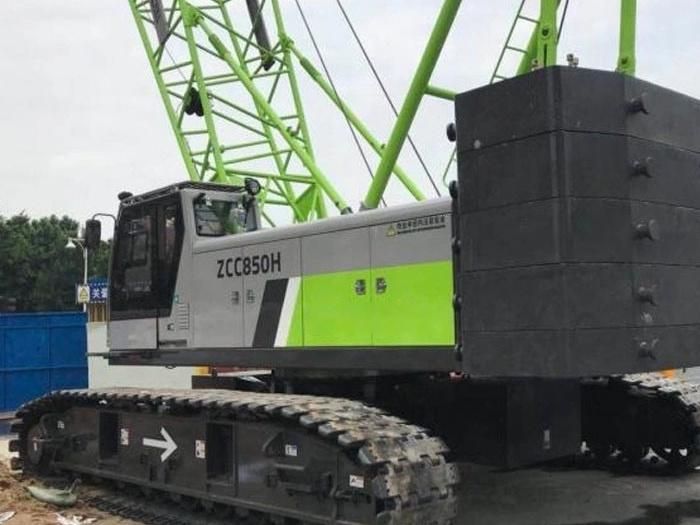

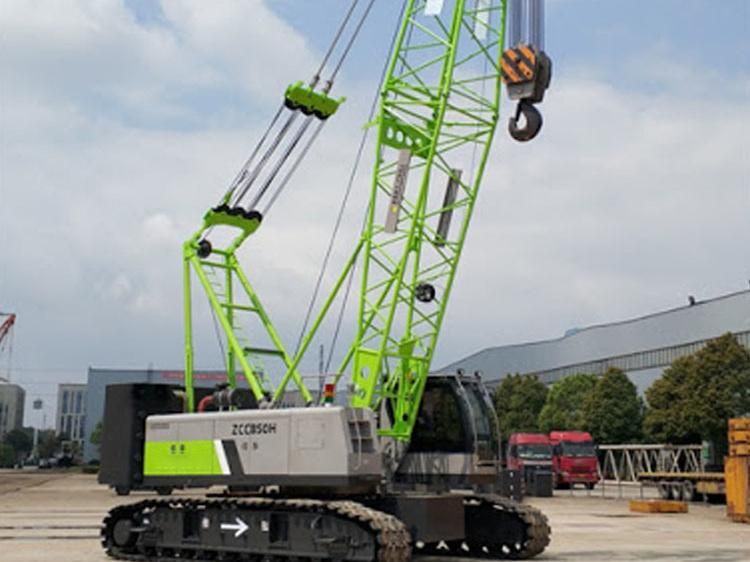

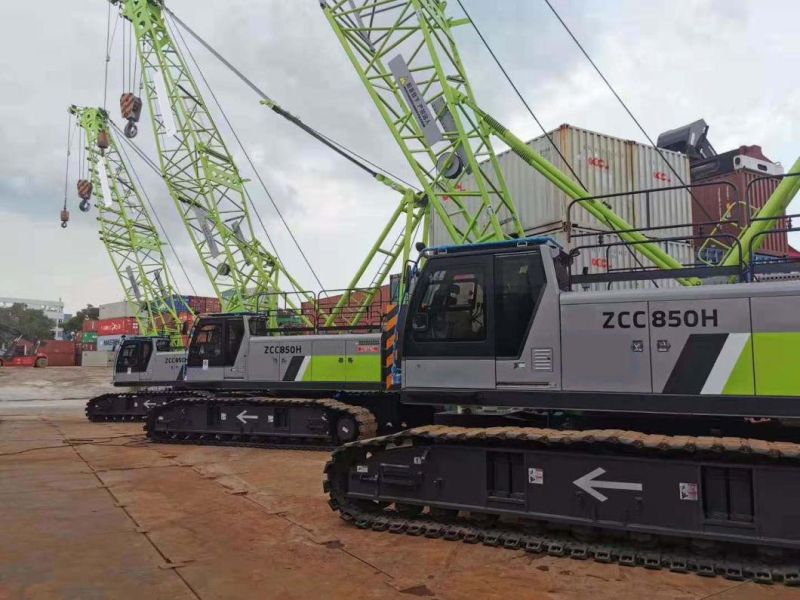

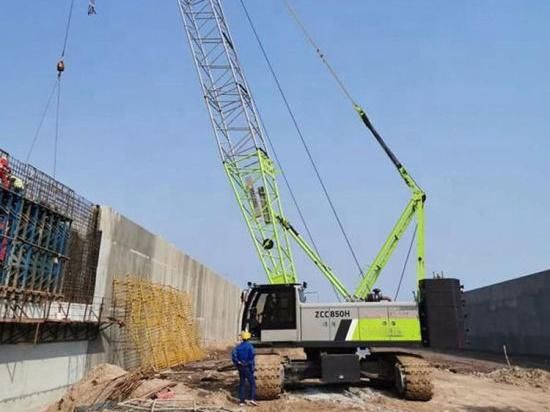

• Model NO.：ZCC850H
• Main Boom Length：13-58m
• Fixed Jib Length：6-18m
• Crane Counterweight：27t
• Transport Package：Nude
• Specification：CE, RoHS, SGS, GMP
• Origin：Hunan China
• Production Capacity：50, 000 PCS,Year.

ItemUnitZCC550H-1ZCC850HZCC1300QUY180ZCC2600Max. lifting capacity radiust * m55*3.780*4130 * 4.5180 * 5260 * 5Max. lifting capacity on fixed jibt5.57132234Max. lifting capacity of luffing jibt1215113.83873.5Main boom lengthm13 - 5213 - 5819-7320-83(Heavy duty boom),
86-92(Light duty boom)20-83(S-boom length),
86-95(SL-boom length)Fixed jib lengthm6-156-1813-3113-3112-30Max. length of main boom with fixed jibt43+1549+1855+31,58+25,61+1971+3177+30Luffing jib lengthm16m-28m16m-34m/24-5162+60Max. main boom +max.luffing jibm40m+28m43.5m+34m/56m+51m21-60Derricking angle.30 - 8030 - 80// Fixed jib angle.10,3010, 3010,3010,3010,30Max. rope speed of winchesHoisting winch 1m/min125/100125/110105110130Hoisting winch 212512593110120Derricking winch8093523080* 2Slewing speedrpm0-2.10-20-2.21.40-1.2Traveling speedkm/h0-1.60-1.570~1.31.20-1.0Max. gradeability%3030303030Ground pressureMpa0.0680.0830.10.10.115Deadweightt50.572.8/167210Crane counterweightt17.527//32EngineModel WP6G190E26WP10.270N///Rated power / rotational    speedkW/r/min140/1900199/1900209/2000227/2000227/2000Max. output torque /rotational    speedNm/r/min830/13001270/1200-15001424/14001505/14001505/1400Exhaust emission National StageIINational Stage IIU.S.EPA Tier 3

U.S.EPA Tier 3 and

EU Stage 3

U.S.EPA Tier 3 and

EU Stage III A

Distance between track
center * crawler contact length * crawler widthmm2540 *5000*7602600 *5440*8005600*6850*9006000*7750*1100/
