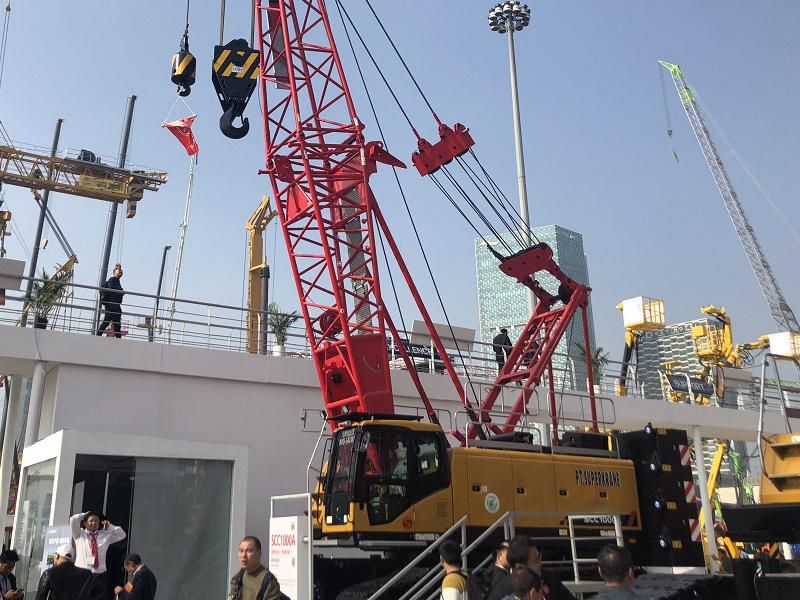

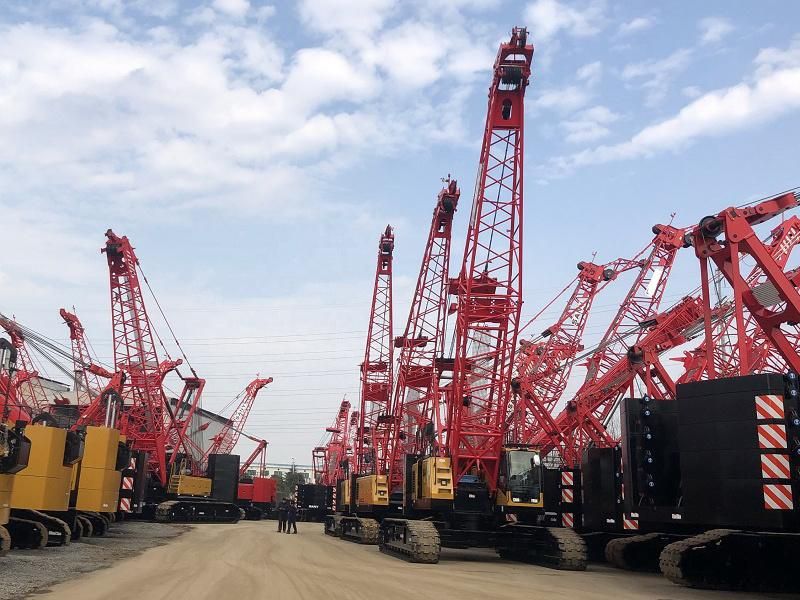

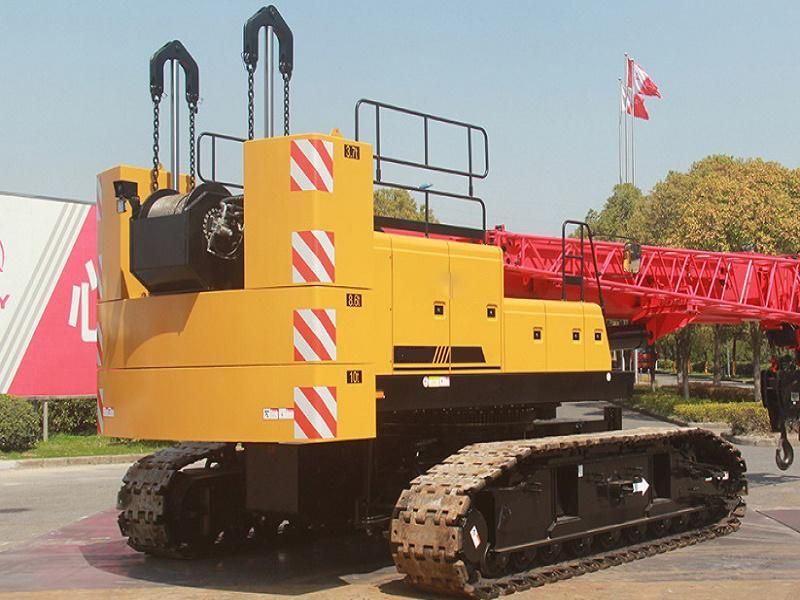

High Quality 500 Ton Crawler Crane Model Scc5000A for Sales

Evangel Industrial (Shanghai) Co., Ltd.
  • After-sales Service：1 Year
  • Max. Lifting Height：13-52m
  • Rated Loading Capacity：150ton
  • Certification：CE
  • Condition：New
  • Warranty：1 Year

Base Info

  • Model NO.：SCC5000A
  • Product Name：Crawler Crane
  • Max. Rated Lifting Load of Main Boom：500 Ton
  • Max. Rated Lifting Load of Fixed Jib：12ton
  • Transport Package：Nude Package
  • Specification：7.8*3.4*3.1
  • Trademark：Evangel
  • Origin：China
  • Production Capacity：100 Sets,Month

Description

Max. lifting capacity ×    radiust × m55×3.7Max. lifting capacity on    fixed jibt5.5Max. lifting capacity of    luffing jibt12Main boom lengthm13 - 52Fixed jib lengthm6 - 15Max. length of main boom    with fixed jibt43+15Luffing jib lengthm16m-28mMax. main boom +max.    luffing jibm40mm+28mmDerricking angle.30 - 80Fixed jib angle.10,30Max. rope  speed
     of winchesHoisting winch 1m/min125/100Hoisting winch 2125Derricking winch80Slewing speedrpm

0-2.1

Traveling speedkm/h0-1.6Max. gradeability%30Ground pressureMpa0.068Deadweightt50.5Crane counterweightt17.5Overall dimensions(L × W    × H)m12800×4600(3300)×3120EngineModel WP6G190E26Rated power / rotational    speedkW/r/min140/1900Max. output torque /rotational    speedNm/r/min830/1300Exhaust emission National StageDistance between track    center × crawler contact length × crawler widthmm2540 ×5000×7603840 ×5000×760NoiseNoise level outside    operator's cab during operation(dB)≤107Noise level in    operator's cab during operation≤85High Quality 500 Ton Crawler Crane Model Scc5000A for SalesHigh Quality 500 Ton Crawler Crane Model Scc5000A for SalesHigh Quality 500 Ton Crawler Crane Model Scc5000A for Sales
