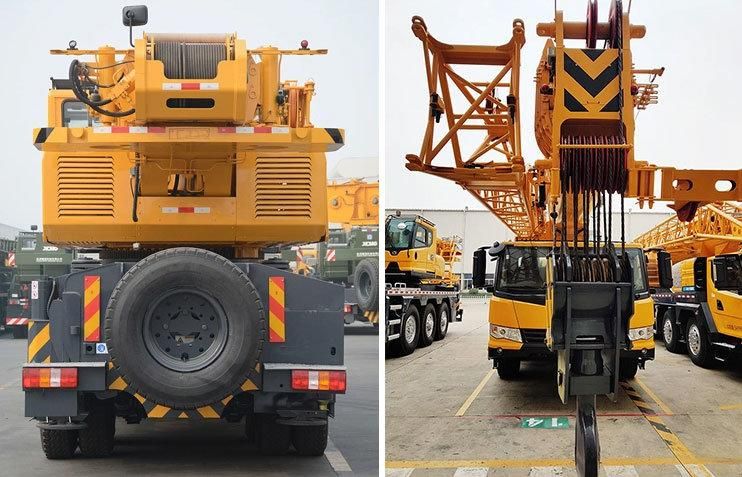

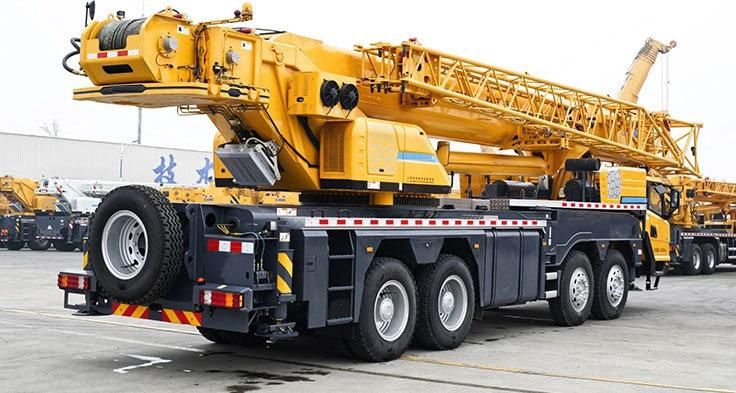

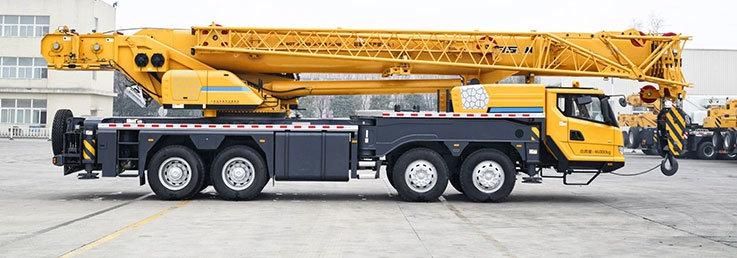

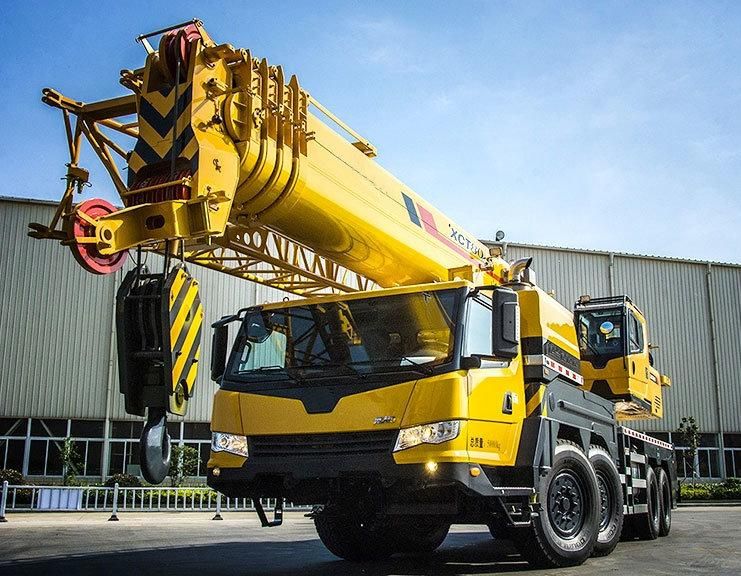

• Model NO.：Xct80
• Shaft Number：4
• Crane Jib：Four-Arm
• Type：Straight Arm
• Overall Length：14770mm
• Overall Width：2800mm
• Overall Height：3890mm
• Dead Weight in Travel State：49870kg
• Power Source：Hydraulic
• Sling Type：Wire Rope
• Transport Package：Container, RO-RO
• Specification：9180x2625x3420mm
• Trademark：Raygoo
• Origin：Fujian, China
• HS Code：87051022
• Production Capacity：5000

Overview Product ParametersDimensionsOverall length14770mmOverall width2800mmOverall height3890mmWeightDead weight in travel state 49870KgFront axle load   24000KgRear axle load26000KgPowerEngine modelWP12.35N MC11.39-30 Engine rated output276/1900  290/1900Kw(r/min)Engine rated torque1800(1000~1400) 1900(1000~1400)N.m(r/min)TravelMax.travel speed80Km/hMax. turning diameter24mMax. ground clearance371mmApproach angle17.Departure angle15.5.Max. grade ability40%Fuel consumption of 100km≤45LLifting  performanceMax. total rated lifting load80tMin. rated working radius3mTurning radius at swing table tail4670mmBase boom max. load moment3000Kn.mBase boom12.4mFull-extend boom47.5mFull-extend Boom+ Jib65mOutrigger longitudinal distance span8.075mOutrigger lateral distance span7.9m
 Working speedBoom  elevating  time70sBoom  elevating  time150sMax. slewing speed≤1.9r/minMain winch max. speed(no load)130m/min Auxiliary winch max. speed(no load)110m/min

Straight-arm crane is entirely from the hydraulic oil pressure, that is, through the high-pressure hydraulic oil to promote the cylinder piston reciprocating motion, or drive the hydraulic motor rotation makes the hydraulic winch and rotary mechanism rotation.

So, how do high-pressure hydraulic oil get? Each truck crane is equipped with a hydraulic pump when the vehicle chassis is matched, and the engine provides power for it. The chemical energy of the fuel can be converted into the crankshaft of the engine to rotate the mechanical energy, and then the gearbox gear is rotated, and then the power is transmitted to the hydraulic pump through the power transmission of the gearbox. Therefore, the hydraulic pump can continuously pressurize the hydraulic oil For the high-pressure hydraulic oil, so as to provide power for the crane to achieve the lifting of the goods.

Our machines advantages

Why choose RAYGOO GROUP

1. Quality assurance
2. Multi-currency payment ( RMB / USD / EUR) & Multi Payment team: T/T, L/C at sight....
3. Cheap shipment costs, Rich container package & Fast shipment:
Raygoo group cooperated with many shipping company many years, which can get the cheapest ocean freight with latest shipping date, even whole shipping tracking.

4. Long-term spare parts support:
Since 2015, in order to effectively solve our customers spare parts demand, we built a spare parts department, which get high speaking feedback from our clients.

5. Long-term technical service support:
We have a professional technical team which provide technical support for our domestic or oversea clients. If clients have some technical problems which can't deal with it by self, we can provide video support or door to door support.
6. Door and door service:
Till now, we can support door and door assembling service if they can't assemble it when container arrived in some countries,such as Philippines, Zimbabwe, Mozambique, Kenya, Cambodia, Indonesia.... If the quantity is large, even can provide engineer indoor support.


7. Rich brands:
As we worked on construction machines more than 15 years, which already build nice strategic relationship with world brand company for competitive price and quality.support

FAQ
1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC,
3: What about the delivery time?
A: 30 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs
