XCMG Newly Designed 55ton Hydraulic Truck Crane for Sale
Xuzhou Construction Machinery Group Import & Export Co., Ltd.- Certification：GS, CE, ISO9001:2000
- Condition：New
- Maximum Lifting Height：>40m
- Maximum Lifting Weight：55ton
- Type：Truck Crane
- Max. Travel Speed：90km,H
Base Info
- Model NO.：XCT55L5
- Min. Ground Clearance：303.5mm
- Engine Rated Power：268kw,1900rpm
- Min. Turning Diamete：24m
- Transport Package：Comply with Export Packaging Requirment
- Specification：13980*2550*3610mm
- Trademark：XCMG
- Origin：Xuzhou, Jiangsu, China
- HS Code：87059091
- Production Capacity：10000,Year
Description
DimensionUnit XCT55L5 Overall length mm 13980 Overall width mm 2550 Overall height mm 3610 Total weight in travel kg 44000 Engine model MC11.36-40/SC10E340Q4 Engine rated power kW/(r/min) 268/1900 251/1900 Engine rated torque N.m/(r/min) 1800/(1000~1400) 1550/1300 Max. travel speed km/h 90 Min. turning diameter m 24 Min. ground clearance mm 303.5 Departure angle ° 13 Max. grade ability % 45 Fuel consumption for 100km L 35 Max. rated total lifting capacity t 55 Min. rated working radius m 3 Turning radius at turntable tail m 3.845 Max. lifting torque kN.m 2033 Base boom m 11.9 Max.main boom m 44.5 Max.main boom+jib m 60.3

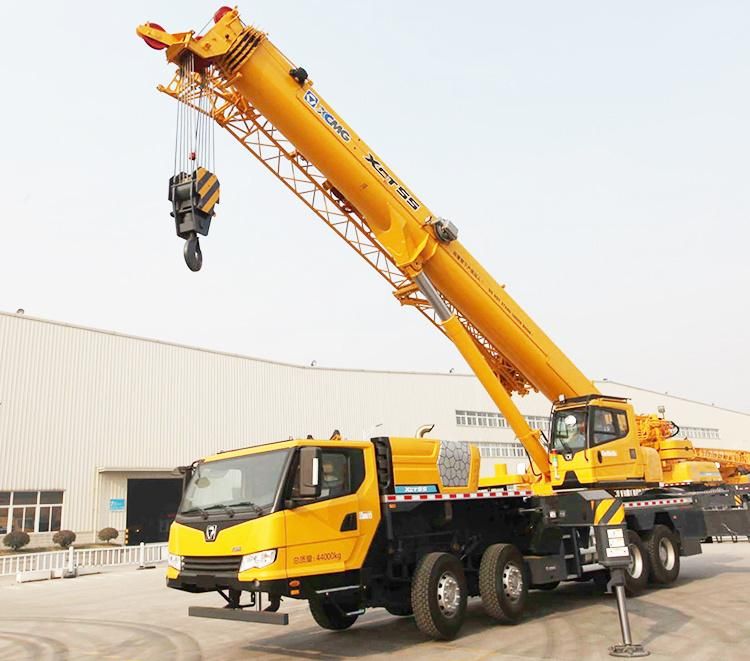

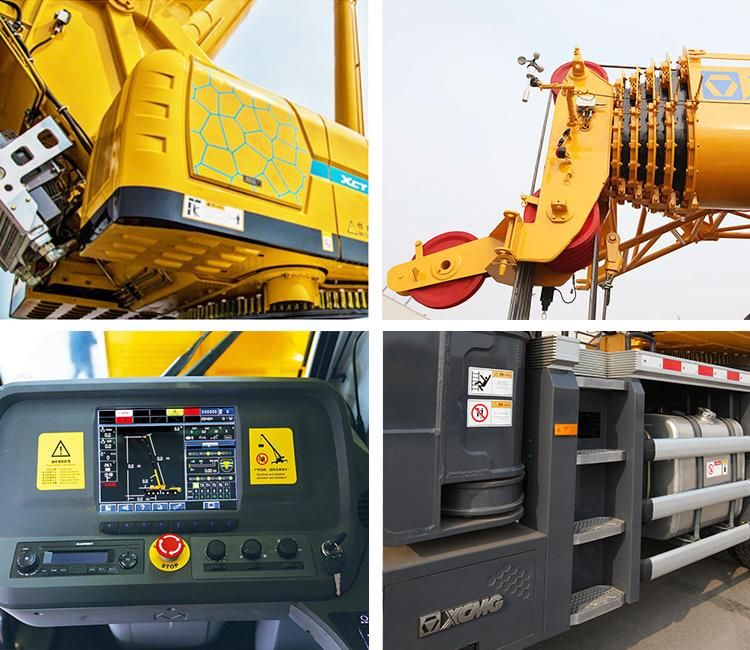

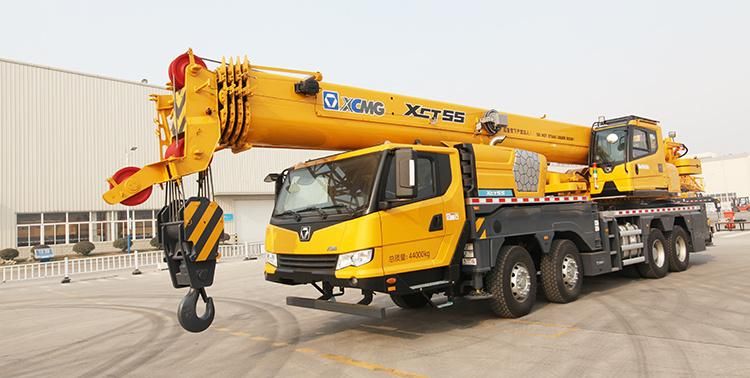

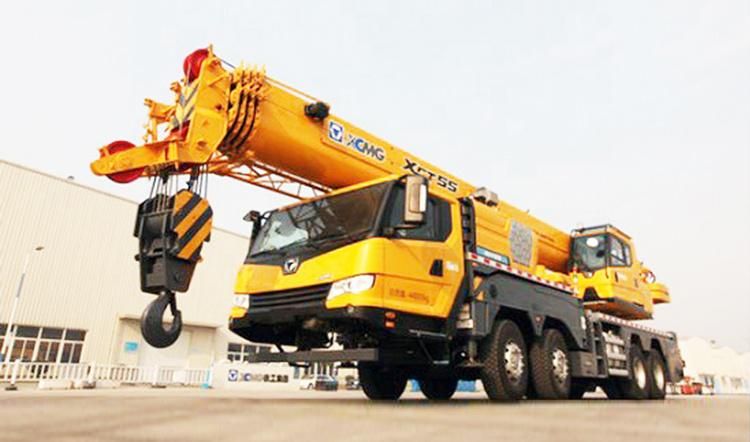

[Product Picture]
[Company Information]
[FAQ]
1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted.
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC.
3: What about the delivery time?
A: 7-30 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.
