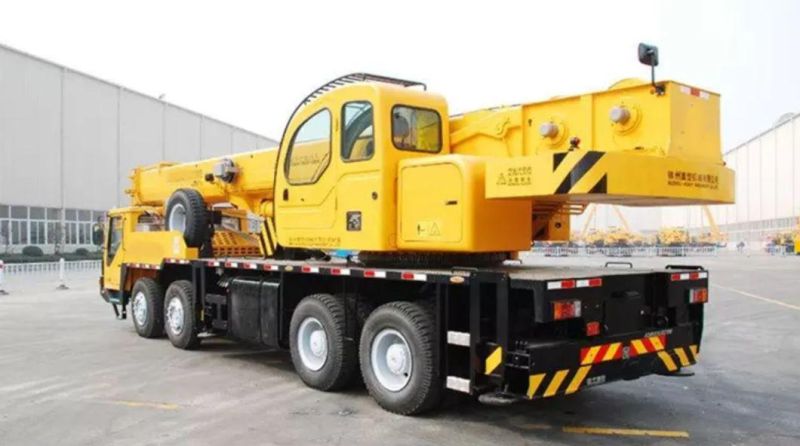

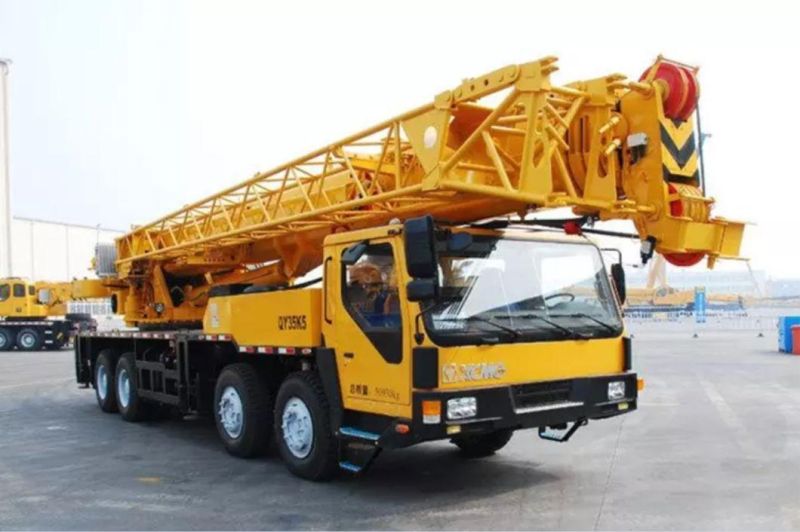

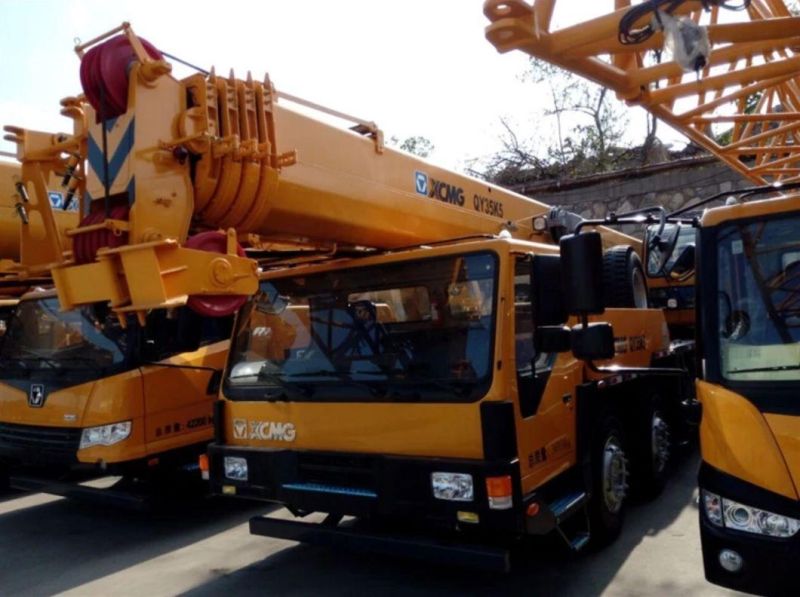

5 Boom Qy35K5 Mobiile Telescopic Boom Truck Crane
Oriemac Machinery & Equipment (Shanghai) Co., Ltd.- Certification:GS, RoHS, CE, ISO9001, ISO9001: 2000, GOST
- Condition:New
- Maximum Lifting Height:54.6m
- Maximum Lifting Weight:35ton
- Shaft Number:3
- Crane Jib:5 Arms + 2 Jib
Base Info
- Model NO.:Qy35k5
- Type:Straight Arm
- Base Boom:10.5m
- Transport Package:Nude Package, Roro
- Specification:CE, ISO
- Trademark:oriemac
- Origin:Jiangsu, China
- HS Code:84295100
- Production Capacity:500 Sets,Month
Description
Basic Info.
Model NO. Qy35k5 Type Straight Arm Base Boom 10.5m Transport Package Nude Package, Roro Specification CE, ISO Trademark oriemac Origin Jiangsu, China HS Code 84295100 Production Capacity 500 Sets/MonthProduct Description
5 Boom Qy35k5 Mobiile Telescopic Boom Truck CraneContact person: Betty Wsap/Tel/Wecht:+86 182 2104 5926 |
Web: http://oriemac.en.made-in-china.com |
Alibaba: https://oriemac.en.made-in-china.com |
Made-in-China: http://oriemac.en.made-in-china.com/ |
Facebook: oriemac.en.made-in-china.com |
Dimension | Unit | QY35K5 |
Overall length | mm | 12620 |
Overall width | mm | 2500 |
Overall height | mm | 3350 |
Weight | ||
Total weight in travel | kg | 36930 |
Front axle load | kg | 12330 |
Rear axle load | kg | 24600 |
Power | ||
Engine model | SC9DK320Q3 | |
Engine rated power | kW/(r/min) | 235 / 2200 |
Engine rated torque | N.m/(r/min) | 1250 / 1400 |
Travel | ||
Max. travel speed | km/h | 75 |
Min. turning diameter | m | 19.5 |
Min. ground clearance | mm | 260 |
Approach angle | ° | 17 |
Departure angle | ° | 15.7 |
Max. grade ability | % | 40 |
Fuel consumption for 100km | L | 30 |
Main performance | ||
Max. rated total lifting capacity | t | 35 |
Min. rated working radius | mm | 3000 |
Turning radius at turntable tail | m | 3.055 |
Max. lifting torque | kN.m | 1200 |
Base boom | m | 10.5 |
Fully extended boom | m | 39.6 |
Fully extended boom+ jib | m | 54.6 |
Longitudinal outrigger span | m | 5.35 |
Lateral outrigger span | m | 6 |
Working speed | ||
Boom luffing time | s | 68 |
Boom full extension time | s | ≤155 |
Max. swing speed | r/min | ≥2.5 |
Max. speed of main winch (single rope) | m/min | ≥130 |
Max. speed of aux. winch (single rope) | m/min | ≥130 |
